Verified product model

YXC-LB1260

12 × 60W Multi-Head LED Effect

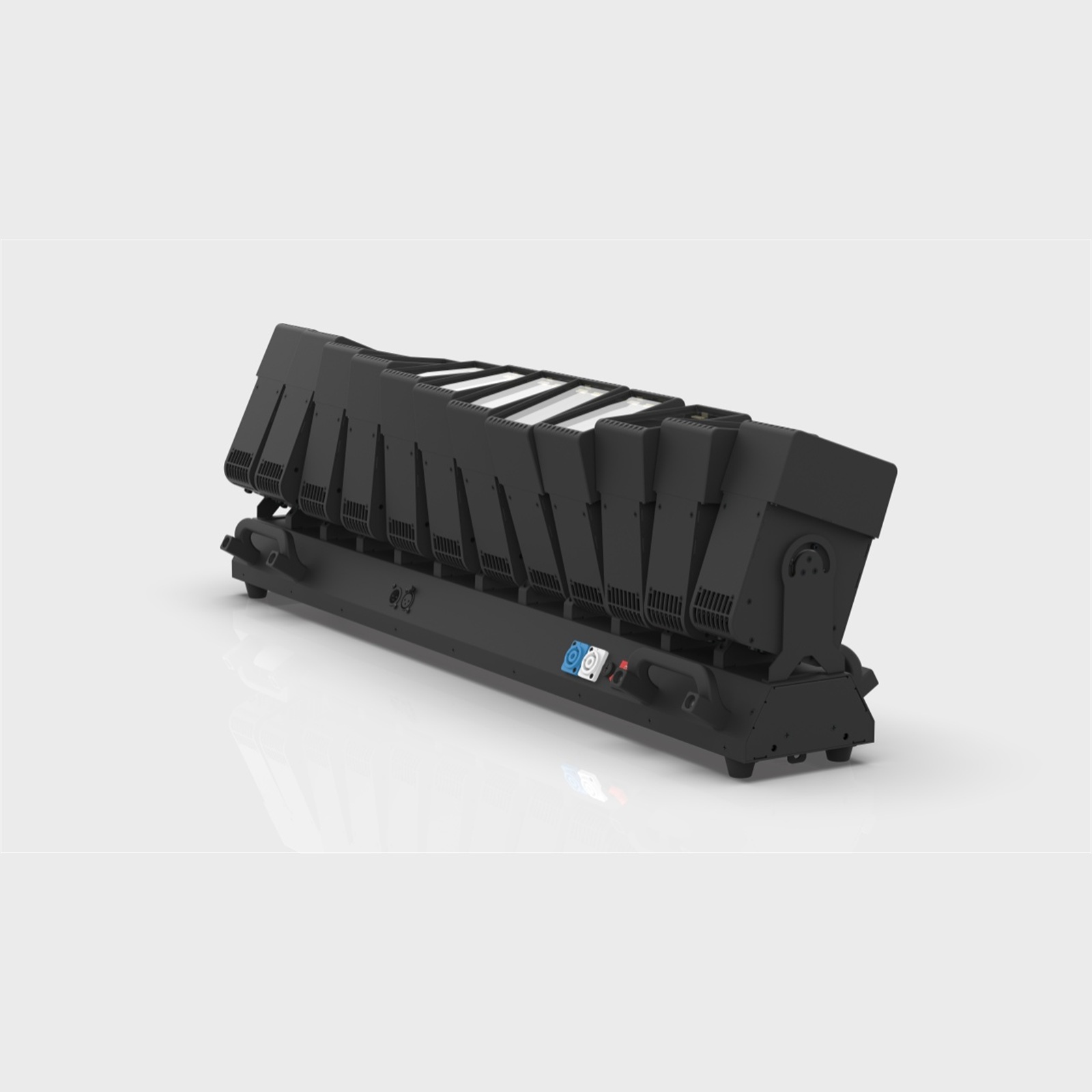

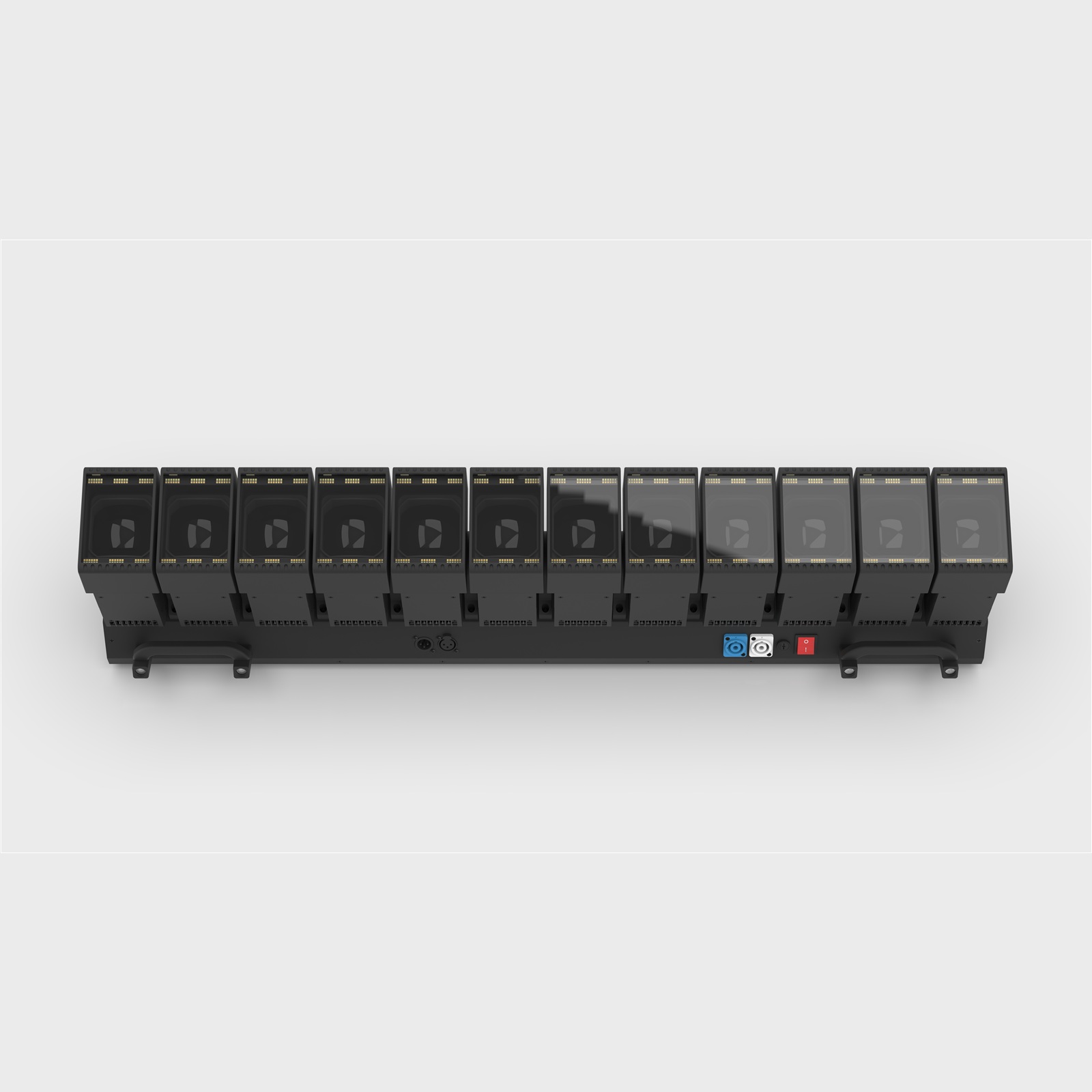

Name: 12x60W Multi-Head LED Effect Light with Auxiliary Light YXC-LB1260
Brand: Lucky Star
SKU: YXC-LB1260

Auxiliary Light YXC-LB1260

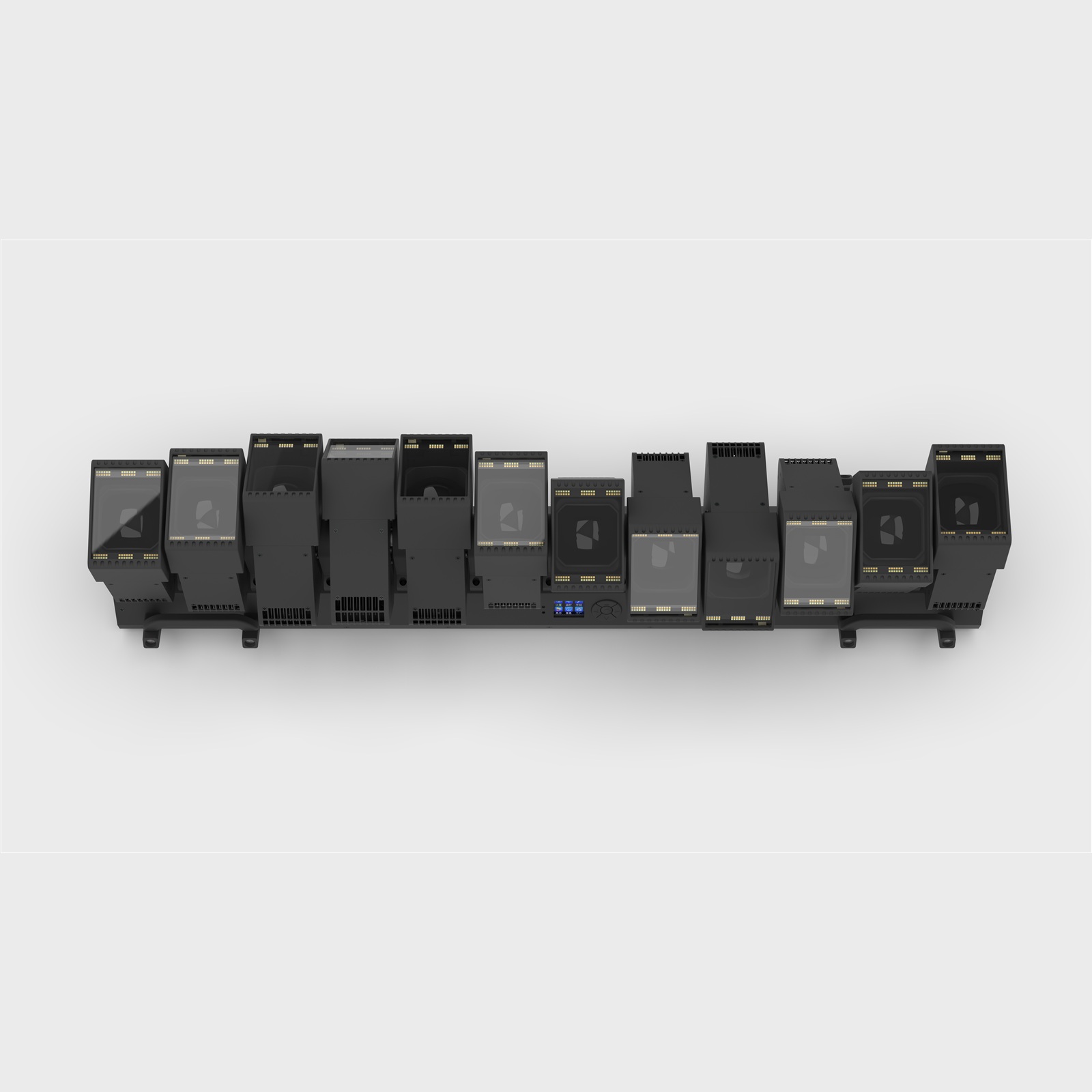

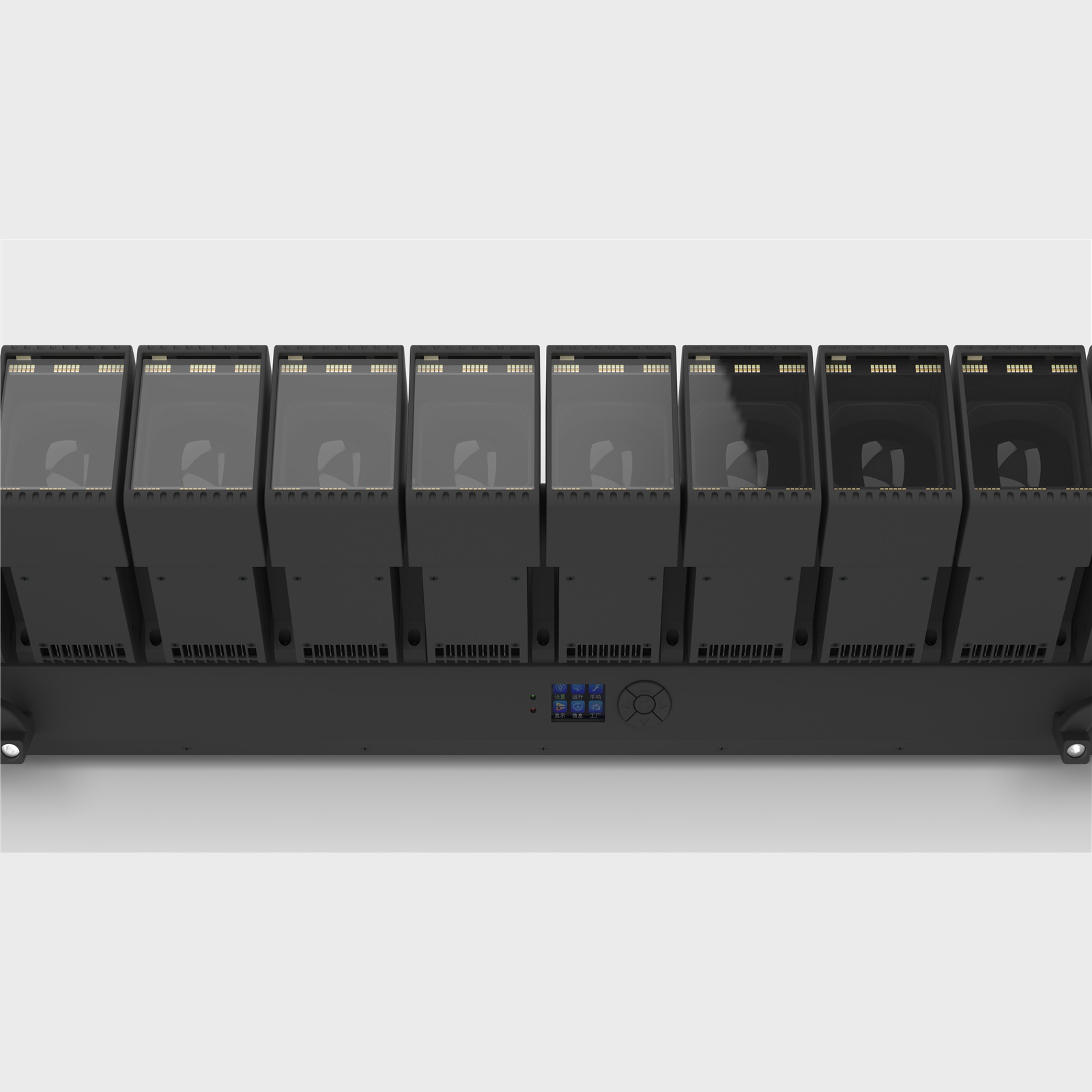

The YXC-LB1260 is a multi-head LED stage effect light featuring 12 independent moving heads, combining beam, wash, and auxiliary lighting for dynamic multi-directional visual effects. Ideal for rental companies, lighting contractors, event planners, and nightlife venues.

BUILT FOR

Concert stagesFestivalsTouring productionsTheatresClubs and barsCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDF12x60W_Effect_Light_Specification.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-LB126012x60W Multi-Head LED Effect Light with Auxiliary Light YXC-LB1260

CURRENT PRODUCTProduct demonstration

Specifications

Input VoltageAC100–240V, 50/60Hz

Power800W total; 12 × 60W main LEDs

Light Sources12 × 60W RGBW 4-in-1 LEDs, 432 × 2015 golden-yellow LEDs, and 432 × 2015 cool-white LEDs

Control ModesDMX512, Auto Run, Master/Slave, Sound Activation, and RDM

DMX Channels29 / 62 / 170 / 254 / 308 / 332 CH

Dimming32-bit, 0–100% linear dimming

EffectsIndependent LED head movement, wash, and beam effects

Operating Temperature-30°C to +50°C

Strobe Frequency1–30Hz

HousingBlack metal

ConnectionsDMX512 input/output and power input/output

IP RatingIP20

Dimensions1000 × 300 × 165 mm

Net Weight26.5 kg

Packing Dimensions112 × 39 × 27 cm

Gross Weight29.55 kg

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

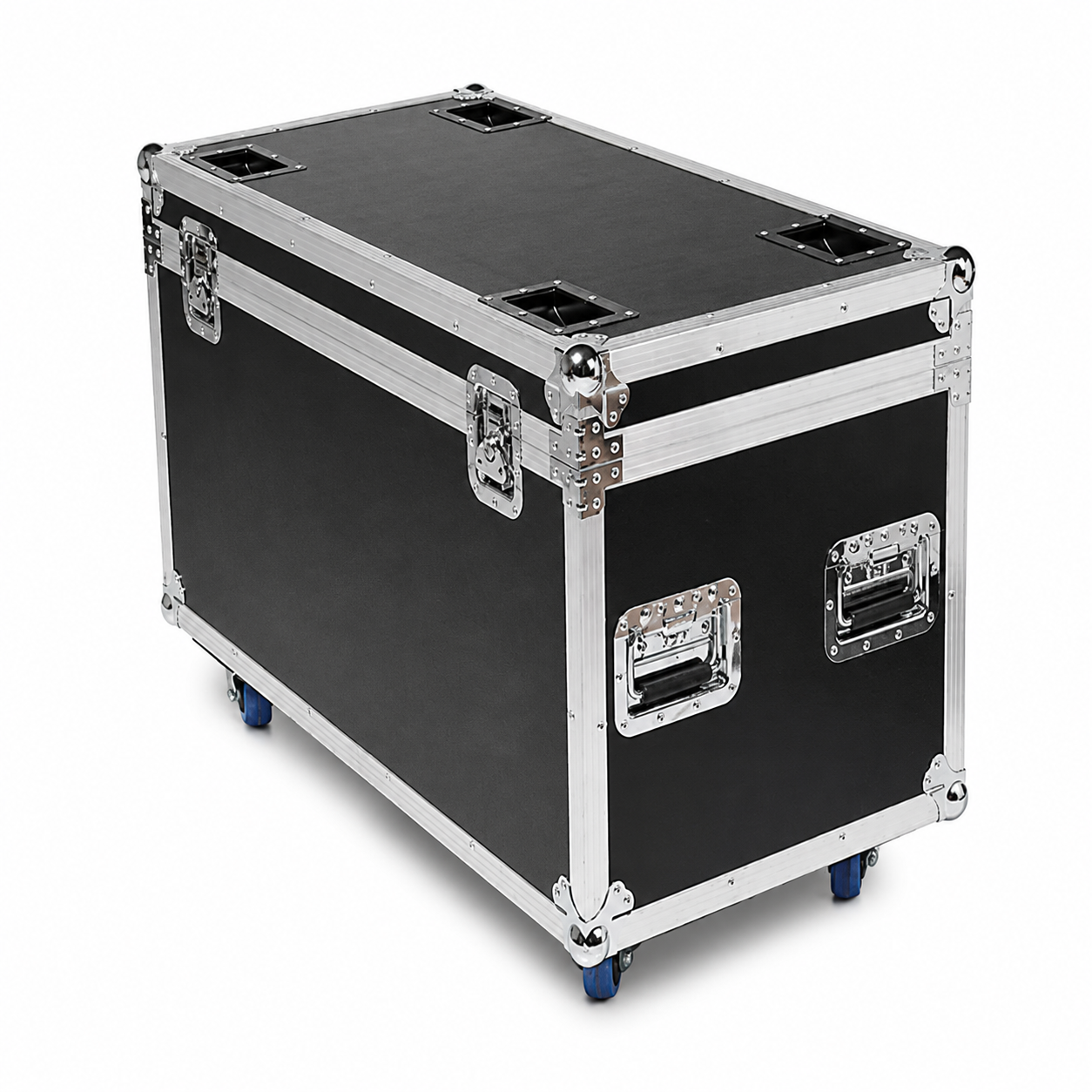

Flight case1 pc

Optional YXC-LB1260 Flight case

✓

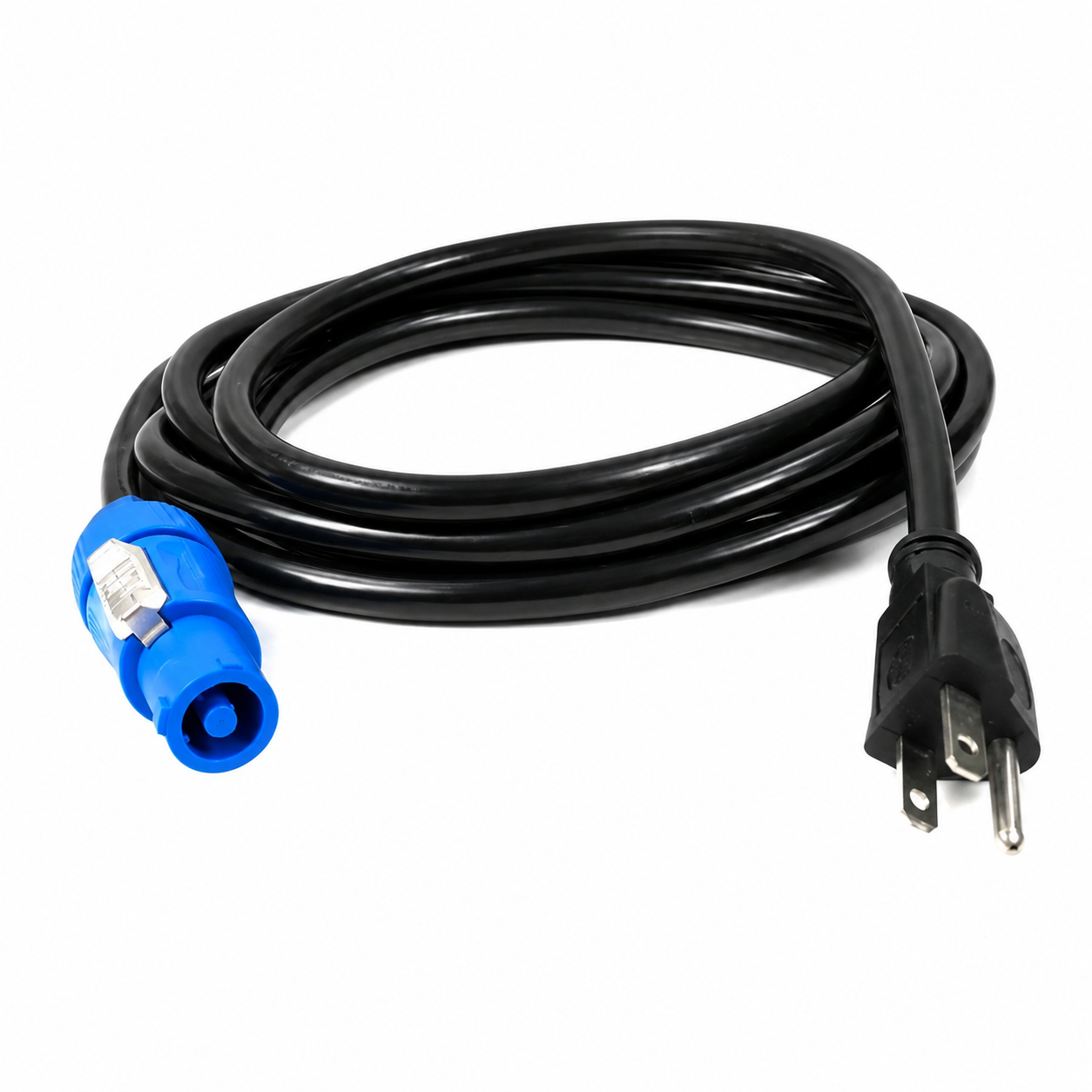

Power cord1 pc

Included YXC-LB1260 Power cord

✓

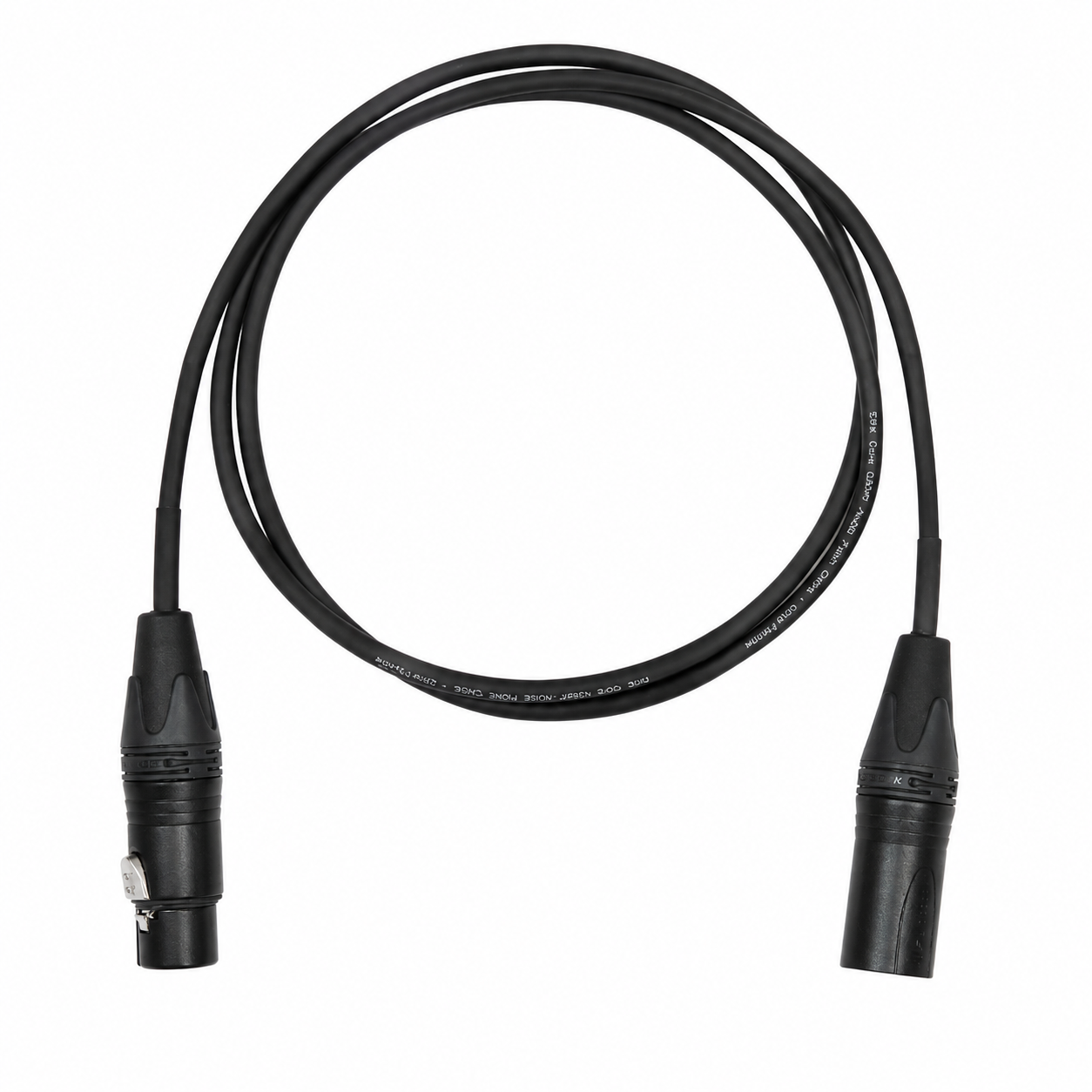

Signal cable1 pc

Included YXC-LB1260 Signal cable

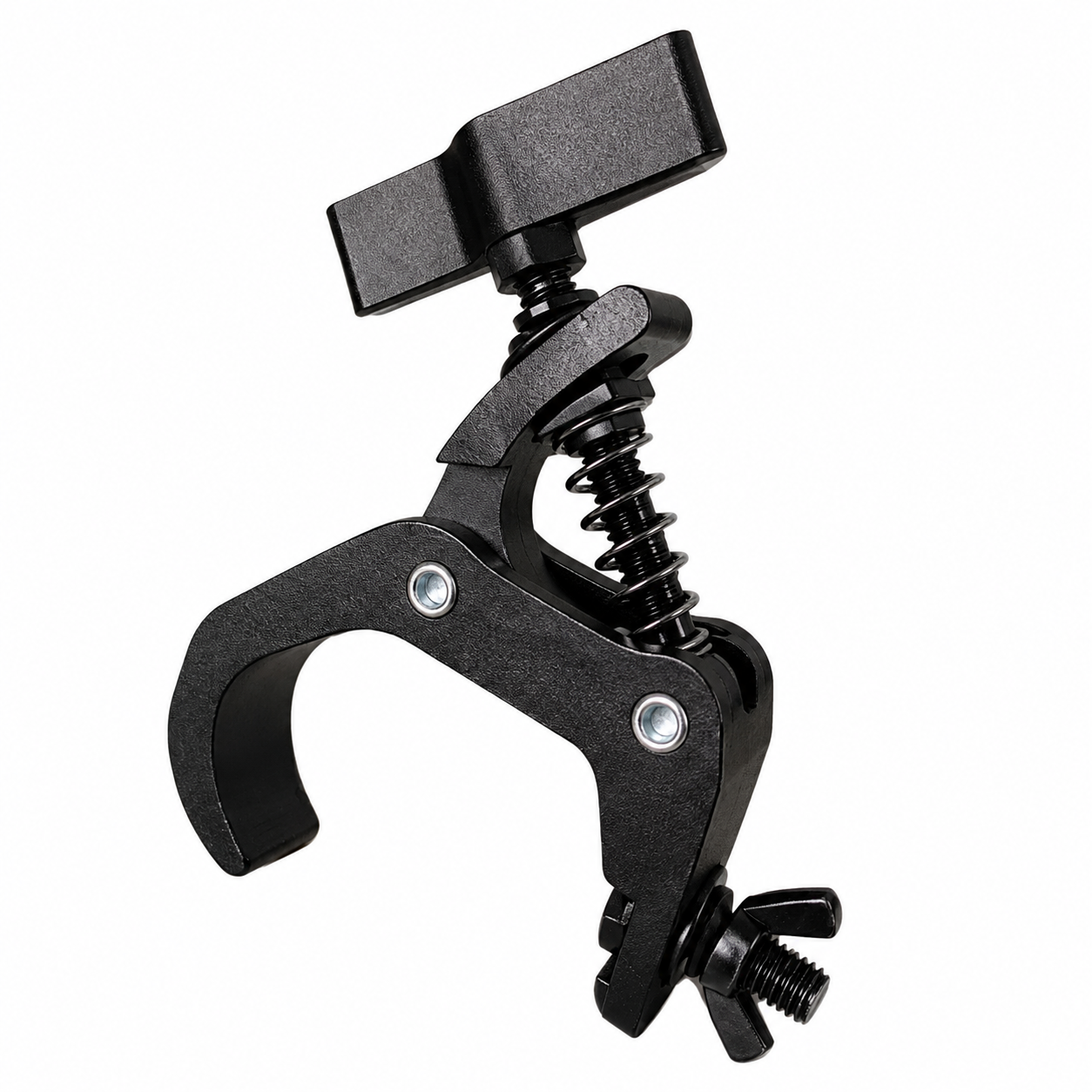

Lighting clamp2 pcs

Optional YXC-LB1260 Lighting clamp

✓

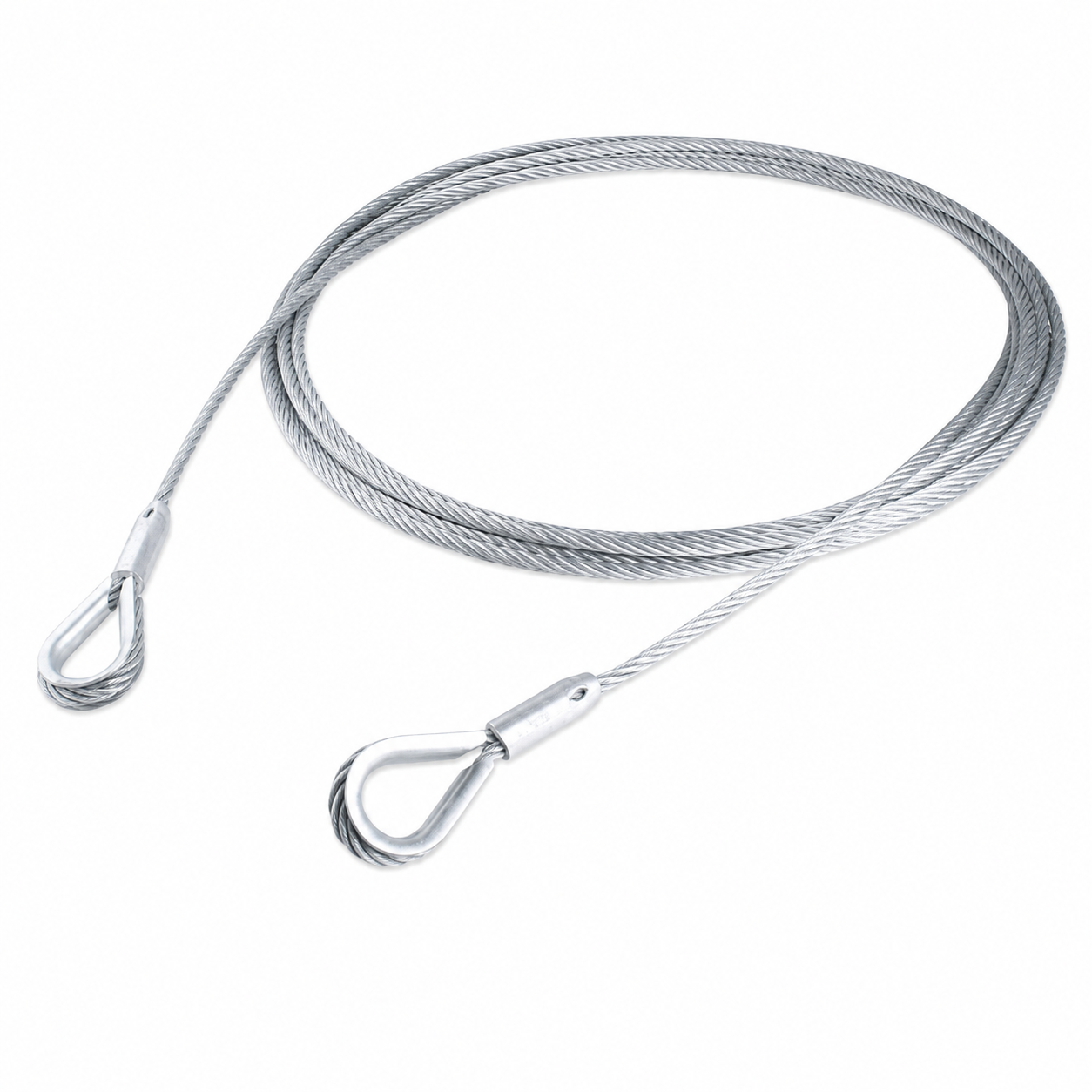

Safety cable1 pc

Included YXC-LB1260 Safety cable

✓

Technical specification sheet1 pc

Included YXC-LB1260 Technical specification sheet

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-LB1260

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
