YXC-LT740M

LED Mini 7x40W Bee Eye Moving Head Light

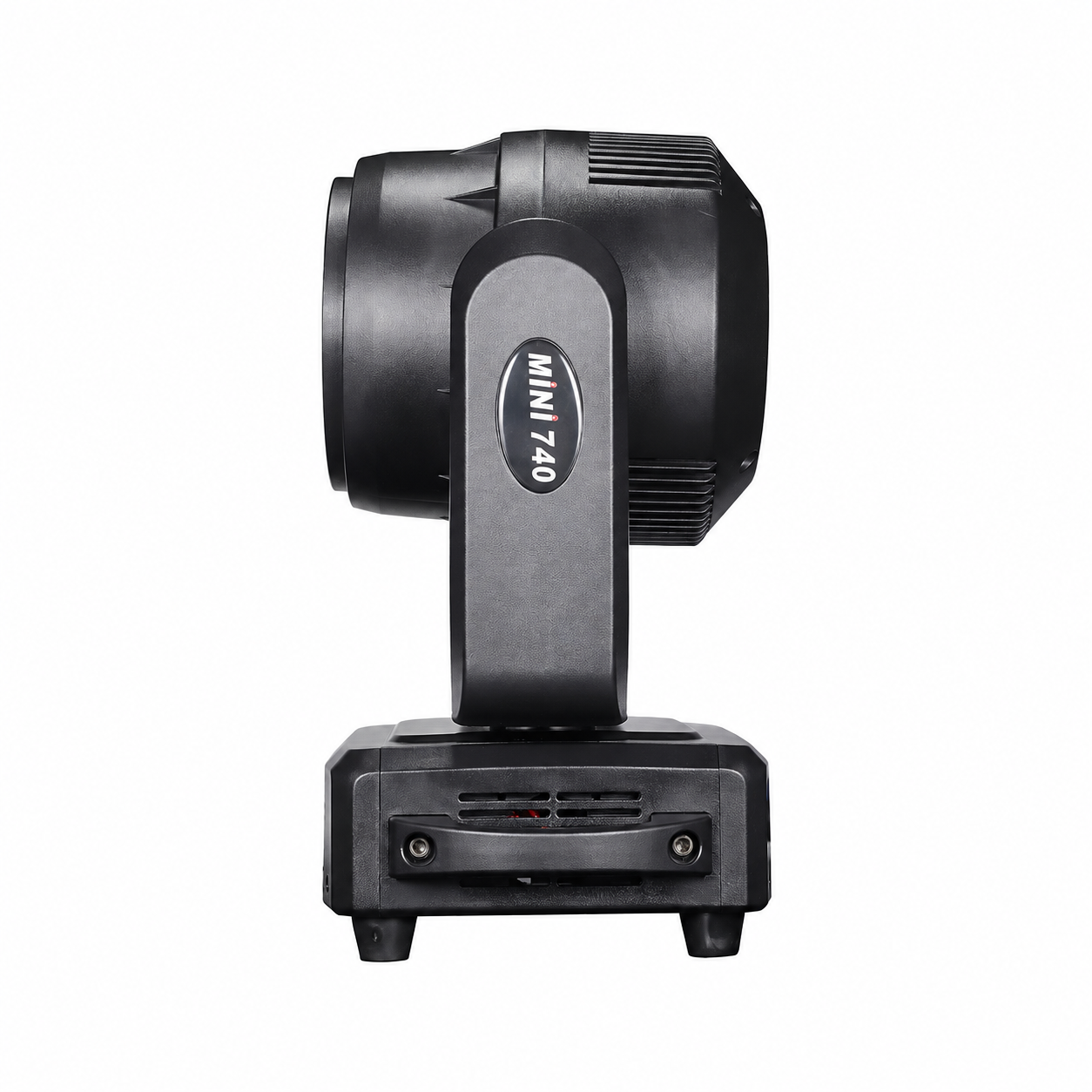

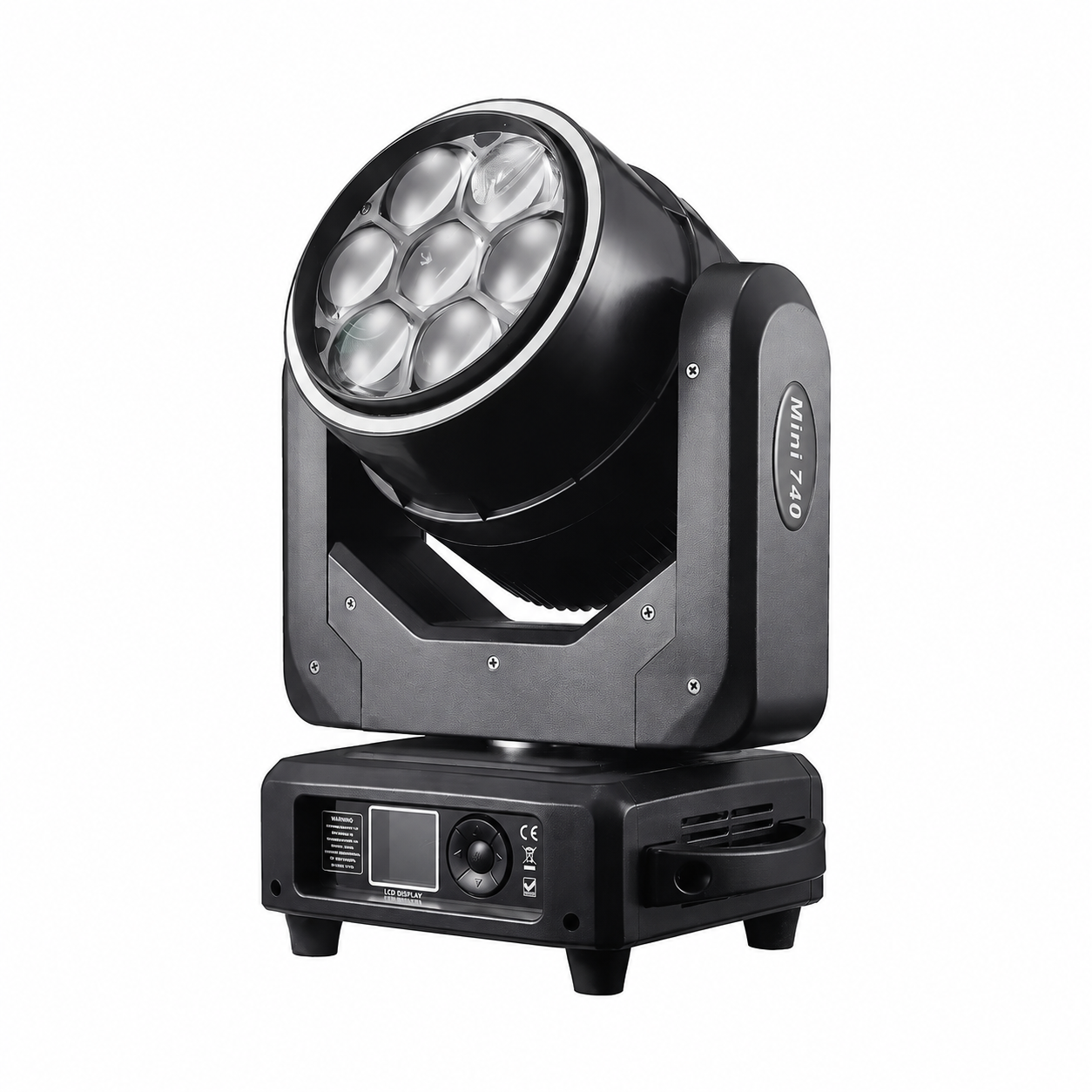

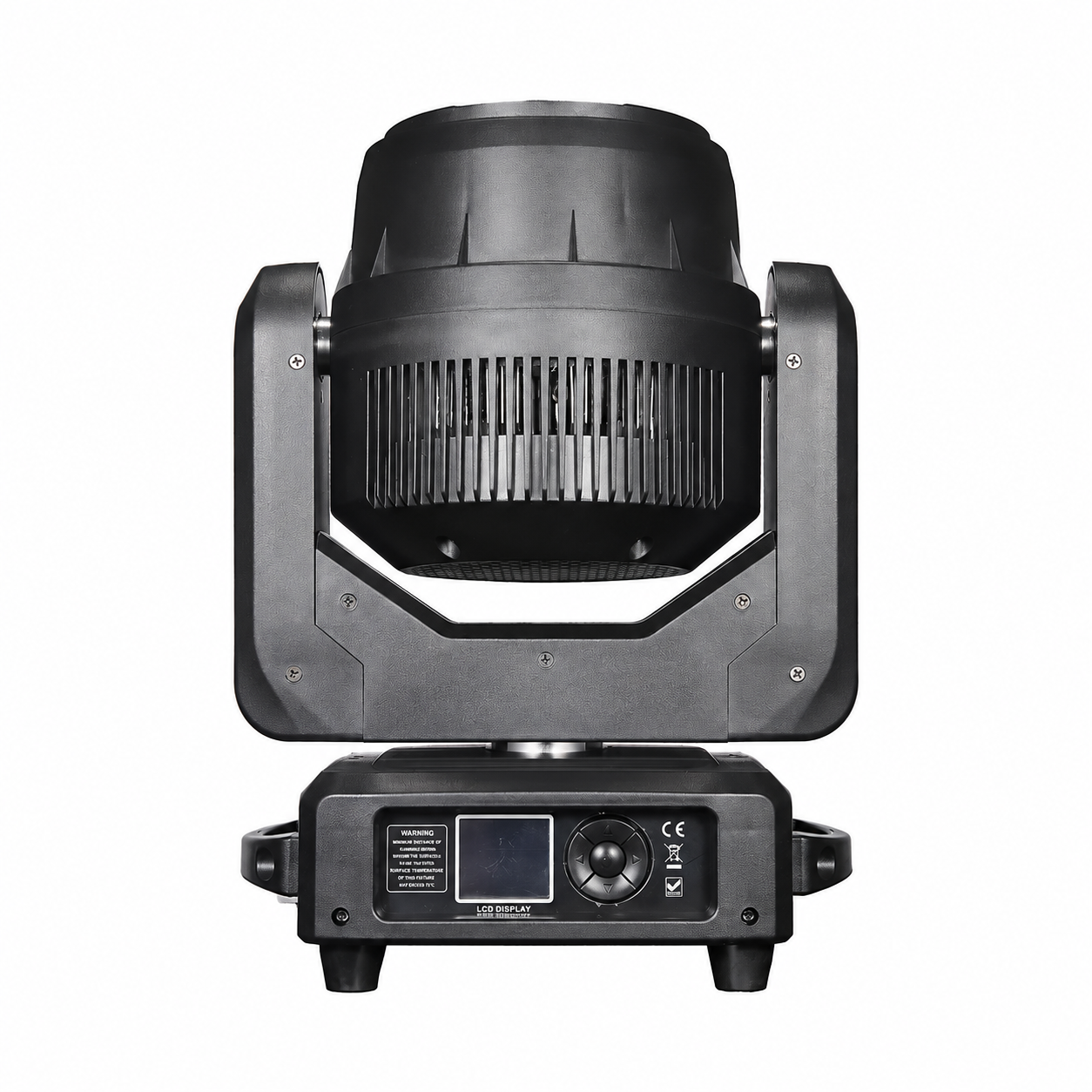

Name: YXC-LT740M LED Mini 7x40W Bee Eye Moving Head Light
Brand: Lucky Star
SKU: YXC-LT740M

The YXC-LT740M LED Mini 7x40W Bee Eye Moving Head Light utilizes an RGBW 4-in-1 light source with single-point individual control, combining color wash, strobe, zoom, and honeycomb beam effects. Equipped with auxiliary LED strips and motorized pan/tilt functions in a compact housing, it is ideal for flexible deployment in stage productions, weddings, clubs, parties, and commercial events.

BUILT FOR

Concert stagesFestivalsTouring productionsTheatresClubs and barsTV studios

PUBLIC RESOURCES & CONTROL FILES

D4AA_LED7Bee 30DMX.d4↓R20LED7bee(1).R20↓PDFMini_7x40W_Bee_Eye_Specification_EN.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-LT740MYXC-LT740M LED Mini 7x40W Bee Eye Moving Head Light

CURRENT PRODUCTProduct demonstration

Specifications

Input Voltage110-240 V, 50/60 Hz

Power350 W

Light Source7 x 40W RGBW 4-in-1 color-mixing bee-eye LEDs, 30 x 0.2W 5050 LED strips

Operating LifeApproximately 50,000 hours

FeaturesSingle-point individual control Full 40W output

Operating Temperature-20°C to 40°C

Control MethodsDMX 512, Auto, Master/Slave, Sound Control

3 Channel Modes(42H/30H/58CH)

Beam Angle5.5°–60° Linear Focus Adjustment

Color Mixing SystemRGBW mixing system delivers smooth, uniform color blending without flicker, producing vibrant rainbow effects

FunctionsColor wash, strobe, zoom, honeycomb beam effect

Pan540° (16-bit) motorized adjustment

Tilt270° (16-bit) motorized adjustment

Dimming0 - 100%

Display1.77-inch color TFT Screen with bilingual (Chinese/English) interface for quick operation and menu navigation. · Records device usage time and operating hours; displays device temperature, channel data, and software version information. · Customizable settings menu for configuration via menu navigation and built-in program recall.

Luminaire MaterialNew fire-resistant engineering plastic material

Net Weight6.1KG

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

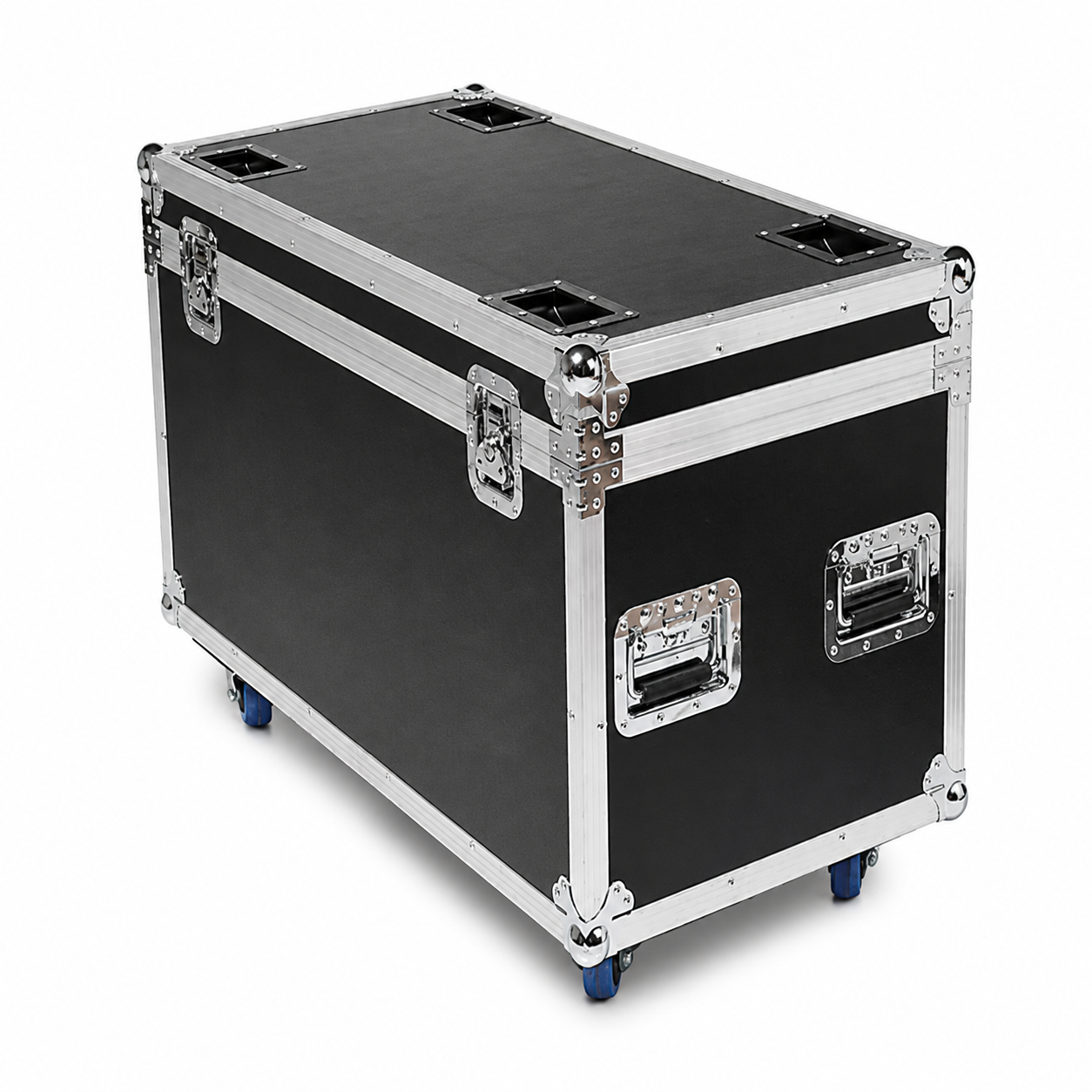

Flight case1 pc

Optional YXC-LT740M Flight case

✓

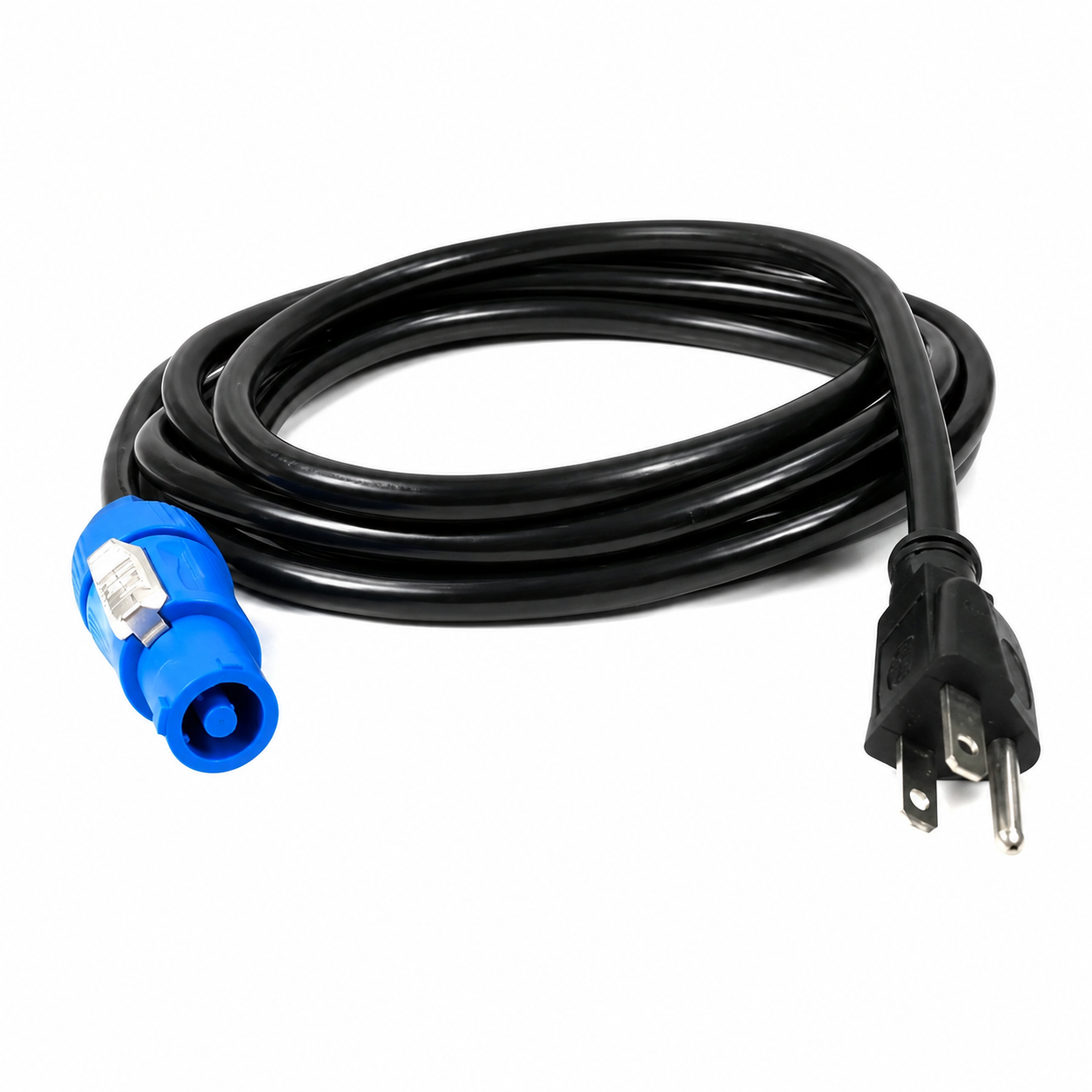

Power cord1 pc

Included YXC-LT740M Power cord

✓

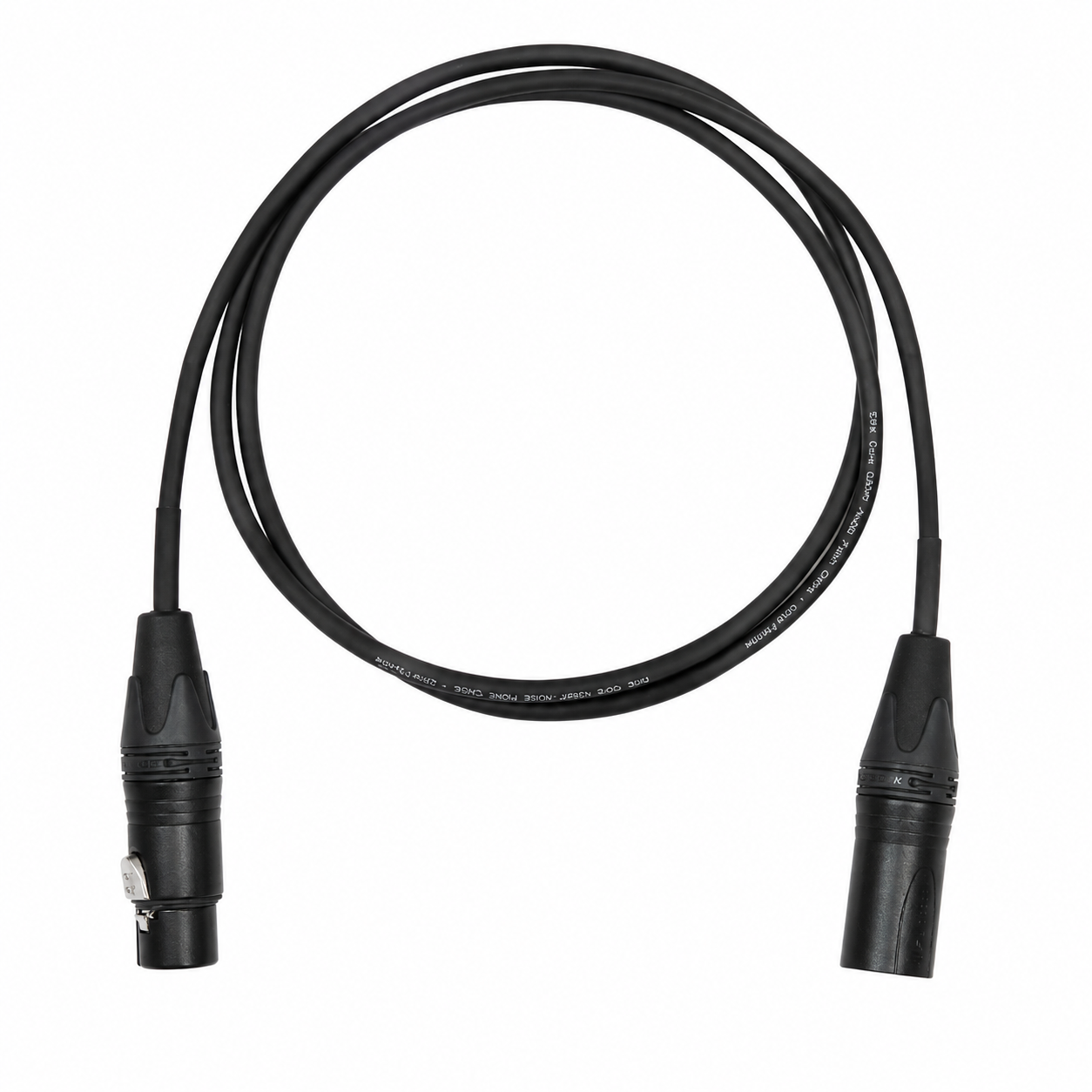

Signal cable1 pc

Included YXC-LT740M Signal cable

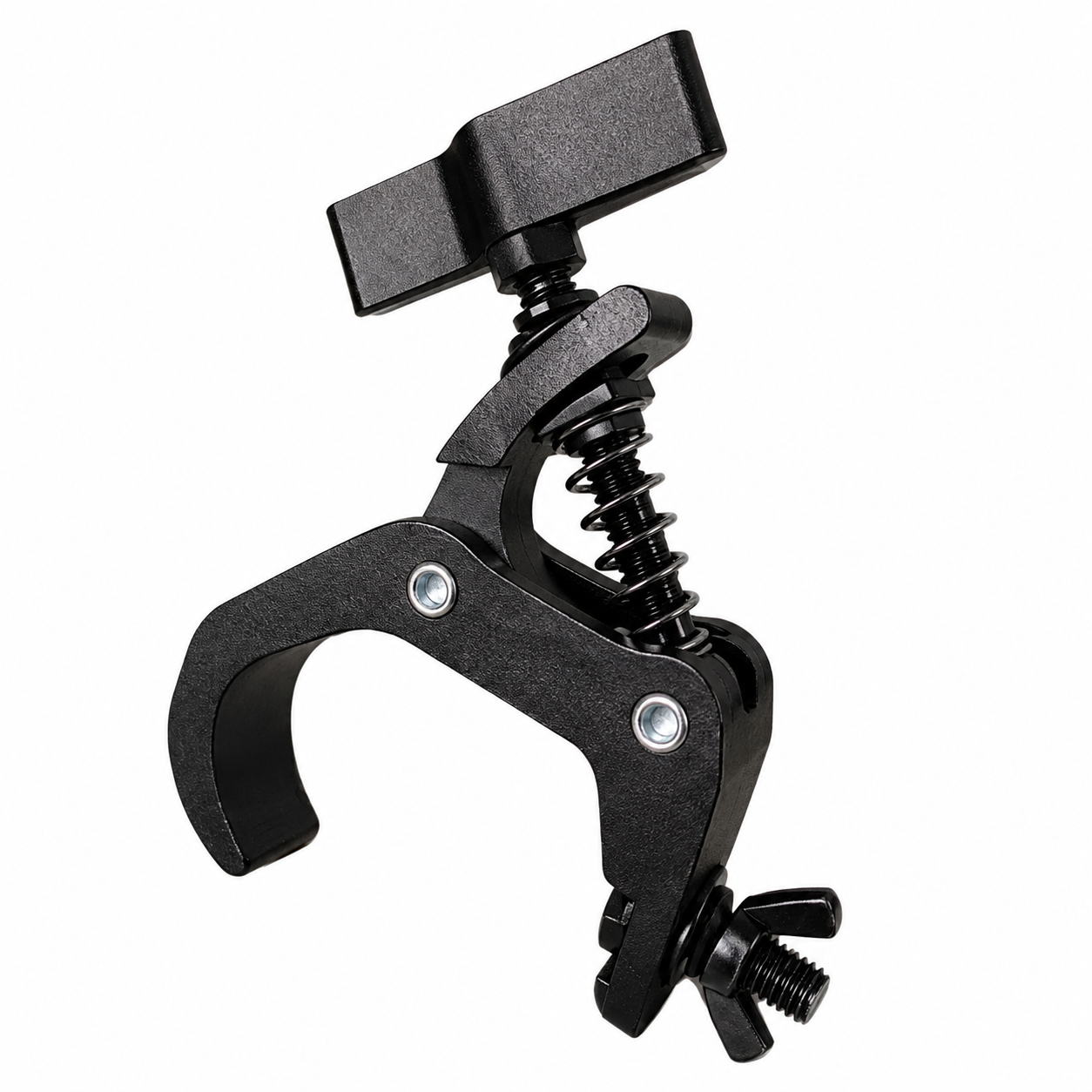

Lighting clamp2 pcs

Optional YXC-LT740M Lighting clamp

✓

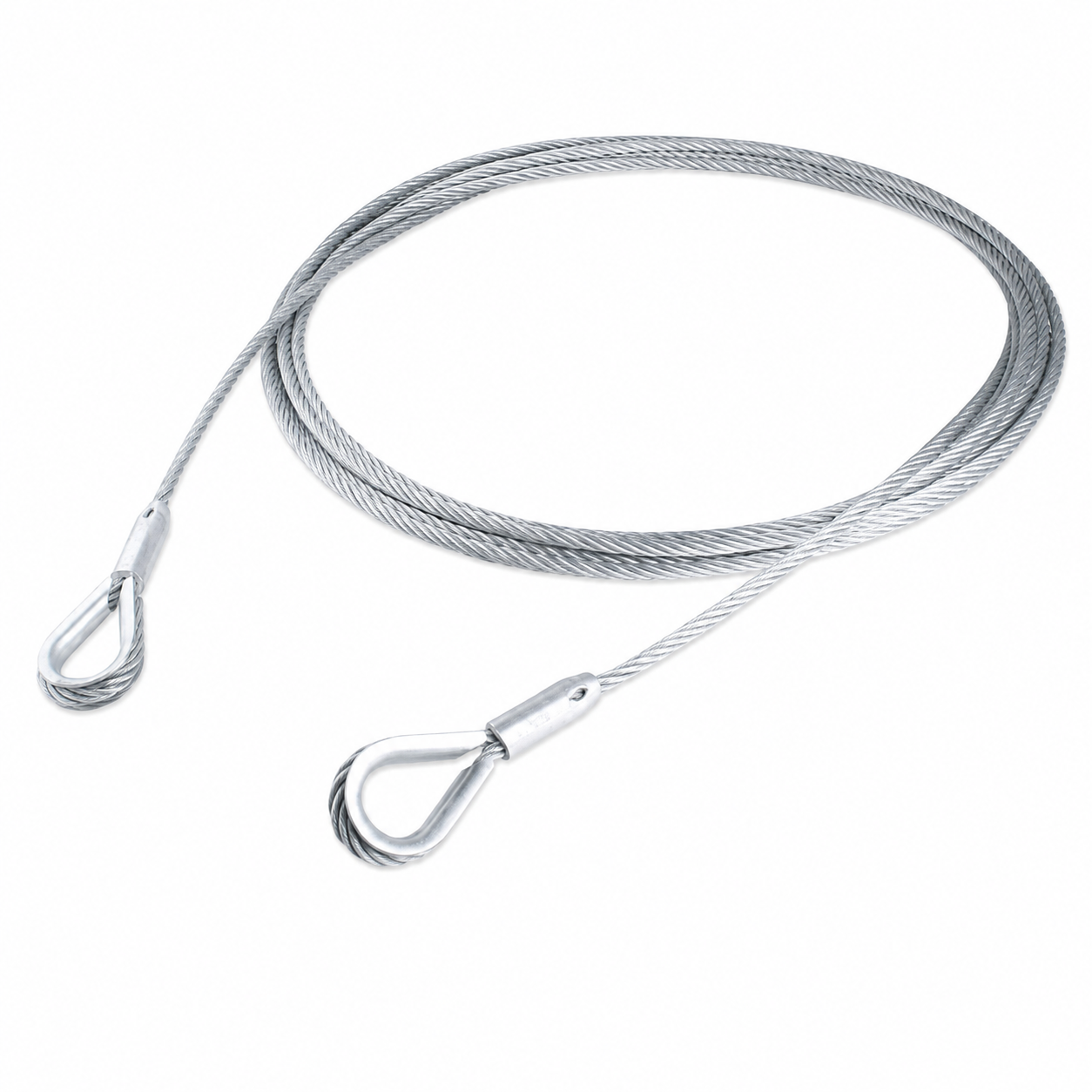

Safety cable1 pc

Included YXC-LT740M Safety cable

✓

Technical specification sheet1 pc

Included YXC-LT740M Technical specification sheet

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-LT740M

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
