Verified product model

YXC-LB1040

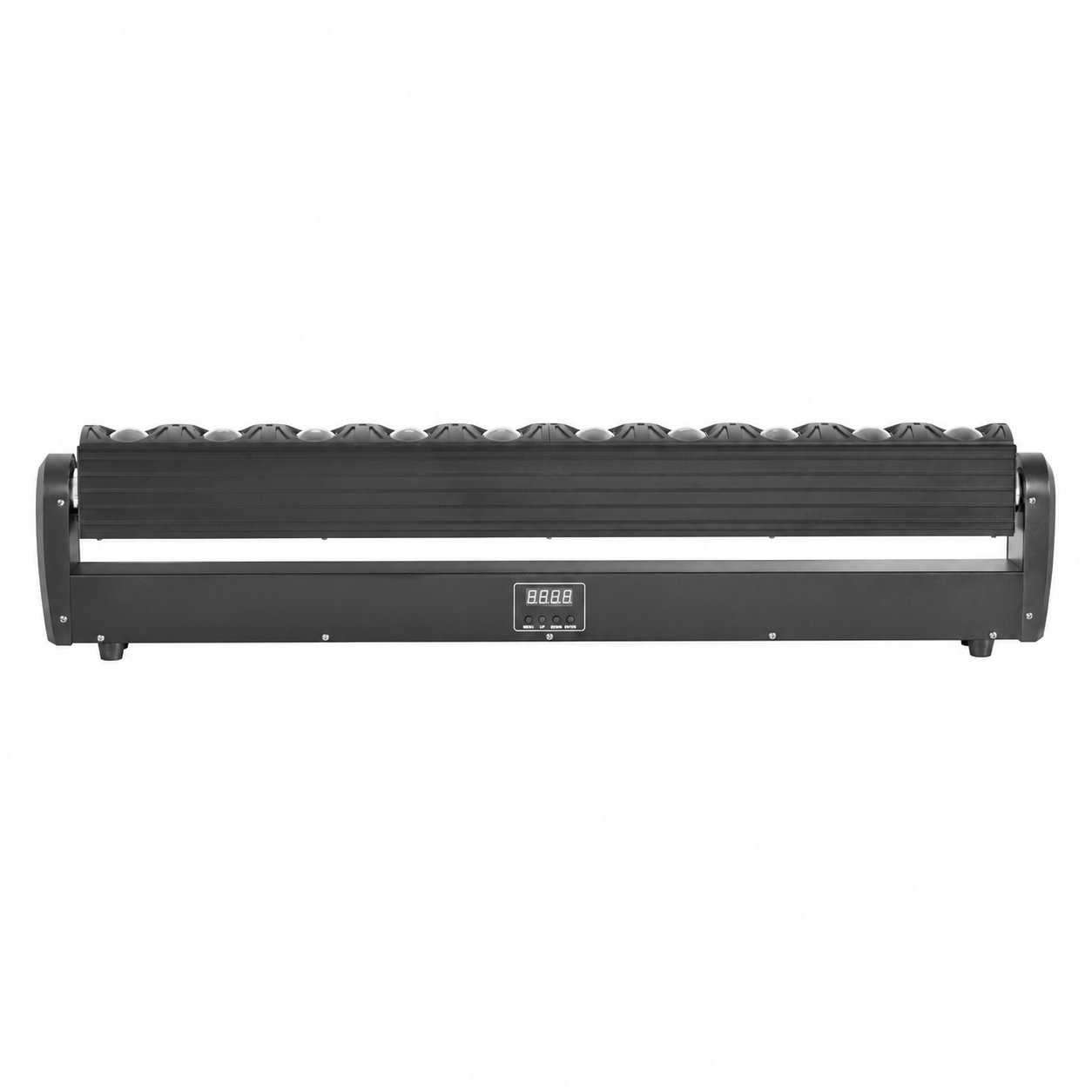

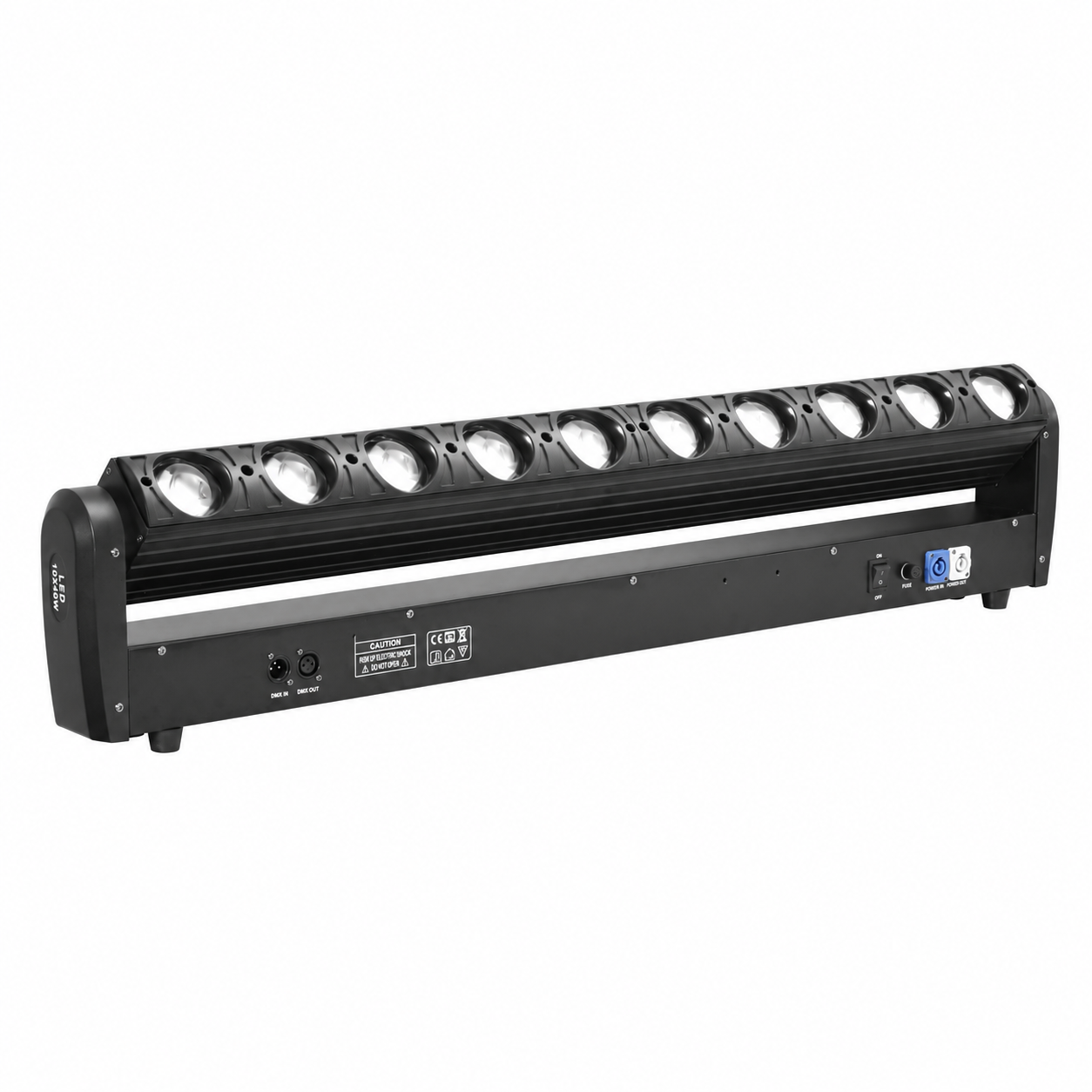

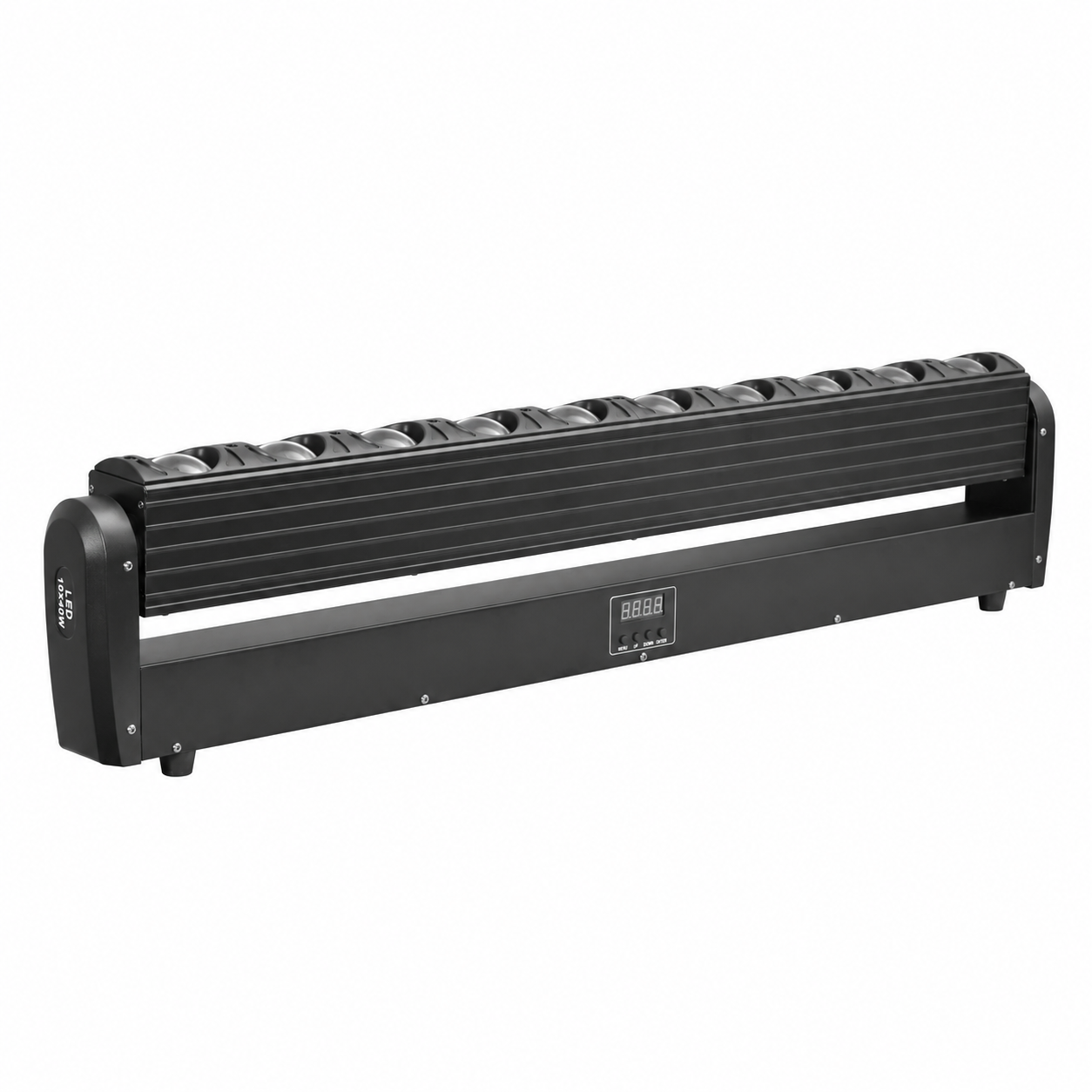

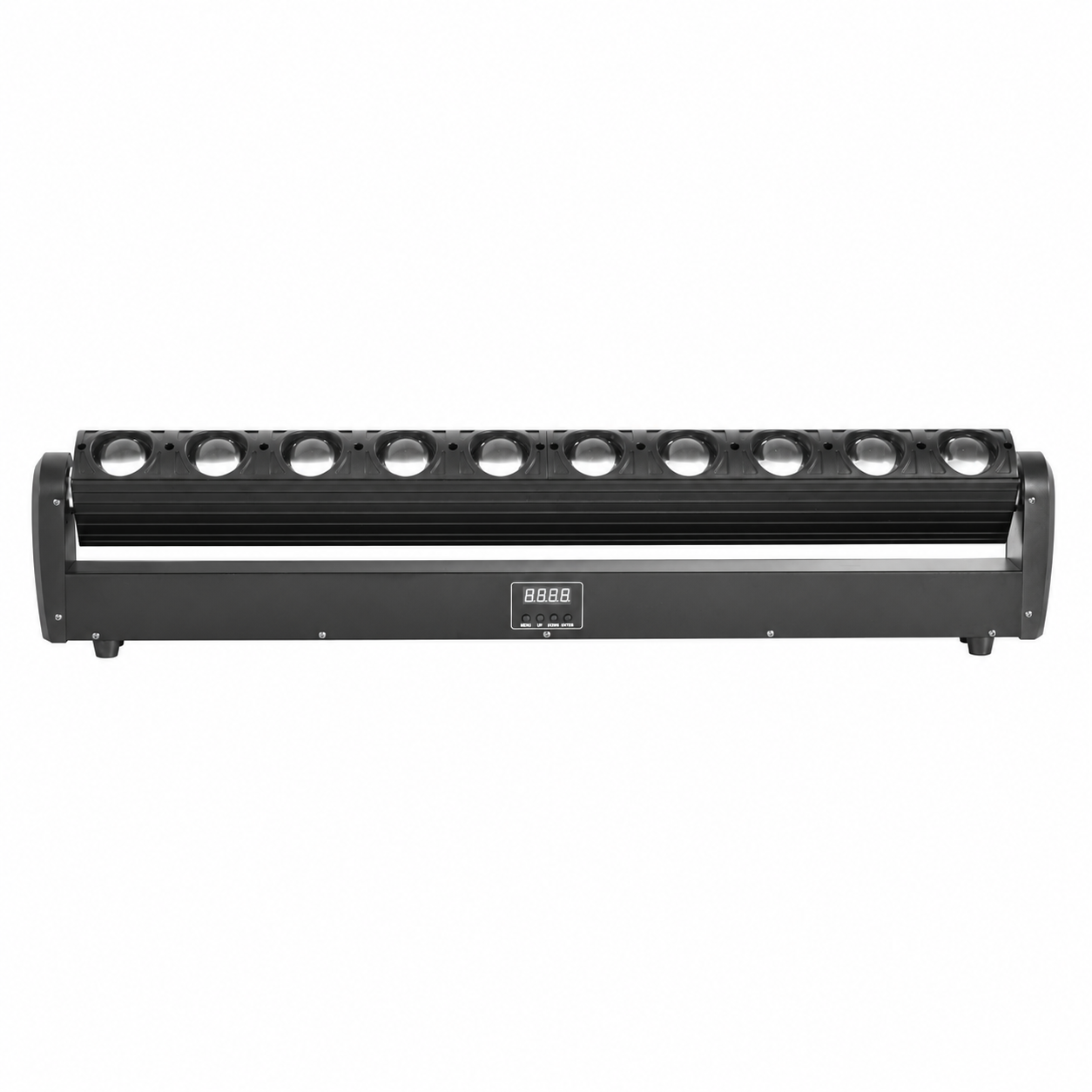

10 × 40W Matrix Light YXC-LB1040

Name: 10x40W Matrix Light YXC-LB1040
Brand: Lucky Star
SKU: YXC-LB1040

The YXC-LB1040 10x40W matrix light features a matrix light source layout suitable for multi-lamp combinations to create array lighting and stage visual effects. Ideal for lighting rental companies, event production contractors, wedding companies, bars, and entertainment venues for indoor stage performances, weddings, parties, and entertainment events to build background lighting, array shapes, and live atmospheres.

BUILT FOR

Concert stagesFestivalsTouring productionsTheatresClubs and barsCorporate events

PUBLIC RESOURCES & CONTROL FILES

D4ZCX_10K-40W+Y-7+13CH(1).d4↓R20ZCX-10K-40W+Y-13CH.r20↓PDF10_LED_Matrix_Light_Specification_EN_Designed.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-LB104010x40W Matrix Light YXC-LB1040

CURRENT PRODUCTProduct demonstration

Specifications

VoltageAC100~240V 50/60HZ

Power350W

Lamp Bead10pcs 4-in-1 LEDs

Control ModeDMX512, Self-propelled ,Master-slave, Voice control, with RDM function

ChannelsCH 7、CH13、CH43

Dimming32bit 0~100% linear adjustment

FeaturesY side shaking+ Beaming+Flashing

Working Temperature-30°~50°

Strobe1~30HZ

AppearanceMetal, Black

Connection ModeDMX512 input and output/Ac power input and output

IP RankIP20

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

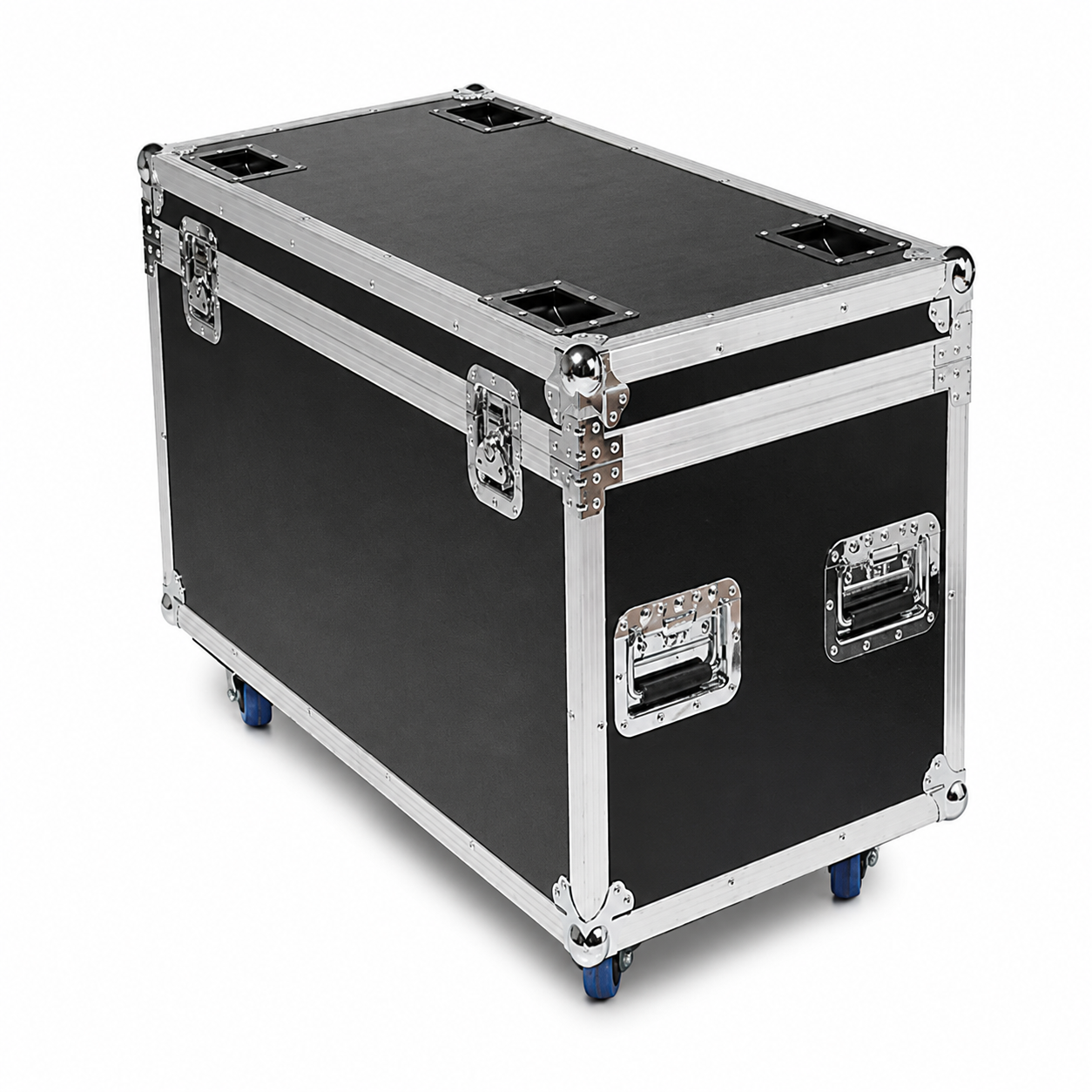

Flight case1 pc

Optional YXC-LB1040 Flight case

✓

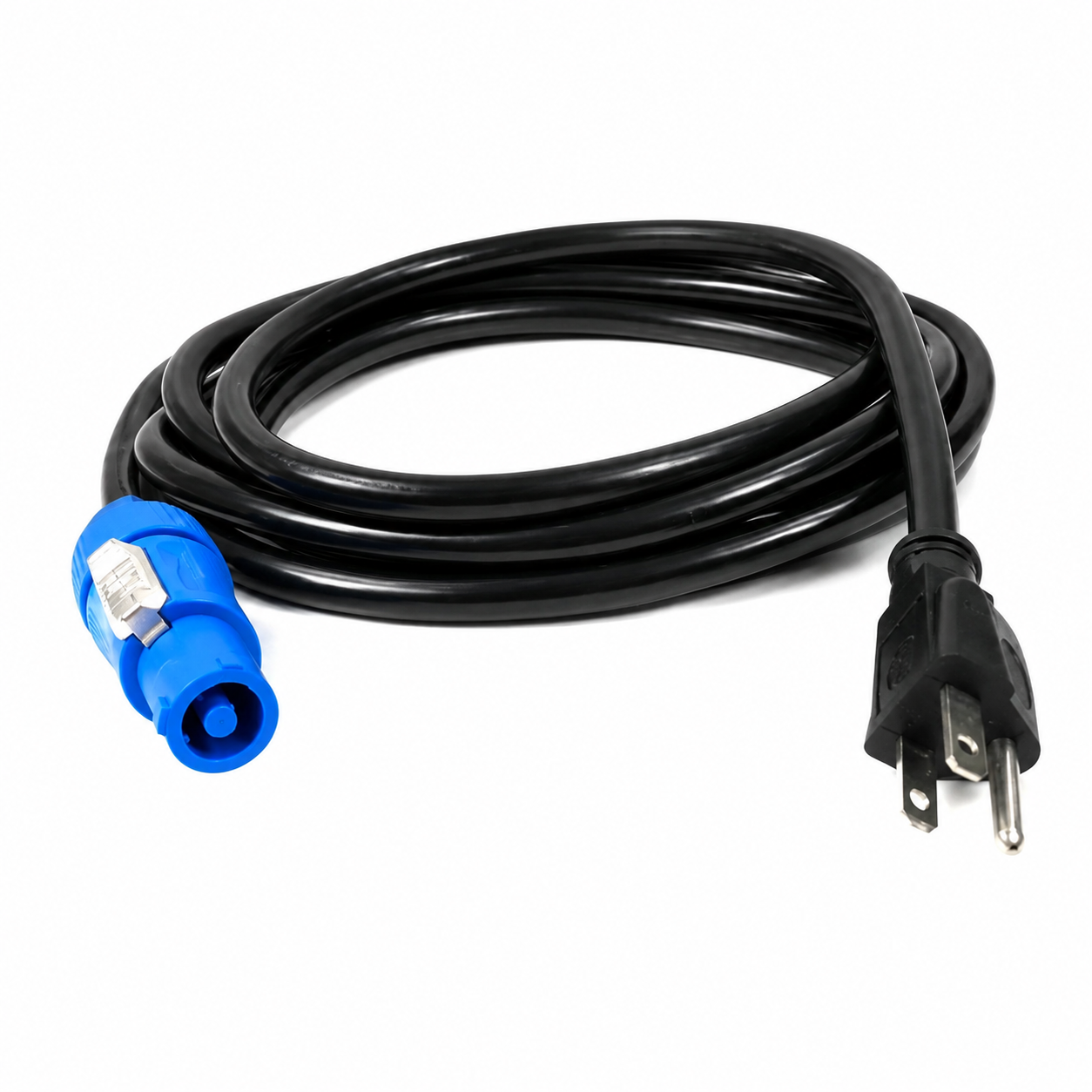

Power cord1 pc

Included YXC-LB1040 Power cord

✓

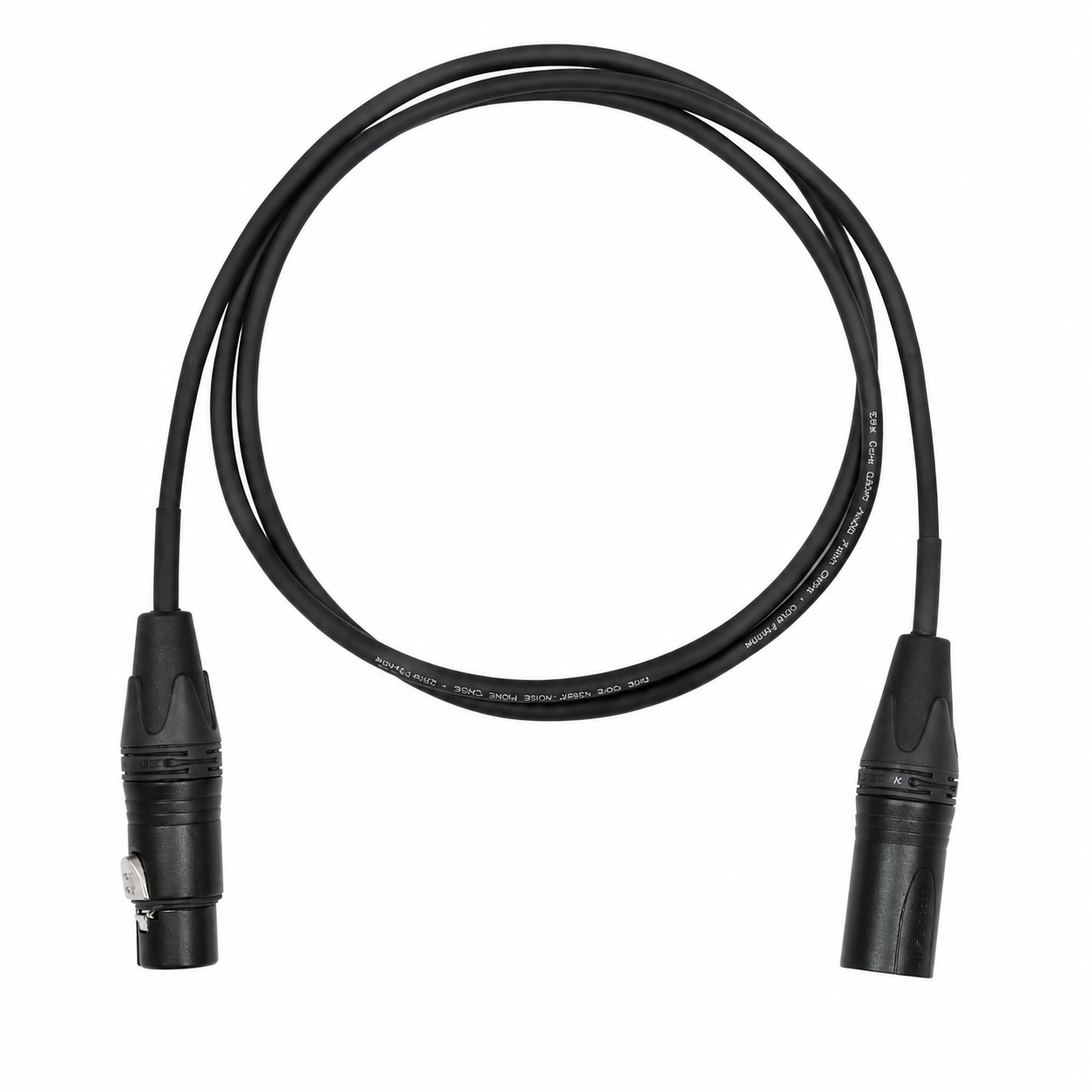

Signal cable1 pc

Included YXC-LB1040 Signal cable

✓

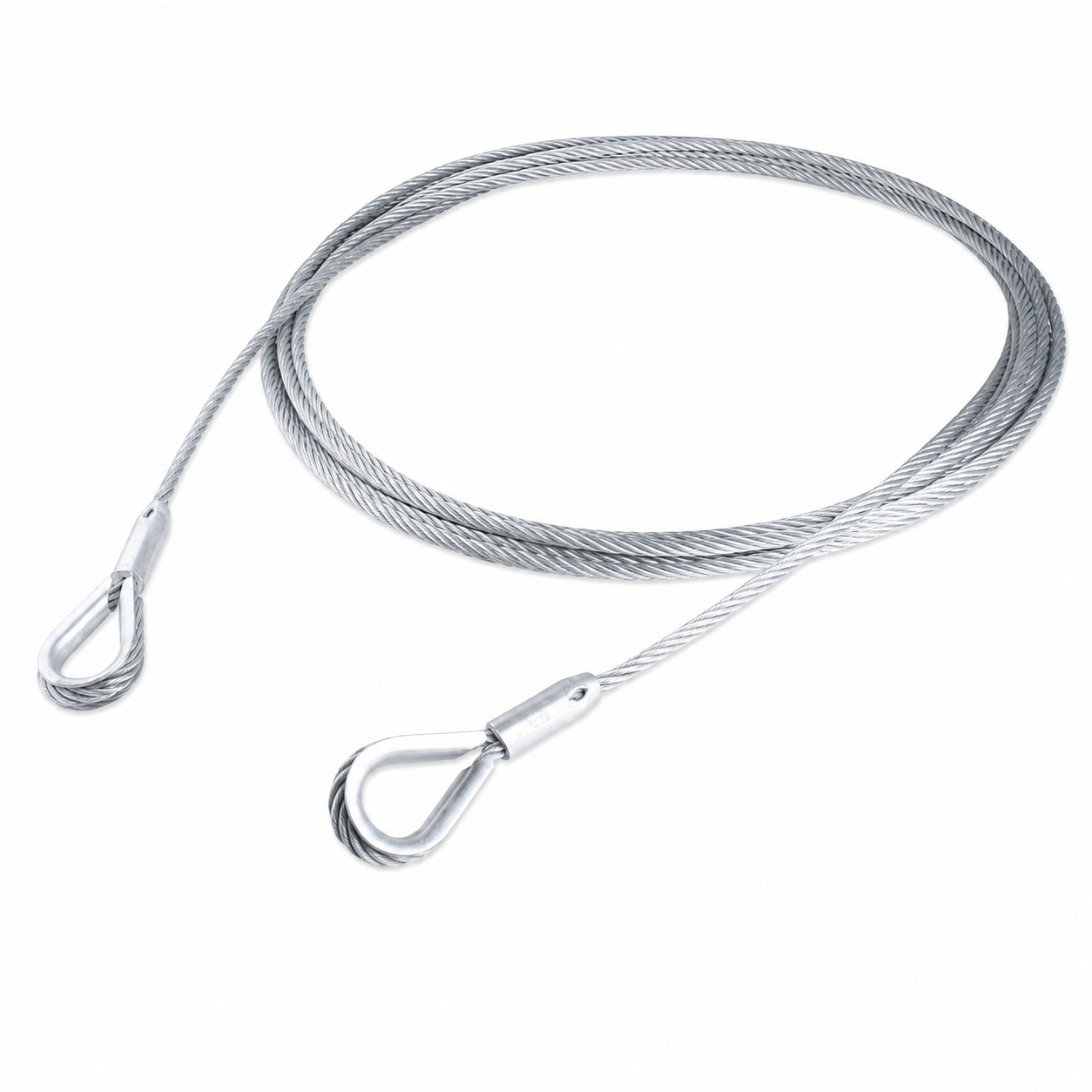

Safety cable1 pc

Included YXC-LB1040 Safety cable

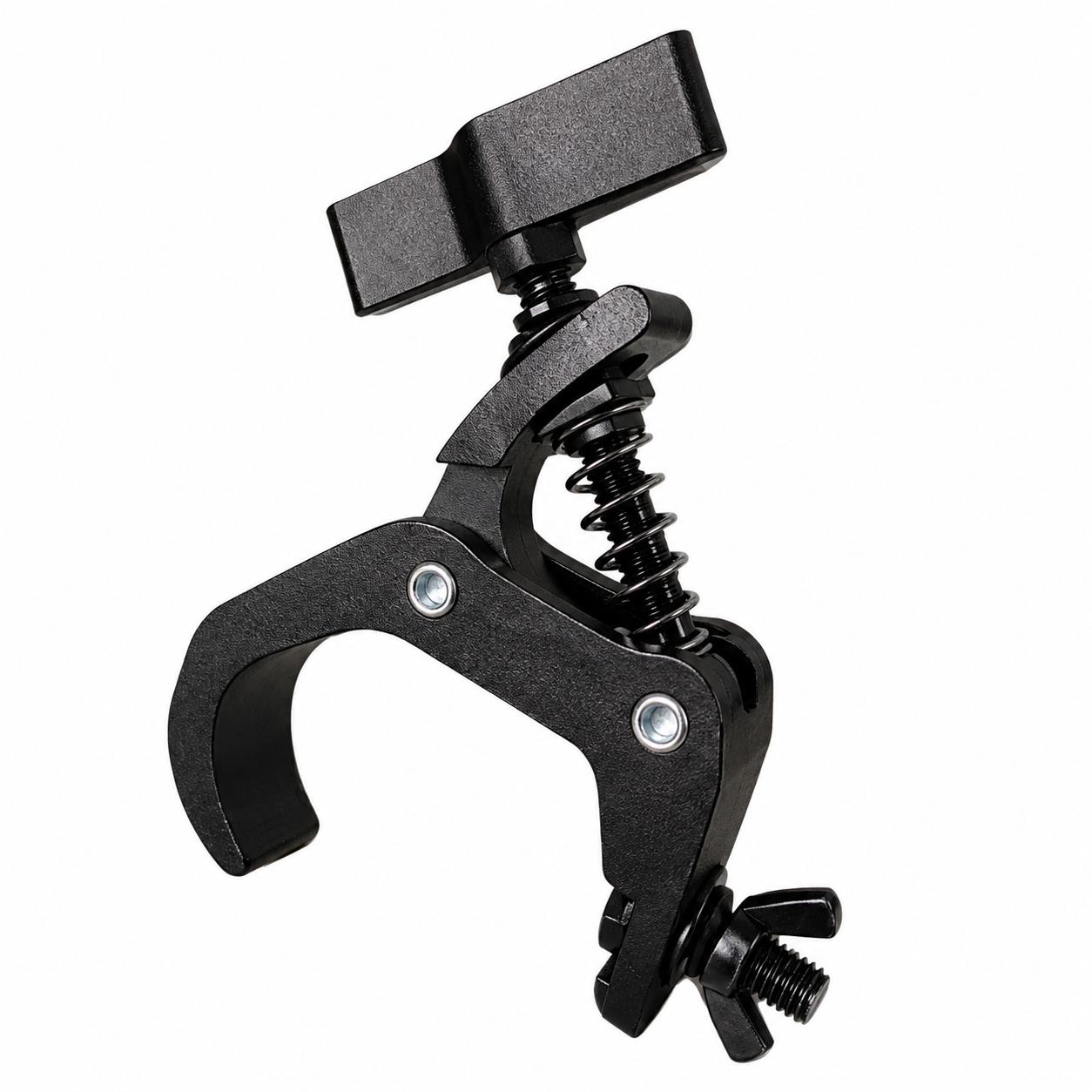

Lighting clamp2 pcs

Optional YXC-LB1040 Lighting clamp

✓

Technical specification sheet1 pc

Included YXC-LB1040 Technical specification sheet

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-LB1040

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
