Verified product model

YXC-L500/L1000

Outdoor Rental LED Display

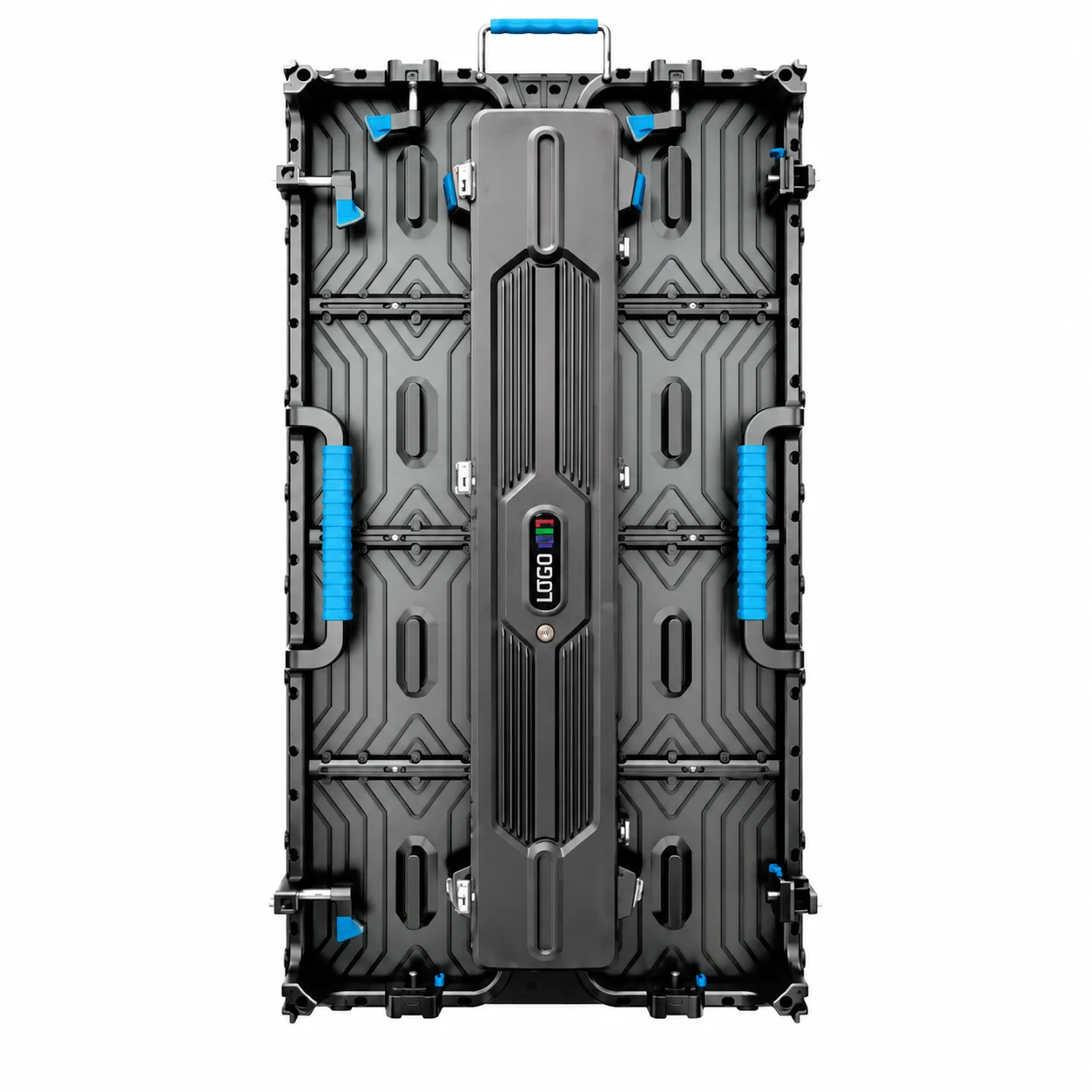

Name: YXC-L500/L1000 Outdoor Rental LED Display
Brand: Lucky Star
SKU: YXC-L500/L1000

The YXC-L500/L1000 is an LED display designed for professional stage and large-scale event rental markets. It features 500x500 mm and 500x1000 mm dual-size cabinets supporting flexible, seamless mixing without extra adapters. Core positioning: High load capacity + flexible mixing + stable structure + efficient setup.

BUILT FOR

Live eventsRental fleetsConcert stagesRetail storesSports venuesCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDFYXC-L500-L1000_Product_Specification.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-L500/L1000YXC-L500/L1000 Outdoor Rental LED Display

CURRENT PRODUCTProduct demonstration

Specifications

ModelP1.95P2.604P2.976P3.91P4.81

Pixel Pitch1.952.604mm2.976mm3.91mm4.81mm

Density262974dots/m²147928 dots/m²112910 dots/m²65536 dots/m²43222 dots/m²

Led TypeSMD1515SMD2121SMD2121/SMD1921SMD2121/SMD1921SMD2121/SMD1921

Panel Size500x500mm &500x1000mm500x500mm &500x1000mm500x500mm &500x1000mm500x500mm &500x1000mm500x500mm &500x1000mm

Panel Resolution256X256 dots/256x512 dots192x196 dots/192x384 dots168X168 dots/168x332 dots128x128 dots/128x256 dots104x104 dots/104x208 dots

Panel MaterialDie Casting AluminumDie Casting AluminumDie Casting AluminumDie Casting AluminumDie Casting Aluminum

Screen Weight7.5KG/14KG7.5KG/14KG7.5KG/14KG7.5KG/14KG7.5KG/14KG

Drive Method1/32 Scan1/32 Scan1/28 Scan1/16 Scan1/13 Scan

Best Viewing Distance2m-20m2.5m-25m3m-30m4m-40m5m-50m

Brightness900 nits / 4500 nits

Input VoltageAC110V1220V+10%

Max Power Consumption800W

Average Power Consumption300W

Waterproof (foroutdoor)Front IP65, Rear IP54

ApplicationIndoor & Outdoor

Life Span100,000 Hours

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

Flight case1 pc

Optional YXC-L500/L1000 Flight case

✓

Power cable1 pc

Included YXC-L500/L1000 Power cable

✓

LED network signal cable1 pc

Included YXC-L500/L1000 LED network signal cable

Receiving card1 pc

Optional YXC-L500/L1000 Receiving card

Power supply1 pc

Optional YXC-L500/L1000 Power supply

LED module mask1 pc

Optional YXC-L500/L1000 LED module mask

LED module1 pc

Optional YXC-L500/L1000 LED module

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-L500/L1000

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
