Verified product model

YXC-P1.88

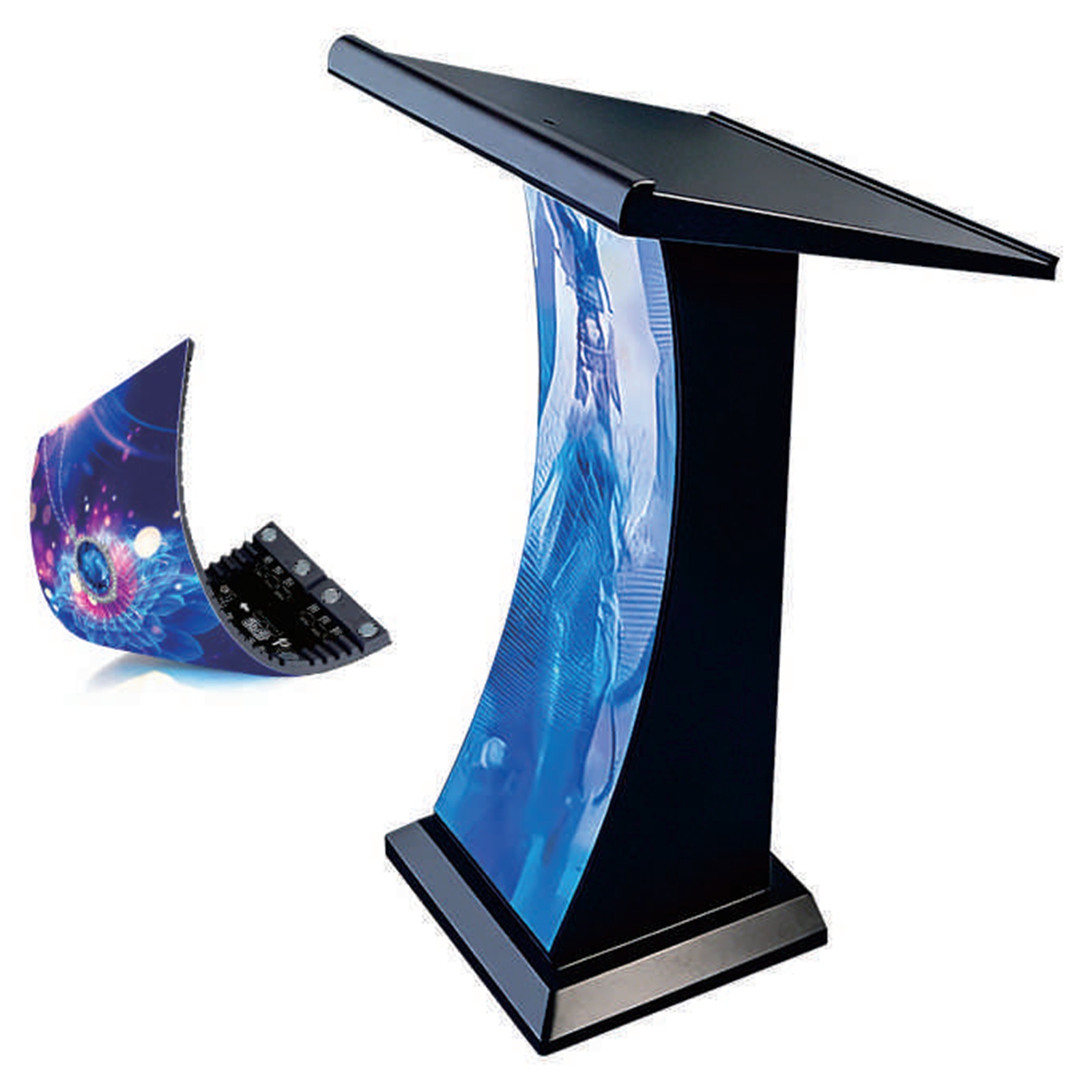

LED Podium Display

Name: LED Podium Display
Brand: Lucky Star
SKU: YXC-P1.88

Combining a podium with an LED display, it can showcase meeting themes, corporate logos, promotional videos, and event information. Supporting plug-and-play, it allows control and management of display content via computer, Wi-Fi, and other methods. Suitable for conference centers, hotels, schools, enterprises, exhibition halls, as well as event planning companies and AV system integrators. Primarily used for conference speeches, forum summits, press conferences, corporate launches, educational reports, and brand displays.

BUILT FOR

Live eventsCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDFLED_Podium_Product_Specification_No_Model.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-P1.88LED Podium Display

CURRENT PRODUCTProduct demonstration

Specifications

ModelPD1.25PD1.53PD1.86Pd2PD2.5

Pixel Pitch1.25mm1.53mm1.86mm2.0mm2.5mm

LED TechnologyGOBGOBGOBGOBGOB

Module Size320×160mm320×160mm320×160mm320×160mm320×160mm

Module Resolution256×128pixels208×104pixels172×86pixels160×80pixels128×64pixels

Cabinet Resolution384×768pixels312×624pixels256×512pixels240×480pixels192×384pixels

Scan Mode1/32s1/52s1/43s1/54s1/32s

ItemSpecification

Display Size480×960mm / 320×960mm

Product Size650×460×1150mm (L×W×H) / 530×460×1150mm (L×W×H)

MaterialIron

Weight28kg / 25kg

Brightness600 nits, 10-level adjustable

Power Consumption170W/pcs / 150W/pcs

Viewing Angle160°(W) / 160°(H)

Input VoltageAC 110–240V, 50/60Hz

Operating Temperature-20°C to +50°C

Refresh Rate3840Hz

Protection LevelIP43

Video InputHDMI ×2 (1 in, 1 out), USB 2.0 ×1

ControlRJ45, WiFi, AP Local Network, 4G Network (Optional)

Signal InterfaceComposite, S-Video, Component, HDMI, SDI, HD, VGA, DV

Installation MethodStanding, Stacking, Hanging, Wall Mounting

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

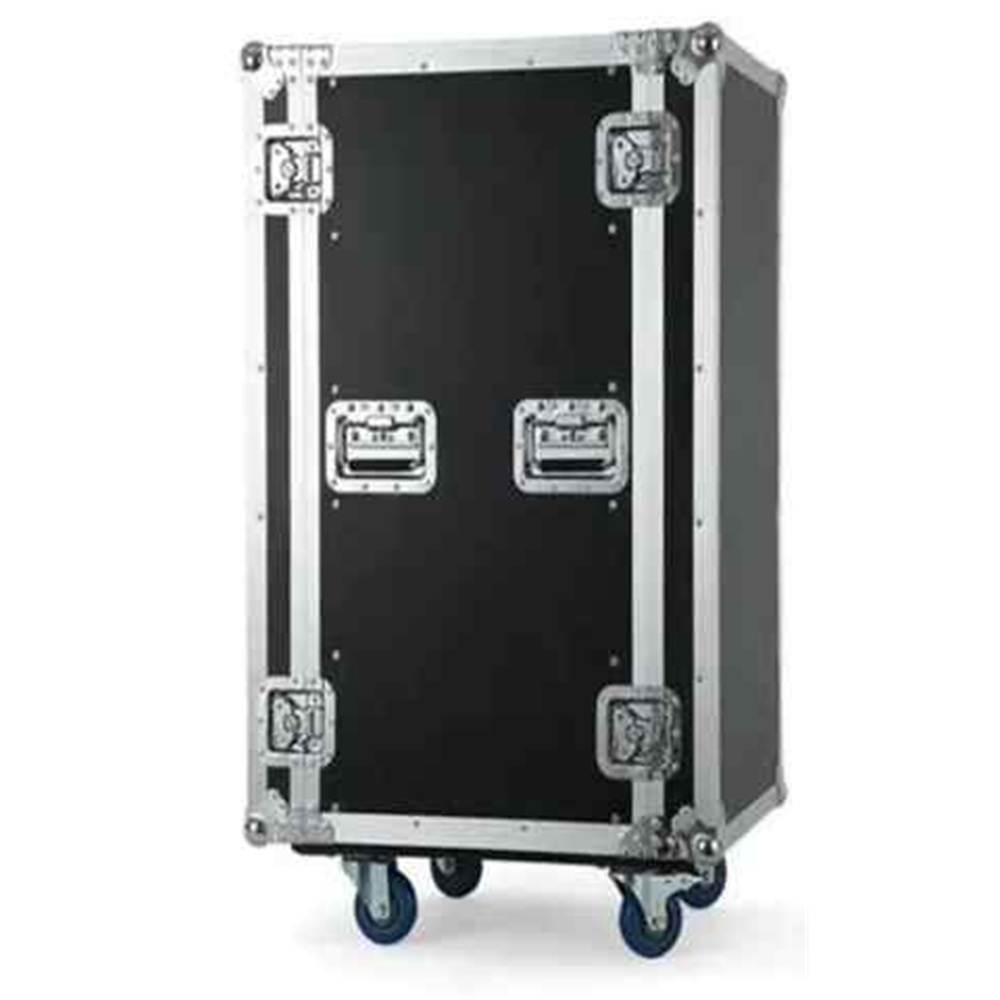

Flight case1 pc

Optional YXC-P1.88 Flight case

✓

LED network signal cable1 pc

Included YXC-P1.88 LED network signal cable

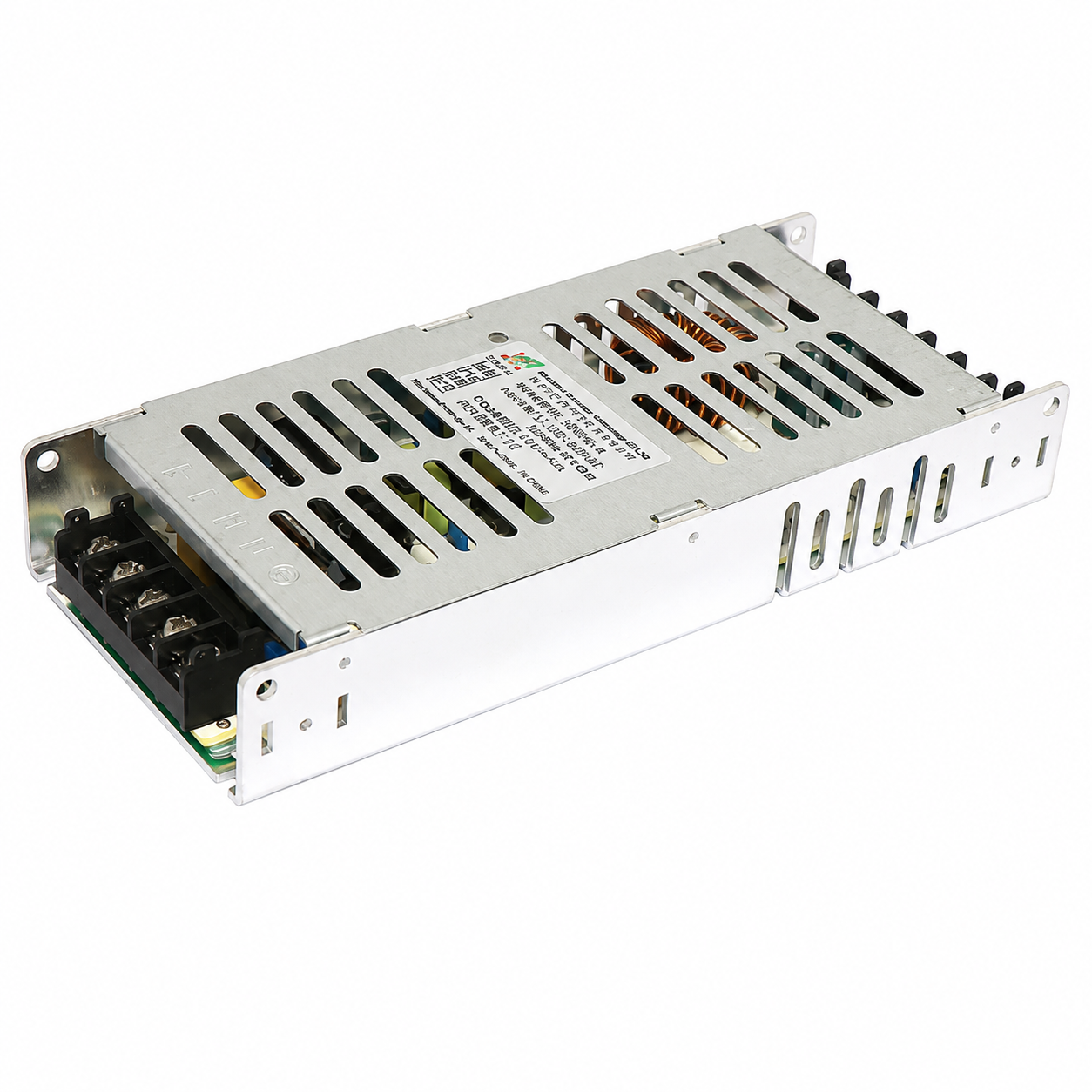

Power supply1 pc

Optional YXC-P1.88 Power supply

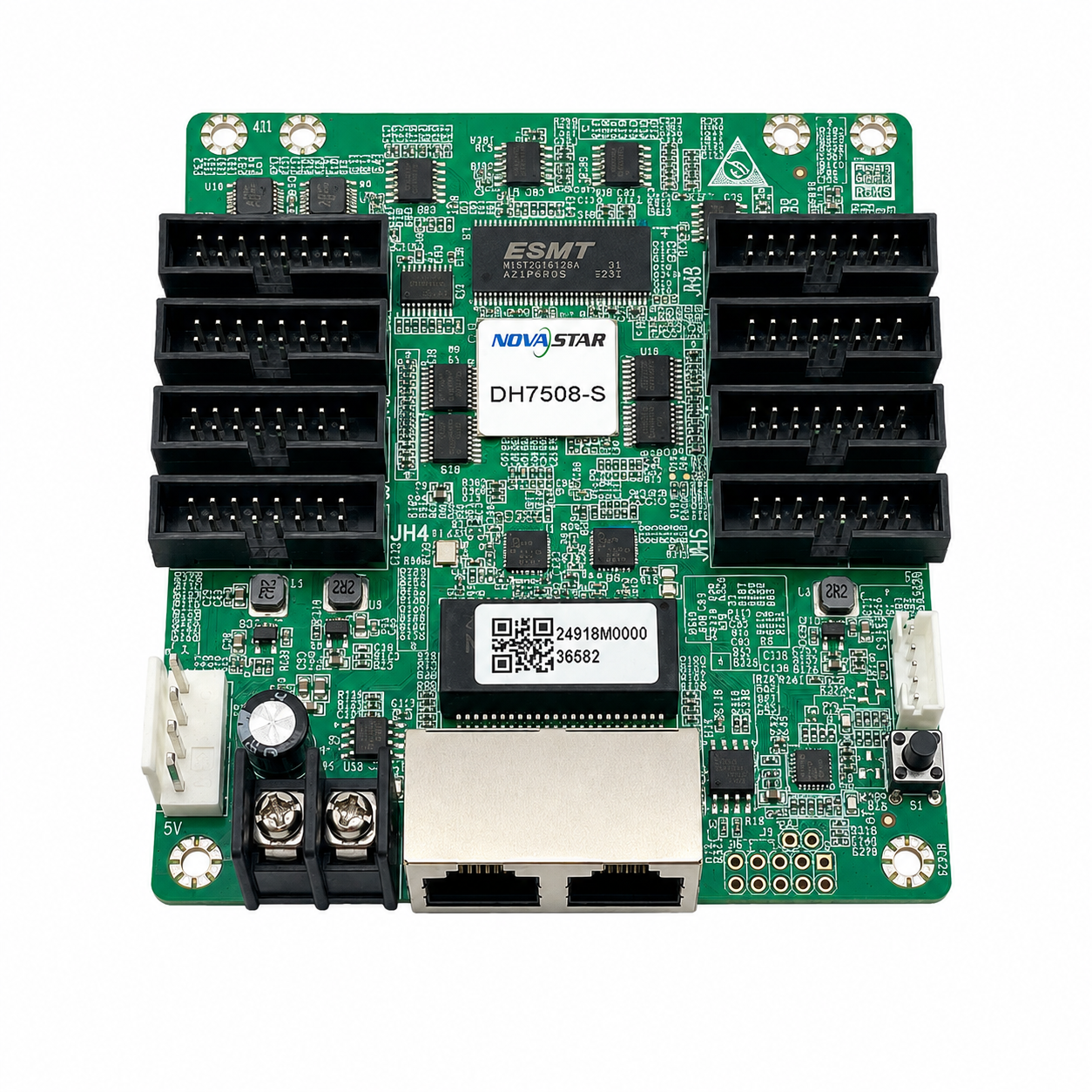

Receiving card1 pc

Optional YXC-P1.88 Receiving card

✓

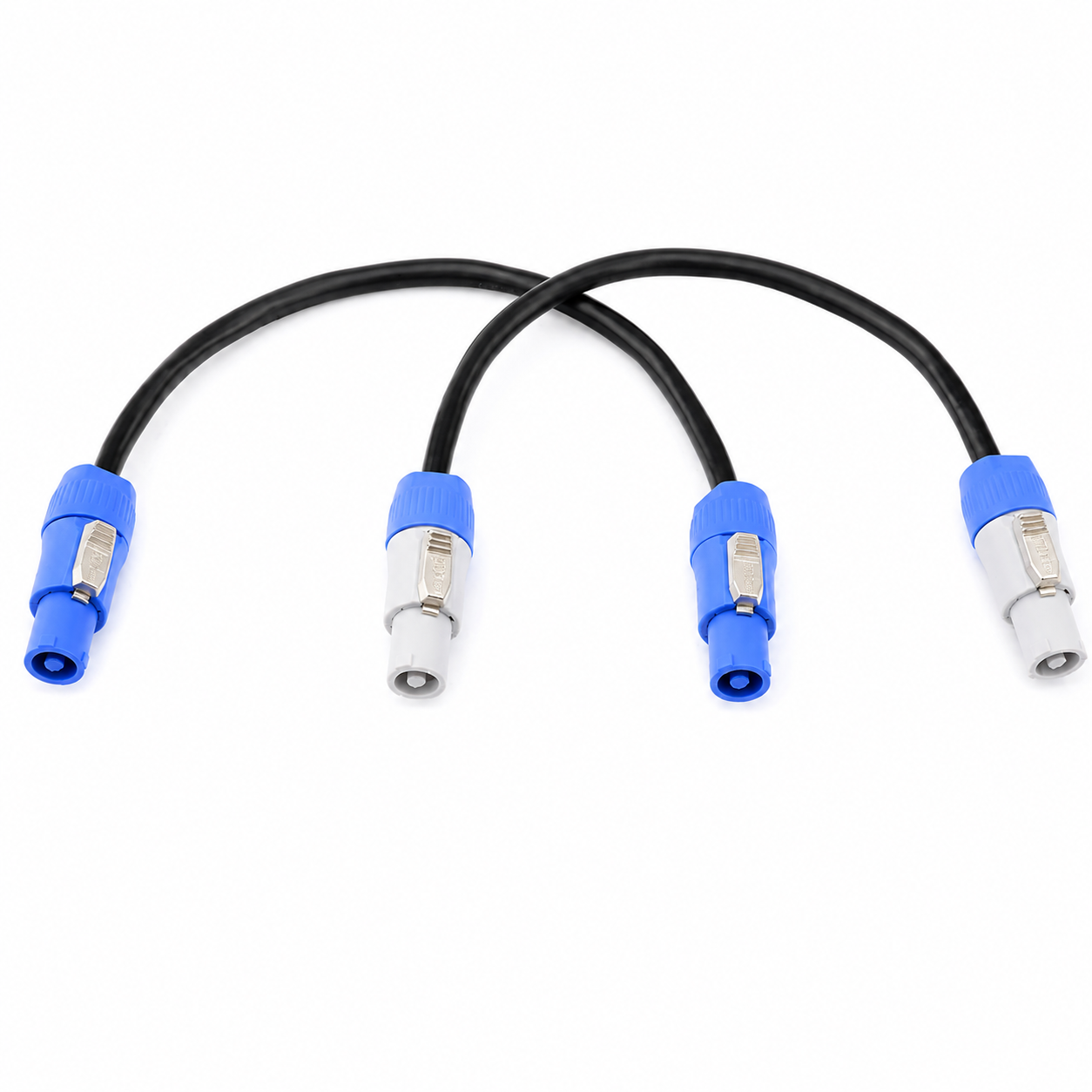

Power cable1 pc

Included YXC-P1.88 Power cable

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-P1.88

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.

▦ QR · PRIVATEAsk about order support →
