Verified product model

YXC-BF380

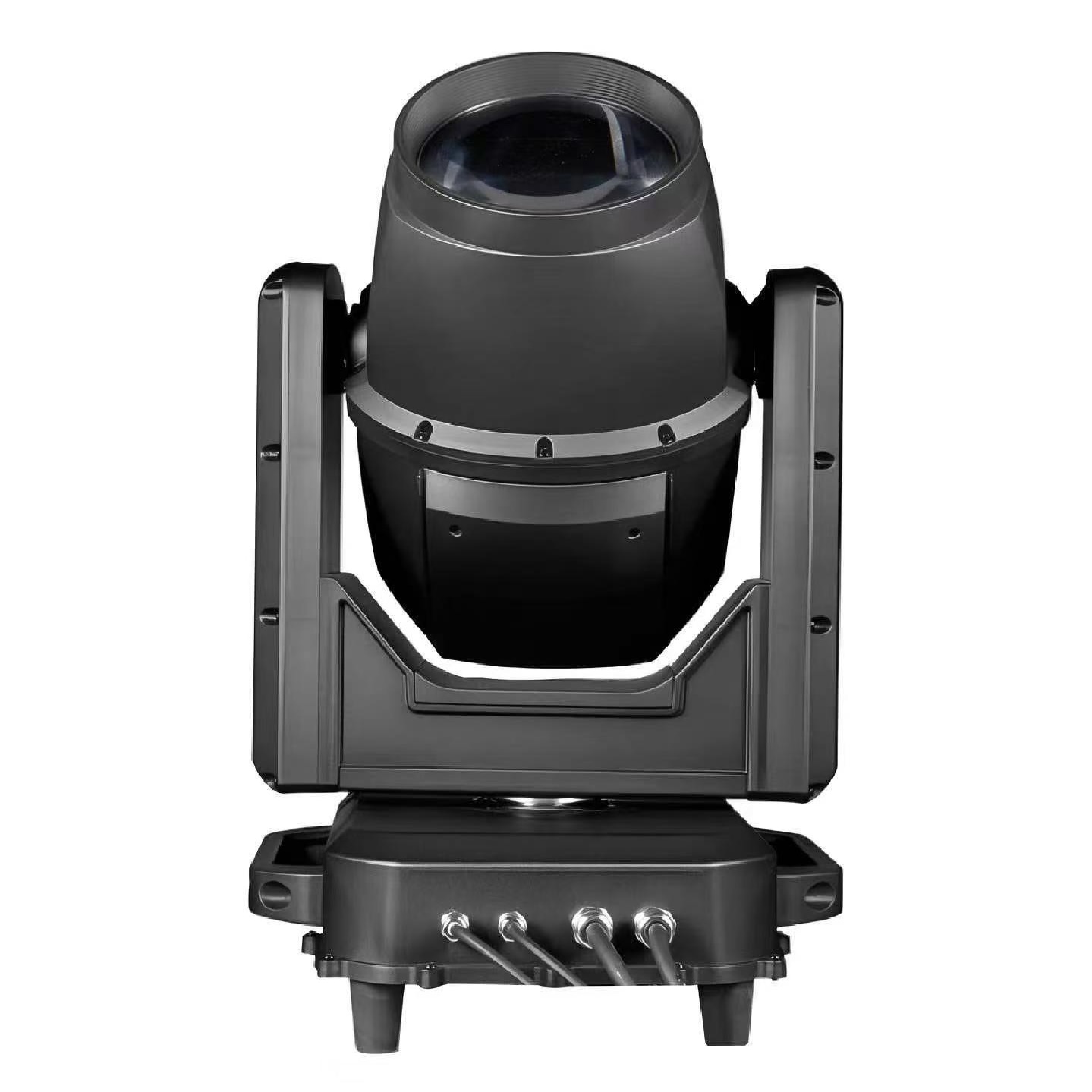

Waterproof 380W Beam Moving Head Light YXC-BF380

Name: Waterproof 380W Beam Moving Head Light YXC-BF380
Brand: Lucky Star
SKU: YXC-BF380

A 380W waterproof beam moving head light featuring IP55 protection, color and pattern switching, prism effects, electronic focusing, and DMX512/RDM control to deliver focused beams and dynamic stage effects. Ideal for rental companies, lighting engineers, event planners, and venue operators for outdoor performances, music festivals, weddings, cultural tourism light shows, and stage atmosphere creation.

BUILT FOR

Concert stagesFestivalsTouring productionsTheatresClubs and barsCorporate events

PUBLIC RESOURCES & CONTROL FILES

D4NEW_380.d4↓R20NEW_380.R20↓PDF防水380光束英文.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-BF380Waterproof 380W Beam Moving Head Light YXC-BF380

CURRENT PRODUCTProduct demonstration

Specifications

Wide voltage rangeAC 90V-235V 50-60Hz

Wide-voltage driving power supply600W

Light source system380W · Color temperature; 8000K

Color SystemColor Wheel: 12+1

Pattern SystemPattern Disk: 13 Fixed Patterns + 1 White Light (Including 3 Glass Patterns)

Focusing systemElectronic focusing · Atomization; equipped with atomization function to achieve a soft light effect · Stroboscopic; Independent strobe effect, 0.5-20 times per second, adjustable speed

MotorThe XY axis employs a silent high-power motor, ensuring high stability in fast and slow speeds of the luminaire and precise positioning angles!

Dimming Curve0%-100% linear dimming, smooth and flicker-free

Beam angle2-5°

Dual-channel16 channels or 20 channels

Lens diameter152mm

Waterproof ratingIP55

Control Method 1DMX 512, self-walking, master-slave self-walking, RDM function, capable of using large-scale control · The device controls the remote setting of the address code

Prism system8 prisms and (8+16+24) prisms (prisms can be configured according to customer requirements).

Display screenTouchscreen display

Level540° rotation, resolution 8/16 Bit, with fine adjustment

Vertical270° rotation, 8/16-bit resolution, with fine adjustment.

Cooling systemUtilizes physical fan cooling methods,

Packaging dimensions58*46*42cm (one piece per box)

Gross weight17kg

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

Flight case1 pc

Optional YXC-BF380 Flight case

✓

Power cord1 pc

Included YXC-BF380 Power cord

✓

Signal cable1 pc

Included YXC-BF380 Signal cable

Lighting clamp2 pcs

Optional YXC-BF380 Lighting clamp

✓

Safety cable1 pc

Included YXC-BF380 Safety cable

✓

Technical specification sheet1 pc

Included YXC-BF380 Technical specification sheet

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-BF380

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.

▦ QR · PRIVATEAsk about order support →
