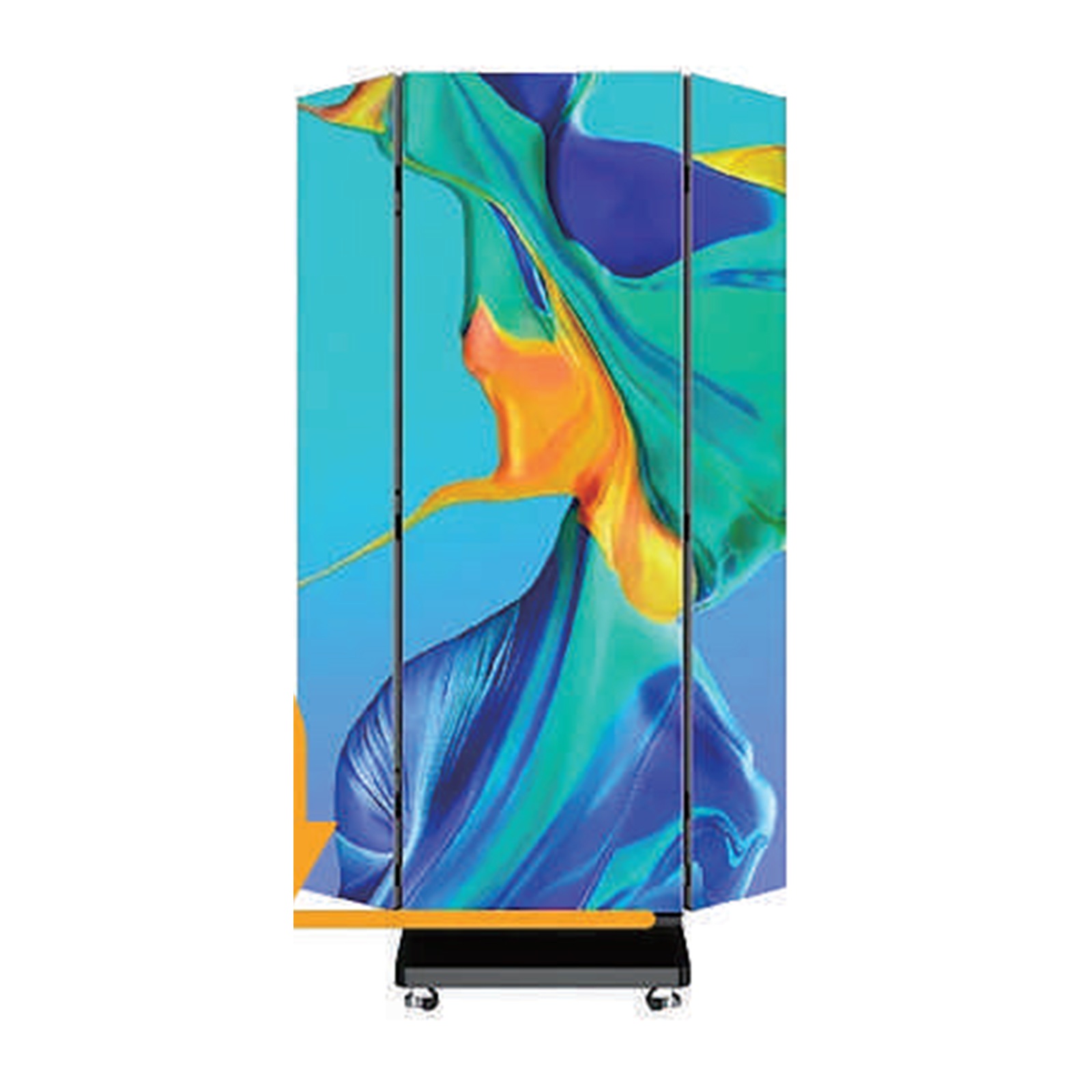

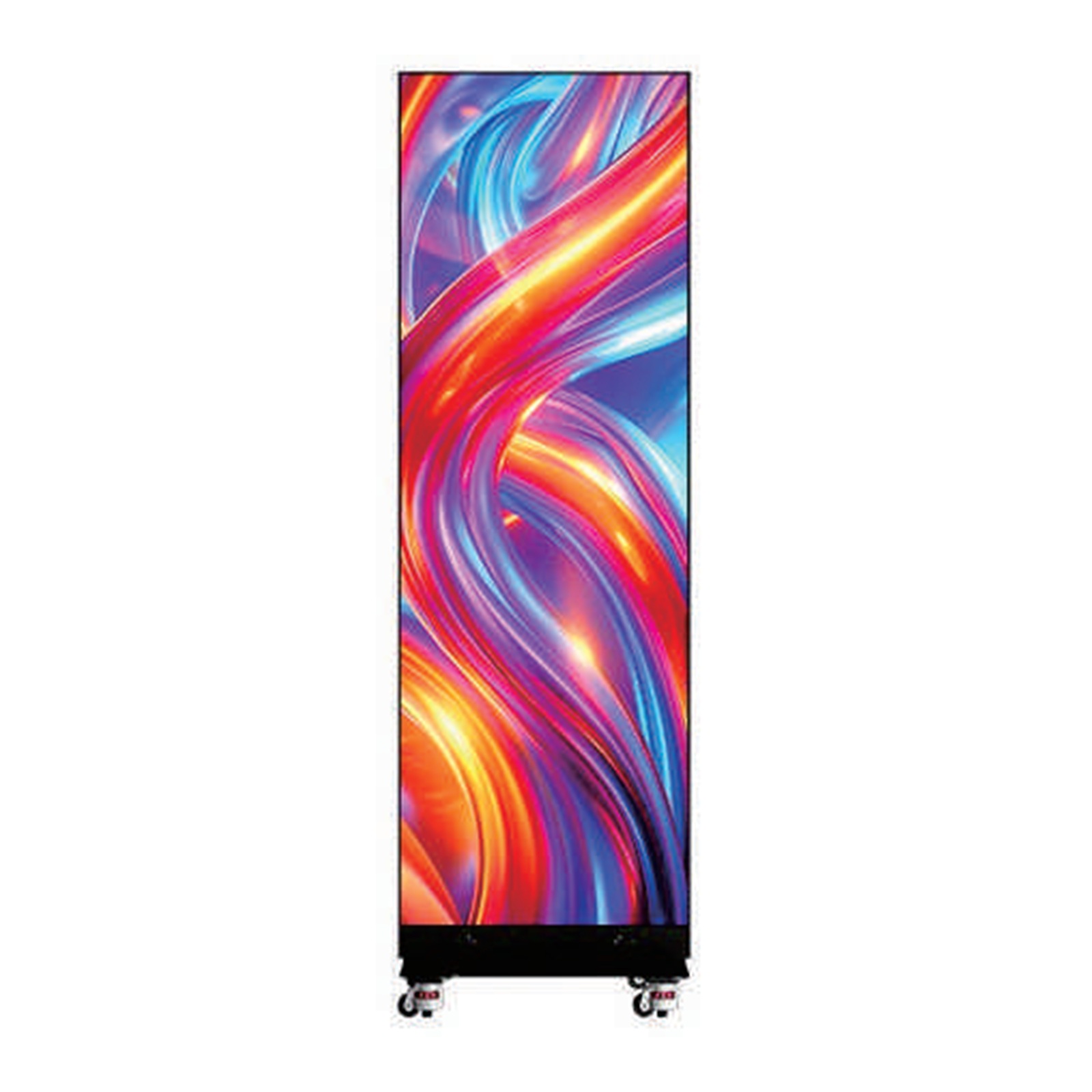

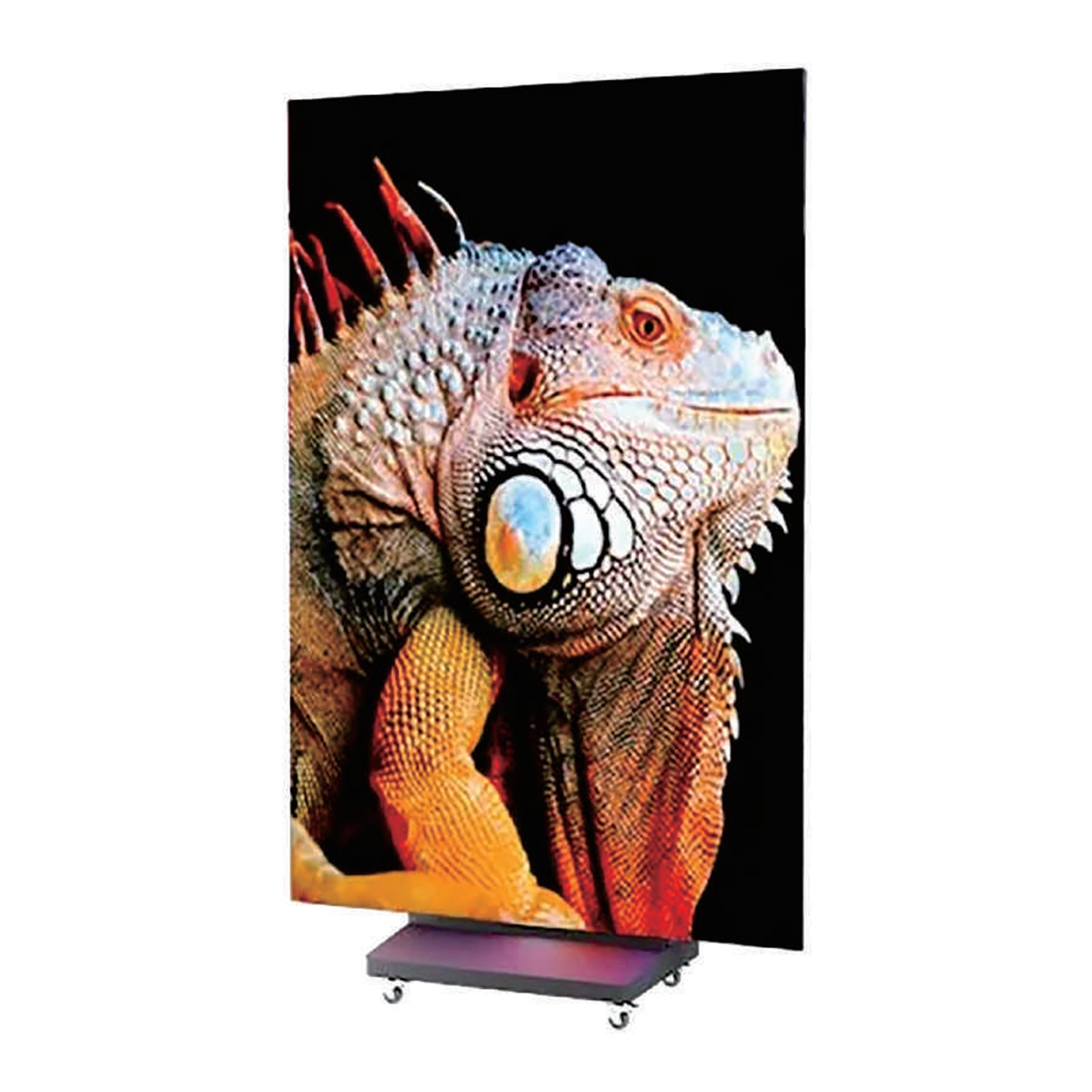

Triple-Fold LED Poster Screen YXC-TP1280

Name: Triple-Fold LED Poster Screen YXC-TP1280
Brand: Lucky Star
SKU: YXC-TP1280

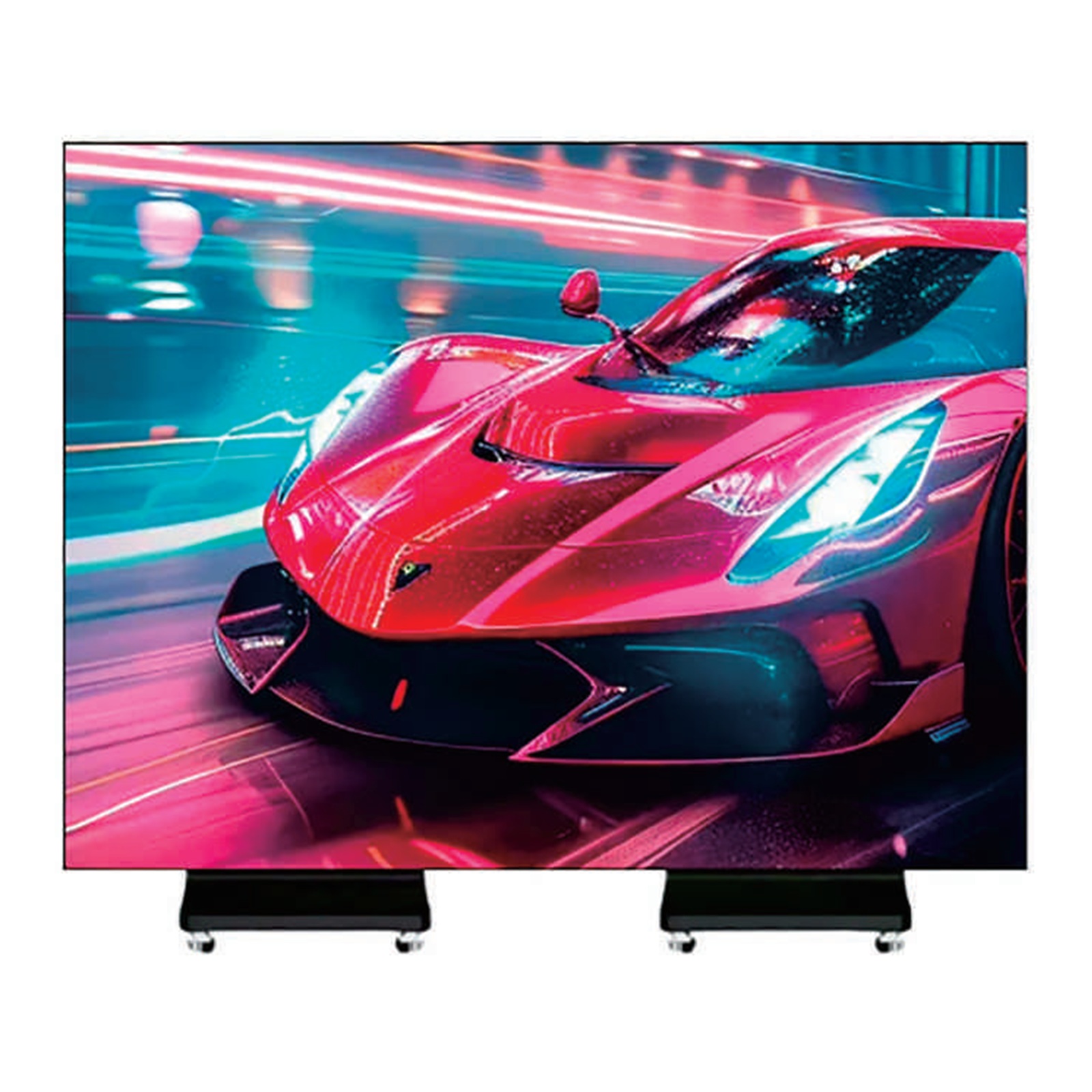

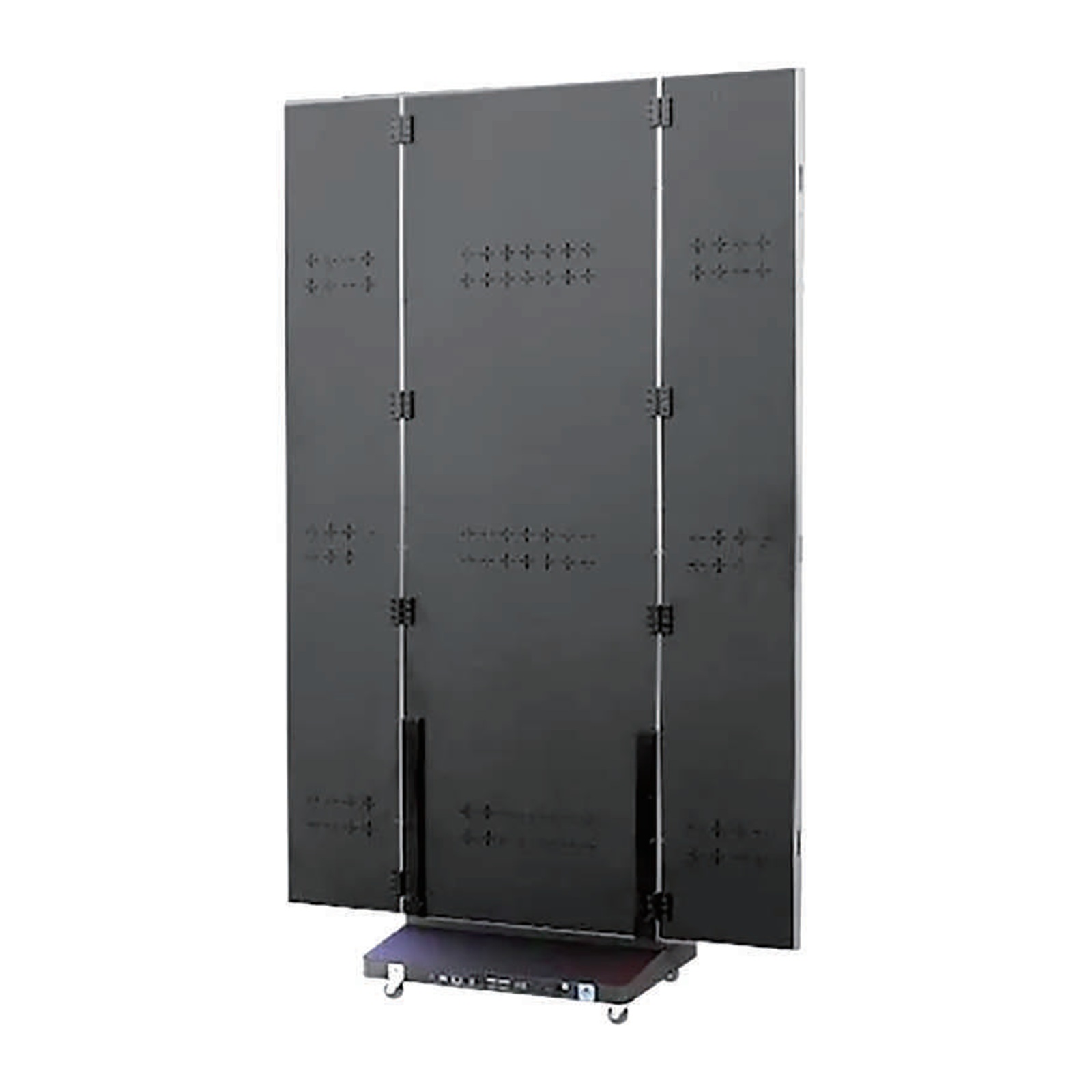

Features a triple-fold structure supporting double-sided display. Folds for easy mobility and storage, and unfolds to expand the display area. Supports standalone use or seamless multi-unit splicing for indoor advertising and commercial display.

BUILT FOR

Live eventsRental fleetsHouses of worshipRetail storesSports venuesCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDFYXC-TP1280_Product_Guide.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-TP1280Triple-Fold LED Poster Screen YXC-TP1280

CURRENT PRODUCTProduct demonstration

Specifications

Pixel Pitch1.5381.8622.5

Module Resolution208×104172×86||| 128×64—

Module Size (W×H)320×160mm

pcs)0.45kg

Module Quantity (W×H)4×12

m²)422753289050250000160000

Cabinet Resolution (W×H)816×1248688×1032640×960512×768

Cabinet Size (W×H)Unfolding: W1280×H1920mm (Includes feet: W646×H2060mm×L550mm)

Whole set size (mm)Unfolding: W1280×H2070mm (Includes wheel stand)

pcs)78

Cabinet MaterialAluminum

Ingress ProtectionIP65 the front, IP30 the back

Color Temperature (K)3,200-12,000 (Adjustable)

Brightness (nits)600

View AngleH.140°/V.140°

Contrast Ratio4,000:1

Max. Power Consumption1200W/PCS900W/PCS||| 850W/PCS—

Avg. Power Consumption400W/PCS300W/PCS||| 220W/PCS—

Working VoltageAC110/220V

Refresh Rate (Hz)≥3840Hz

Lifetime (Hrs)50,000

Controller BrandNovastar (Default), Colorlight, HuiDu

ConnectivityHDMI, Ethernet, RS232 control via USB

Working Temperature-10°C~40°C

Storage Temperature-20°C~60

Working Humidity10-80%RH

Storage Humidity10-80%RH

ApplicationIndoor Only

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

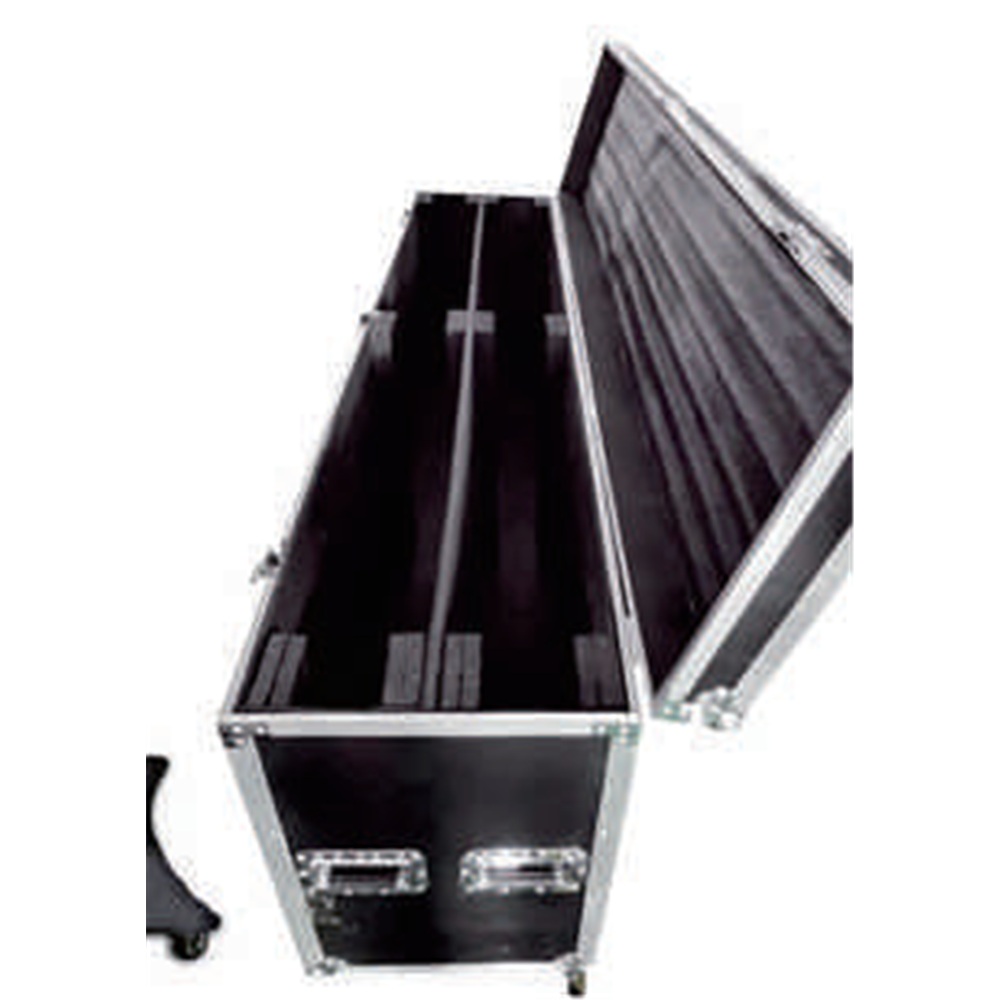

Flight case1 pc

Optional YXC-TP1280 Flight case

✓

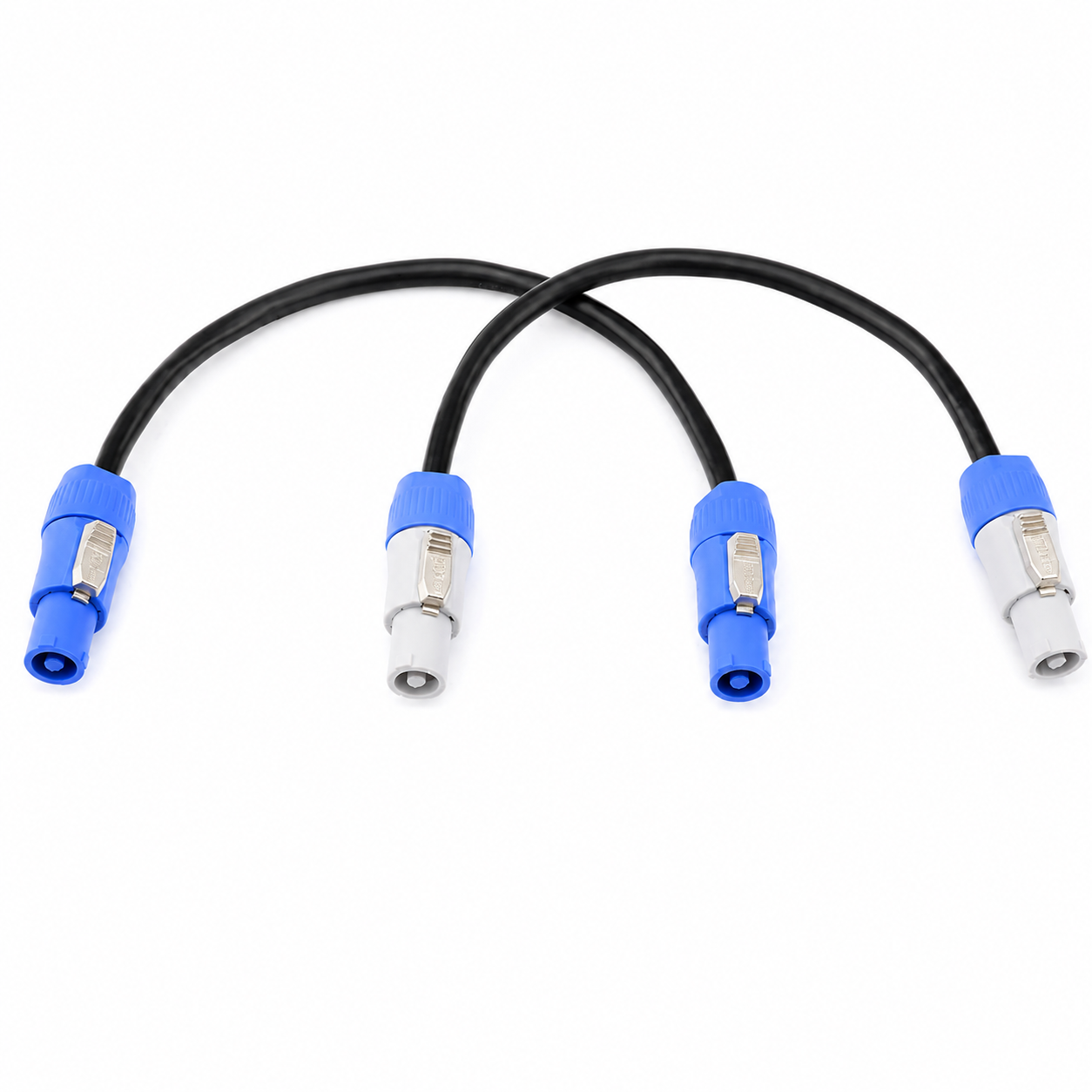

Power cable1 pc

Included YXC-TP1280 Power cable

✓

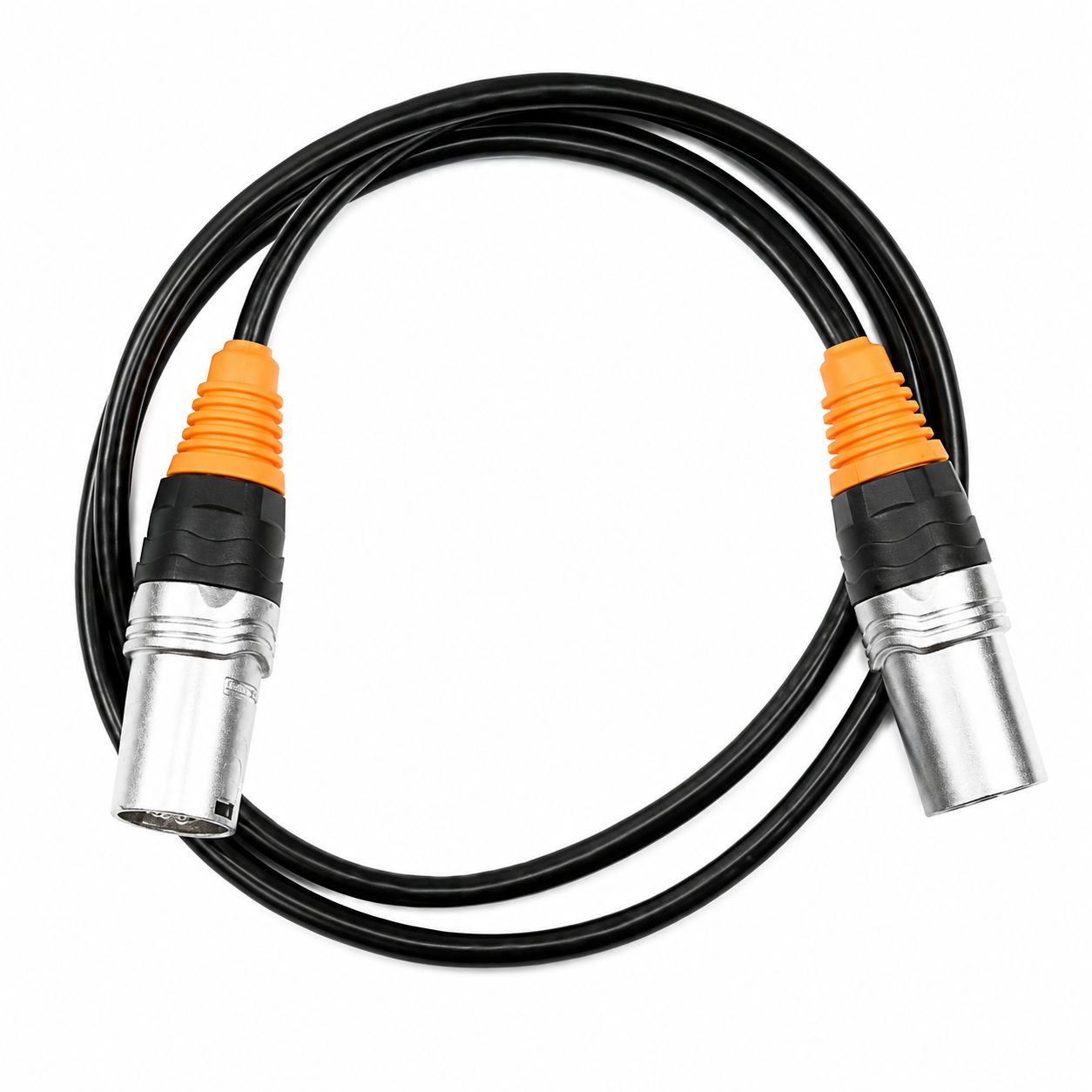

LED network signal cable1 pc

Included YXC-TP1280 LED network signal cable

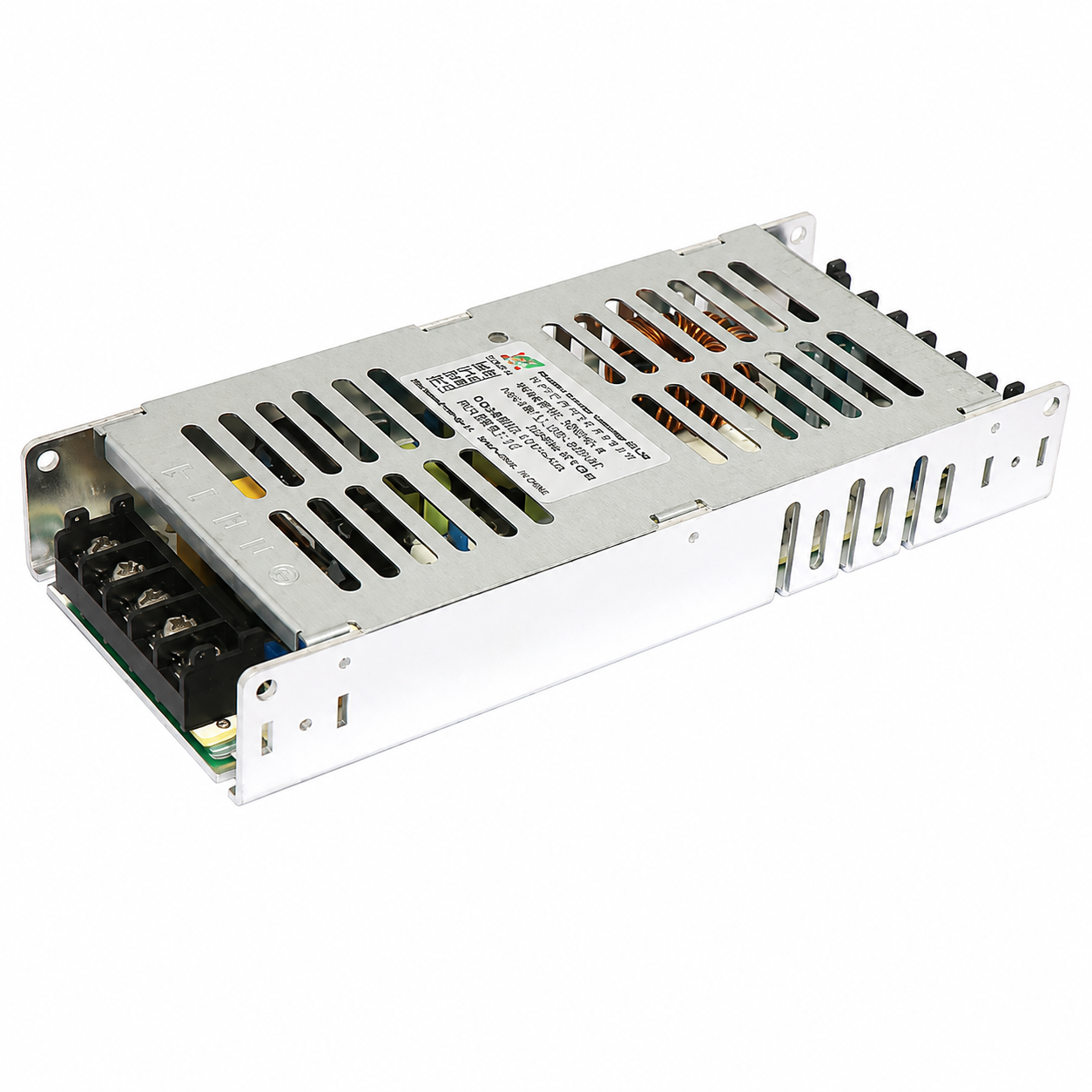

Power supply1 pc

Optional YXC-TP1280 Power supply

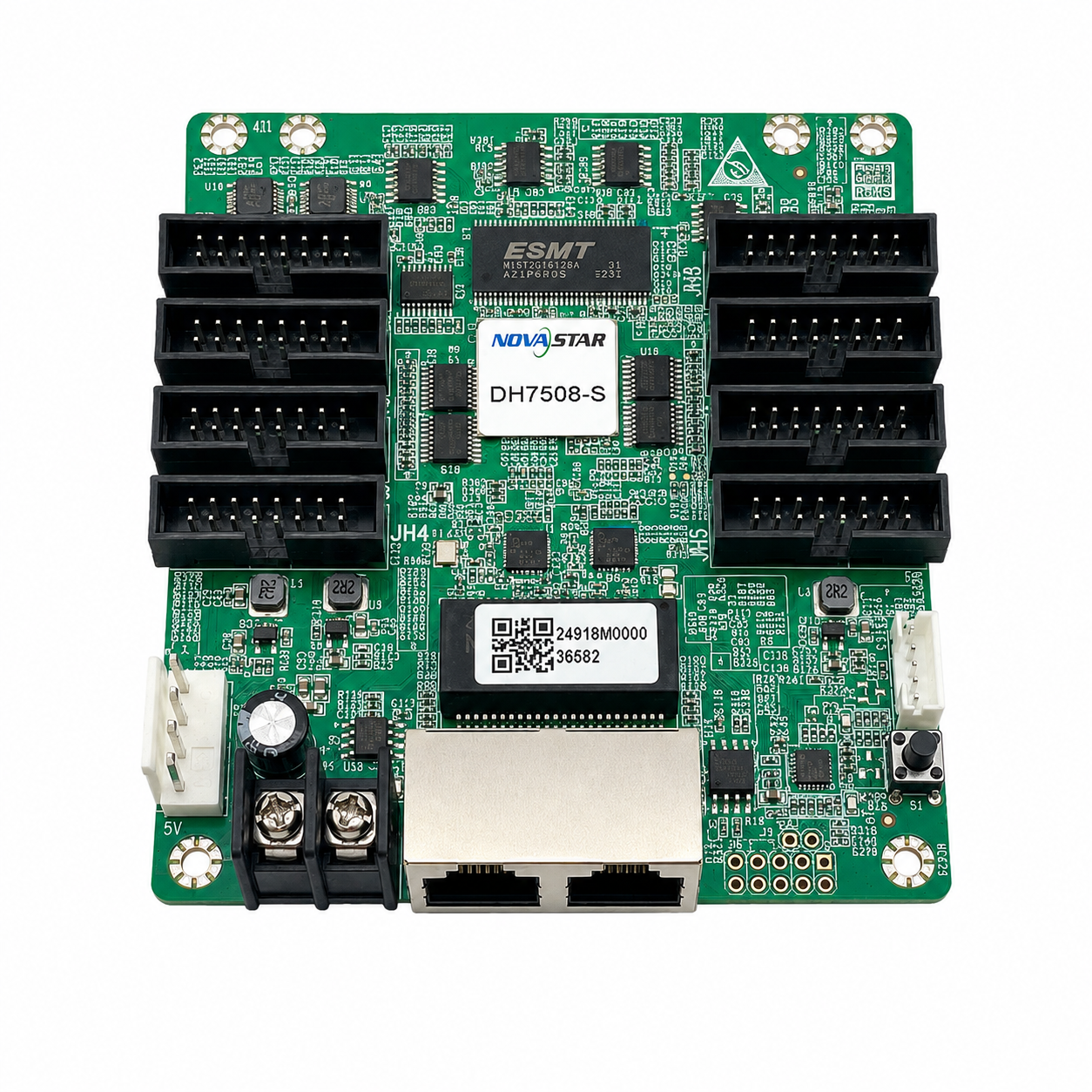

Receiving card1 pc

Optional YXC-TP1280 Receiving card

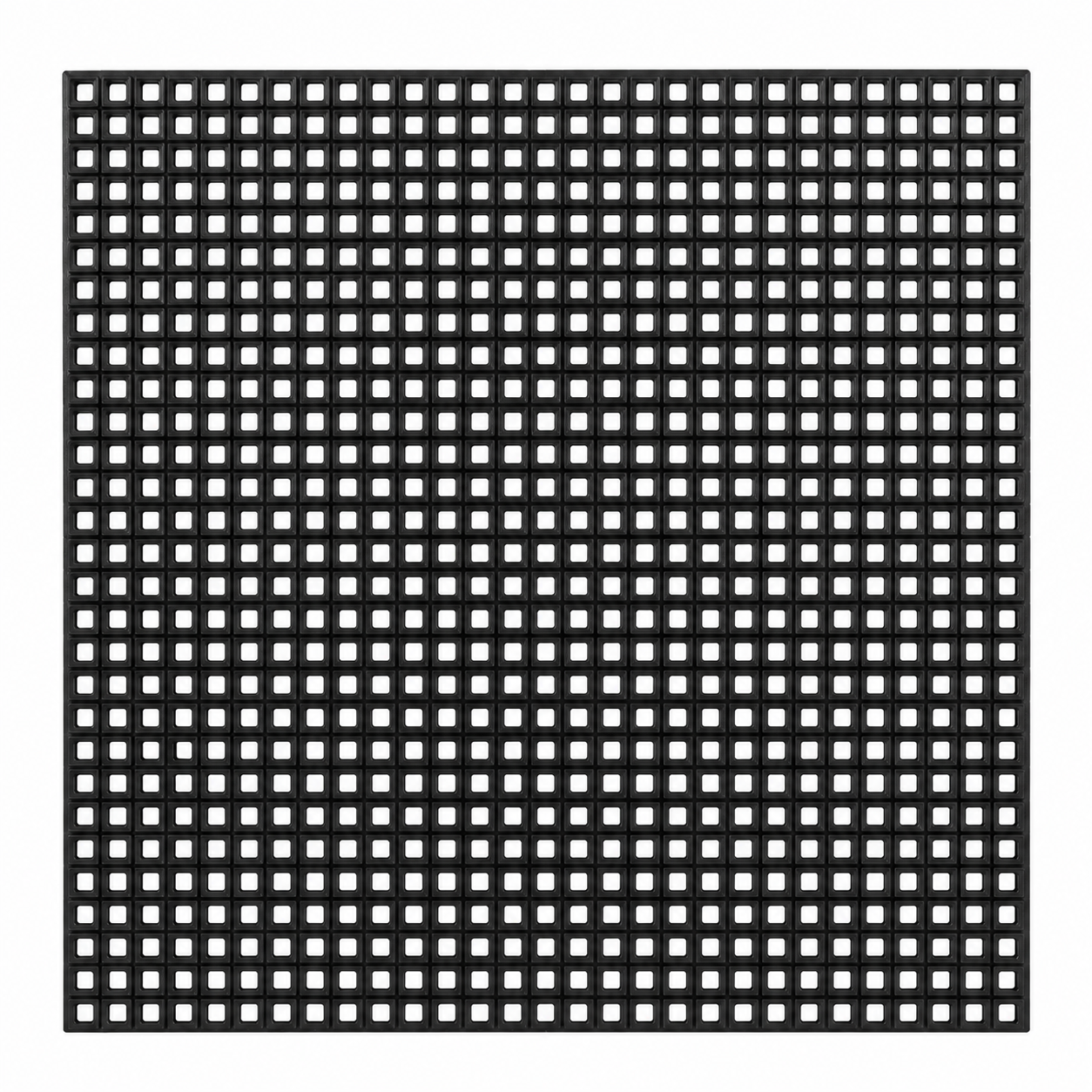

LED module mask1 pc

Optional YXC-TP1280 LED module mask

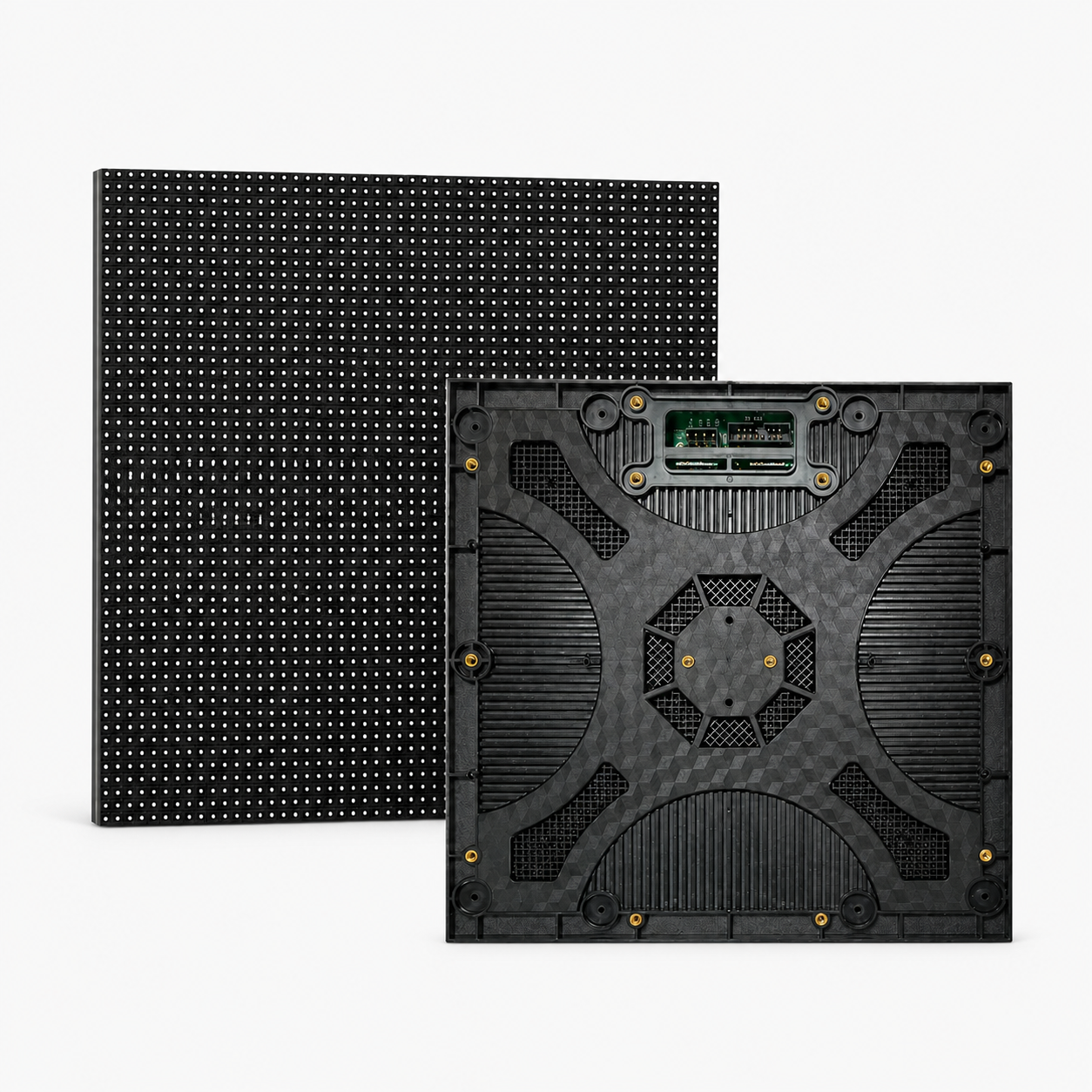

LED module1 pc

Optional YXC-TP1280 LED module

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-TP1280

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
