YXC-T500/T1000 RENTALGet a Quote

Verified product model

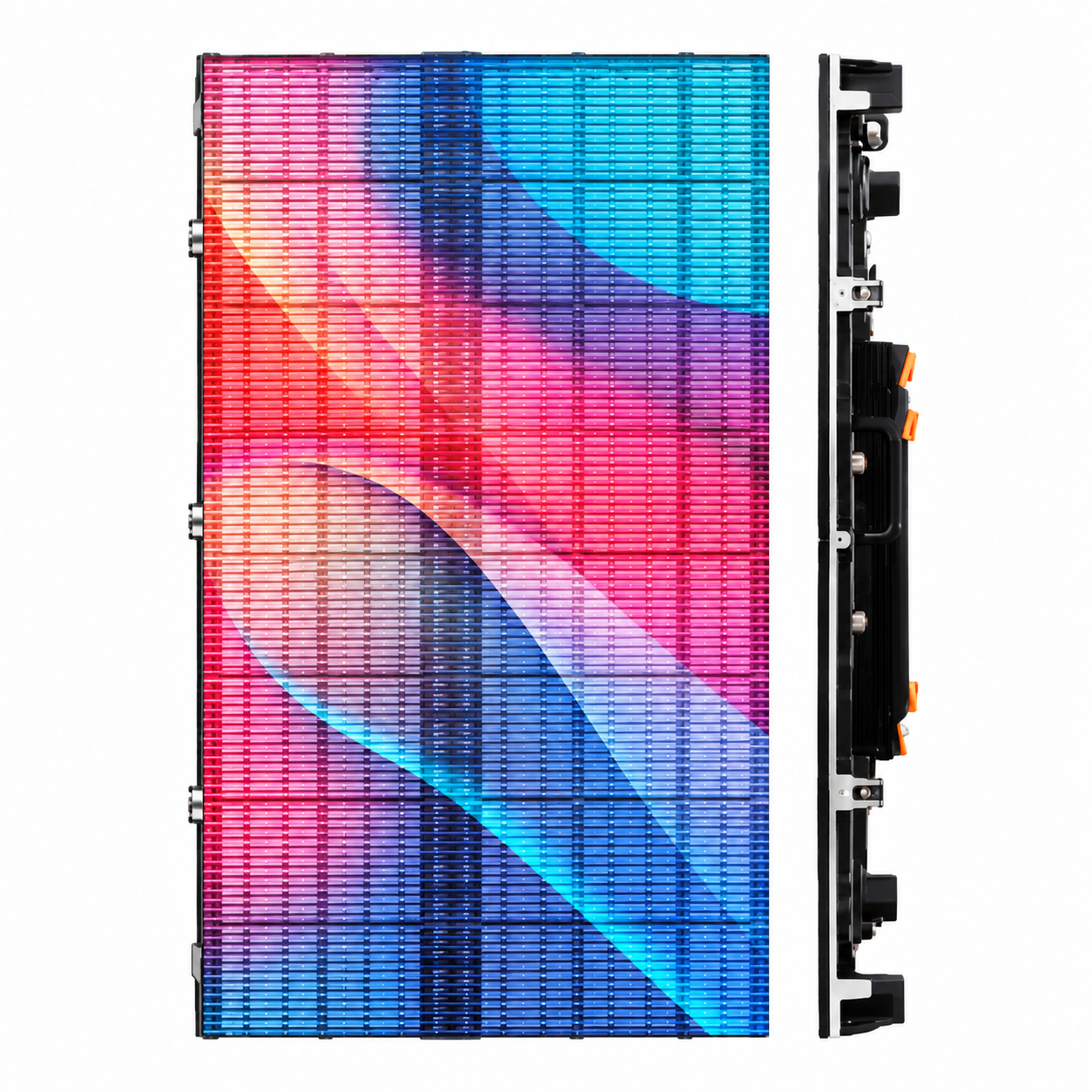

YXC-T500/T1000 RENTAL

Transparent LED Display

Name: YXC-T500/T1000 RENTAL Transparent LED Display
Brand: Lucky Star
SKU: YXC-T500/T1000 RENTAL

Lightweight rental transparent LED display featuring high transparency, high brightness, fast installation, and reliable protection, ideal for frequent setup and dismantling. Perfect for stage performances, exhibitions, commercial events, brand launches, window displays, and outdoor activities.

BUILT FOR

Rental fleetsLive eventsConcert stagesSports venuesCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDFYXC-T500-T1000-RENTAL-Product-Specification.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-T500/T1000 RENTALYXC-T500/T1000 RENTAL Transparent LED Display

CURRENT PRODUCTProduct demonstration

Specifications

Technical ParameterP2.6-5.2P3.9-7.8P7.8-7.8

Pixel Pitch2.6-5.23.9-7.87.8-7.8

Density73,964 dots/m²32,875 dots/m²16,436 dots/m²

LED TypeSMD1921SMD1921SMD3535

Panel Size1000×500mm1000×500mm1000×500mm

Panel Resolution384×96 dots256×64 dots128×32 dots

Transparency60%75%80%

Panel MaterialAluminumAluminumAluminum

Screen Weight3.5KG3.5KG3.5KG

Drive Method1/32 Scan1/28 Scan1/16 Scan

Best Viewing Distance2.5–50m4–80m8–80m

Brightness4000 nits4000 nits4500 nits

Refresh Rate3840Hz3840Hz3840Hz

Input VoltageAC110V/127V ±10%AC110V/127V ±10%AC110V/127V ±10%

Max Power Consumption400W400W400W

Average Power Consumption200W200W200W

Rear)Front IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54

ApplicationIndoor & OutdoorIndoor & OutdoorIndoor & Outdoor

Life Span100,000 Hours100,000 Hours100,000 Hours

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

Flight case1 pc

Optional YXC-T500/T1000 RENTAL Flight case

✓

Power cable1 pc

Included YXC-T500/T1000 RENTAL Power cable

✓

LED network signal cable1 pc

Included YXC-T500/T1000 RENTAL LED network signal cable

Power supply1 pc

Optional YXC-T500/T1000 RENTAL Power supply

Receiving card1 pc

Optional YXC-T500/T1000 RENTAL Receiving card

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-T500/T1000 RENTAL

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.

▦ QR · PRIVATEAsk about order support →
