YXC-T1000L FIXED INDOOR

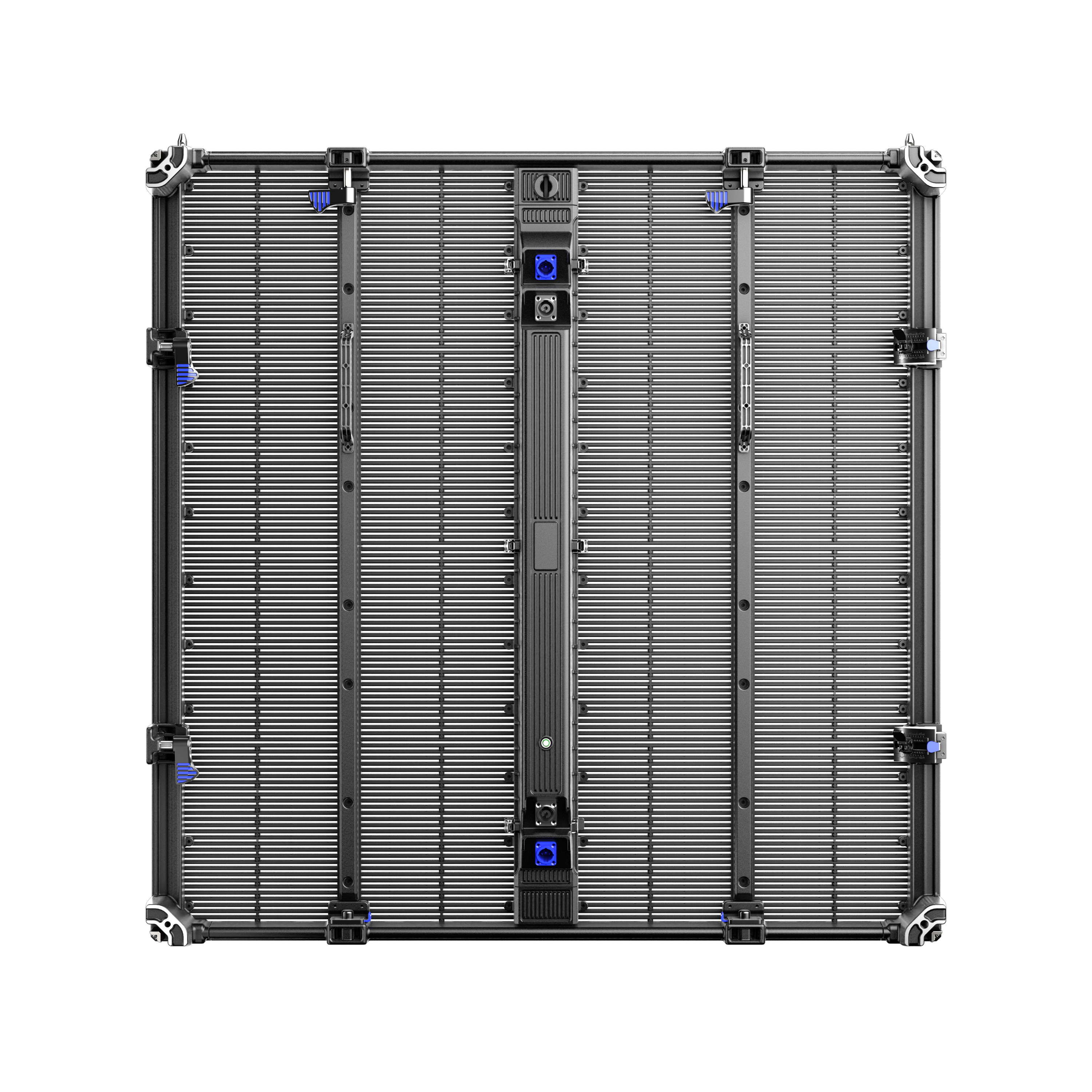

Écran LED Transparent YXC-T1000L FIXE INTÉRIEUR

Name: Écran LED Transparent YXC-T1000L FIXE INTÉRIEUR
Brand: Lucky Star
SKU: YXC-T1000L FIXED INDOOR

Écran LED d'installation fixe intérieure conçu pour afficher des vidéos, des images et du texte. Applications incluant la publicité, les conférences et les halls d'exposition pour centres commerciaux et hôtels.

BUILT FOR

CommercesInstallations sportivesÉvénements d’entreprise

PUBLIC RESOURCES & CONTROL FILES

PDFYXC-T1000L_Specification.pdf↓

PROJECT SUPPORTDemander un devis→ORDER ACCESSFichiers de chargement de la commandeQR →

Voir les vidéos Spécifications

PRODUCT IN MOTION

Vidéos produit

YXC-T1000L FIXED INDOORÉcran LED Transparent YXC-T1000L FIXE INTÉRIEUR

CURRENT PRODUCTVidéo de démonstration

Spécifications

Technical ParameterP2.6-5.2P3.9-7.8P7.8-7.8

Pixel Pitch2.6-5.23.9-7.87.8-7.8

Density73,964 dots/m²32,875 dots/m²16,436 dots/m²

LED TypeSMD1921SMD1921SMD3535

Panel Size1000×500mm1000×500mm1000×500mm

Panel Resolution384×96 dots256×64 dots128×32 dots

Transparency60%75%80%

Panel MaterialAluminumAluminumAluminum

Screen Weight3.5KG3.5KG3.5KG

Drive Method1/32 Scan1/28 Scan1/16 Scan

Best Viewing Distance2.5–50m4–80m8–80m

Brightness4000 nits4000 nits4500 nits

Refresh Rate3840Hz3840Hz3840Hz

Input VoltageAC110V 122V+10% *AC110V 122V+10% *AC110V 122V+10% *

Max Power Consumption400W400W400W

Average Power Consumption200W200W200W

Rear)Front IP65 / Rear IP54Front IP65 / Rear IP54Front IP65 / Rear IP54

ApplicationIndoor & OutdoorIndoor & OutdoorIndoor & Outdoor

Life Span100,000 Hours100,000 Hours100,000 Hours

CLEAR QUOTATION

Contenu inclus

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

Flight case1 pc

Optional YXC-T1000L FIXED INDOOR Flight case

✓

Power cable1 pc

Included YXC-T1000L FIXED INDOOR Power cable

✓

LED network signal cable1 pc

Included YXC-T1000L FIXED INDOOR LED network signal cable

Power supply1 pc

Optional YXC-T1000L FIXED INDOOR Power supply

Receiving card1 pc

Optional YXC-T1000L FIXED INDOOR Receiving card

PERMANENT ORDER SUPPORT

Fichiers de chargement de la commande

Les fichiers de chargement et de configuration sont protégés par commande. Scannez le QR code permanent du flight case pour retrouver les bons fichiers, même des années plus tard.

1Scannez le QR code du flight case

YXC-T1000L FIXED INDOOR

2Ouvrez la page permanente de la commande

QR · PRIVATE

3Téléchargez les fichiers exacts de ce lot

Order-specific loading and configuration files are available only through the QR code supplied with your order.
