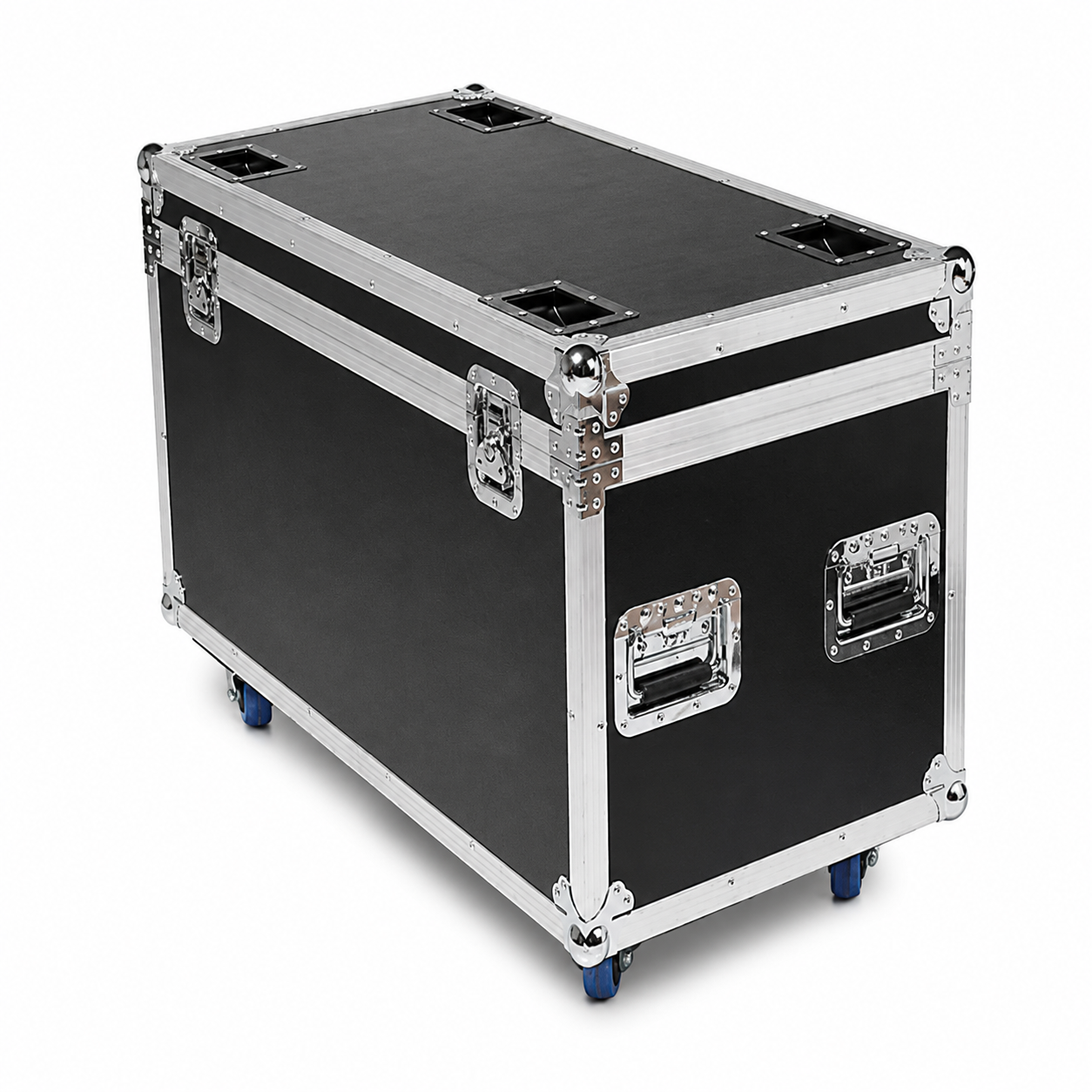

Flight case1 pc
IncludedVerified product model
YXC-P3.91-S500
P3.91 Outdoor Rental LED Display YXC-P3.91-S500

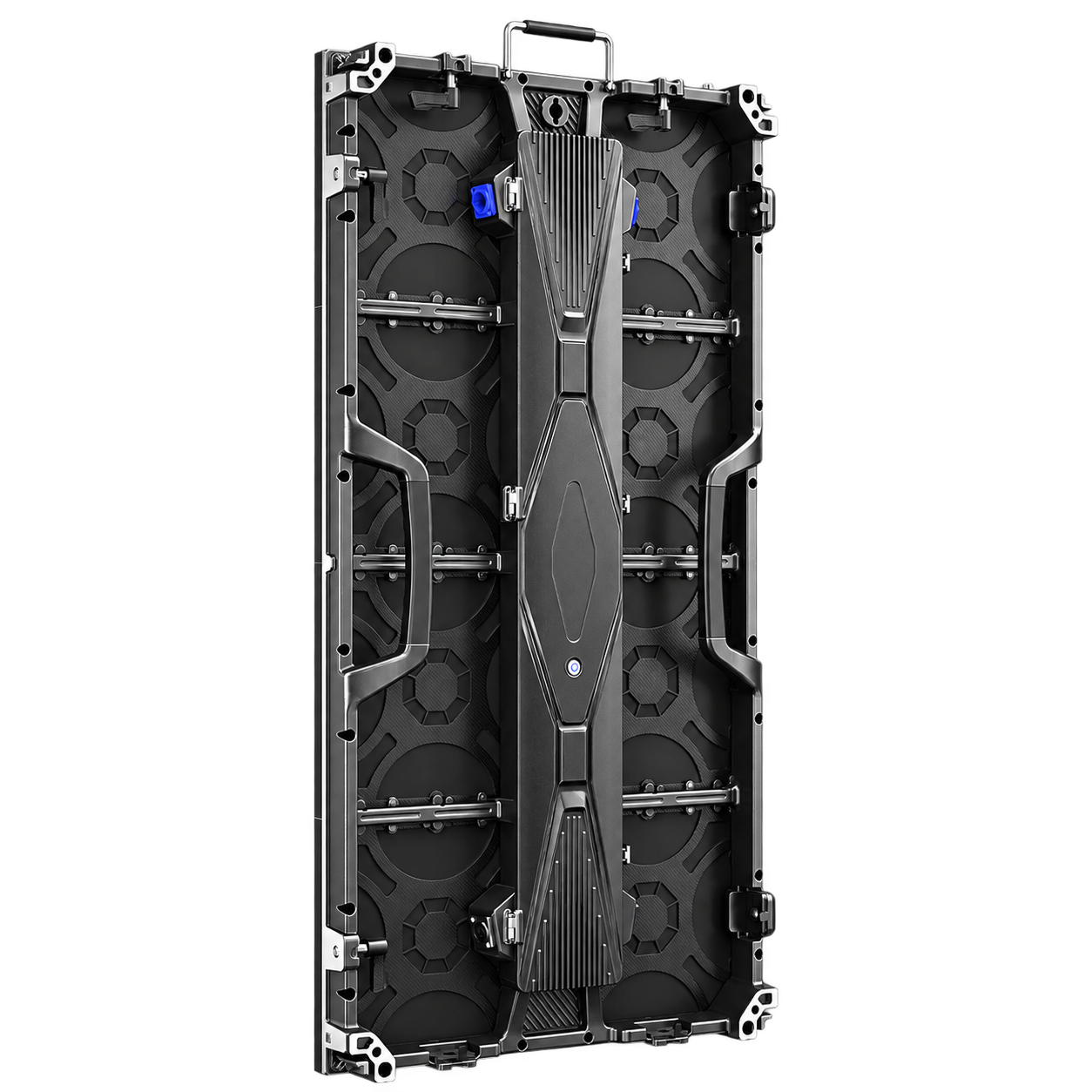

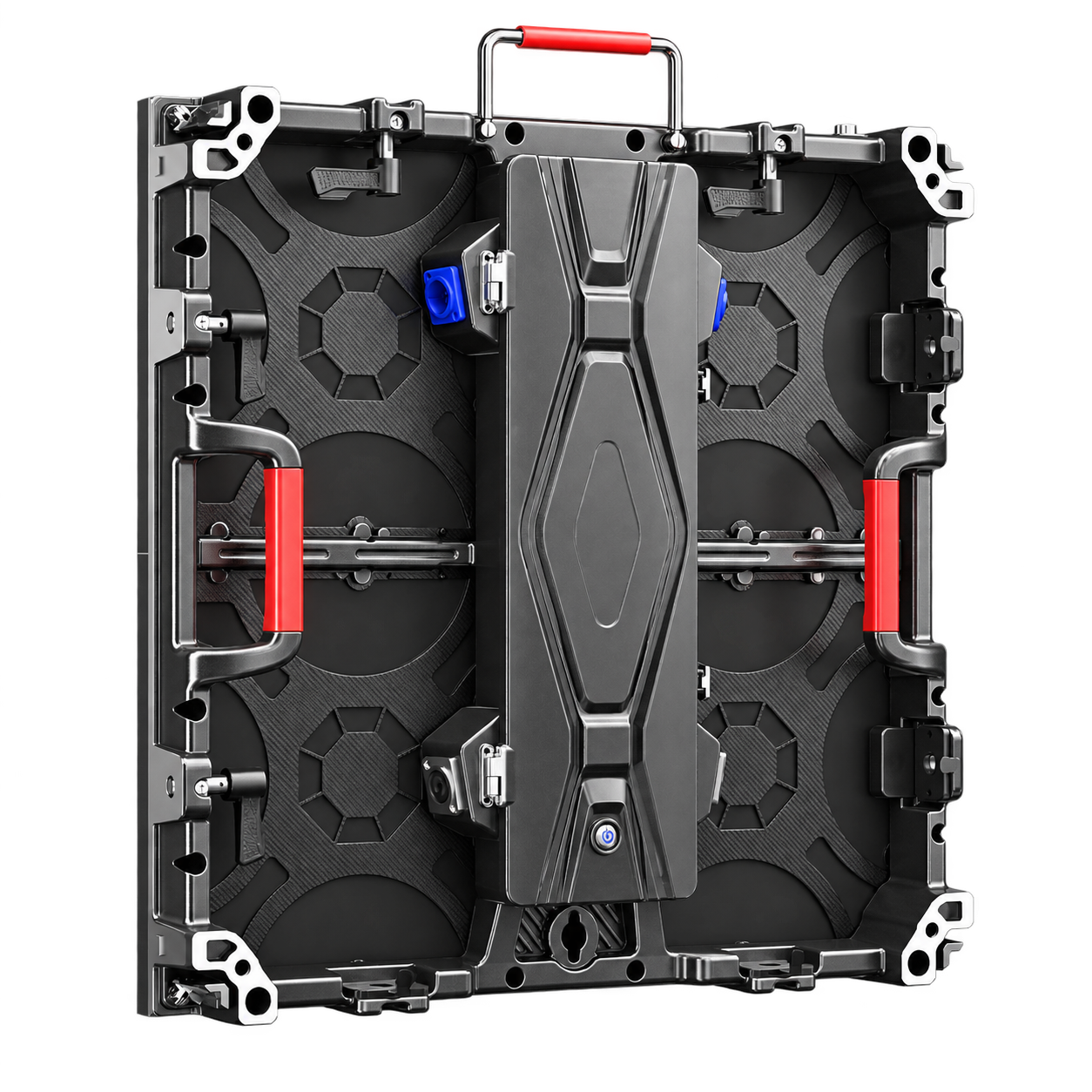

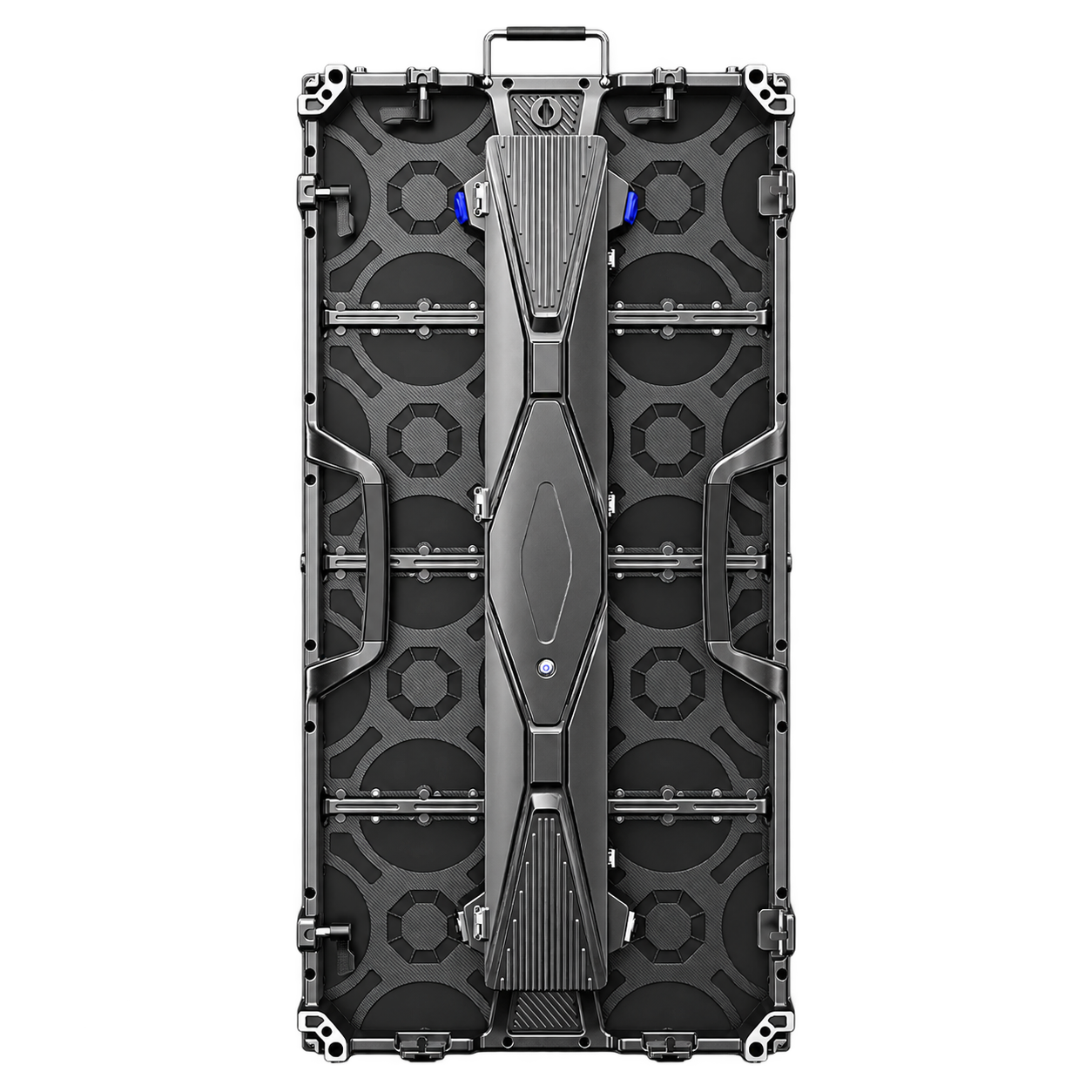

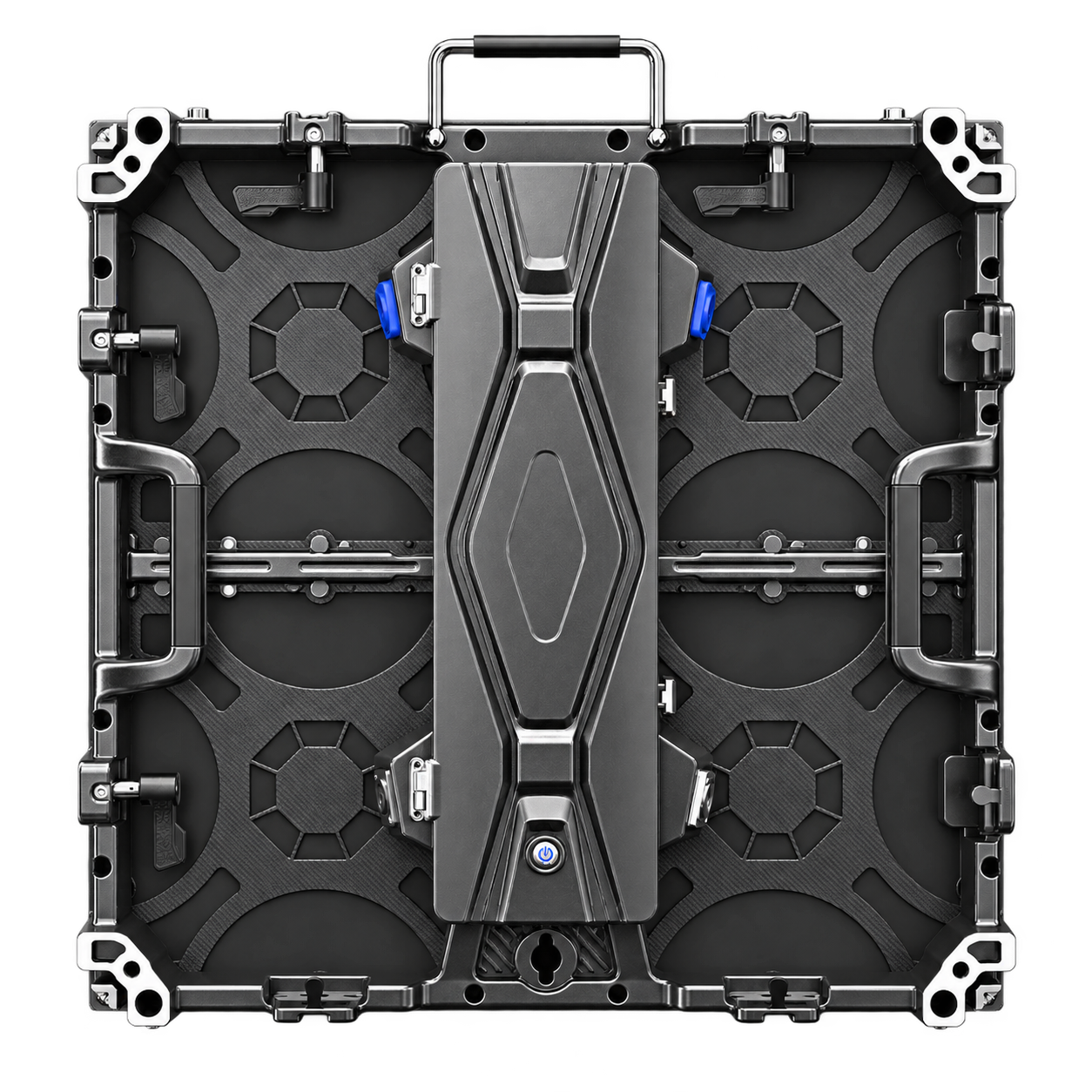

YXC-P3.91-S500 outdoor rental LED display designed with a 500x500mm standard rental cabinet for fast installation and dismantling, ideal for frequent setup and transportation. Suitable for outdoor stage performances, concerts, weddings, exhibitions, sports events, and commercial applications, providing video playback, live broadcasting, advertising display, and stage background display.
BUILT FOR
Live eventsRental fleetsConcert stagesHouses of worshipCorporate eventsSports venues
PRODUCT IN MOTION
Short product videos
YXC-P3.91-S500P3.91 Outdoor Rental LED Display YXC-P3.91-S500
CURRENT PRODUCTProduct demonstration
Specifications
Product specificationP4-8P6P8P10
Pixel pitch4mm*8mm(x*y)6mm*6mm(x*y)8mm*8mm(x*y)10mm*10mm(x*y)
Pixel31250 points/m227889 points/m215625 points/m210000 points/m2
LED specificationSMD2121(light drive in one)SMD2121(light drive in one)SMD2121(light drive in one)SMD2121(light drive in one)
Pixel composition1R1G1B1R1G1B1R1G1B1R1G1B
Module size1000mm*240mm*3mm1000mm*240mm*3mm1000mm*240mm*3mm1000mm*240mm*3mm
Module resolution250*30167*40125*30100*24
Pixel resolution250*125/m²167*167/m²125*125/m²100*100/m²
Permeability≥85%≥85%≥85%≥90%
Cabinet wiring modeInternal wiring(clean back)Internal wiring (clean back)Internal wiring(clean back)Internal wiring(clean back)
Weight≤3.5KG/m2≤3.5KG/m2≤3.5KG/m2≤3.5KG/m2
White balance brightness1200-1500cd/m²1200-1500cd/m²1200-1500cd/m²1200-1500cd/m²
White balance brightness3000-3500cd/m²3000-3500cd/m²3000-3500cd/m²3000-3500cd/m²
Peak power consumption400 W/m²400 W/m²400 W/m²400 W/m²
Average power consumptionAbout 200 W/ m²(depending on the video source)About 200 W/ m²(depending on the video source)About 200 W/ m² (depending on the video source)About 200 W/ m²(depending on the video source)
Refresh frequency≥3840s≥3840s≥3840s≥3840s
Grayscale level16Bit16Bit16Bit16Bit
Viewing angleH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degreesH-H140 degrees V-V140 degrees
Input signalDVI VGA,composite videoDVI VGA,composite videoDVI VGA,composite videoDVI VGA,composite video
Control screen modeOr synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen)
CLEAR QUOTATION
What is included
The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

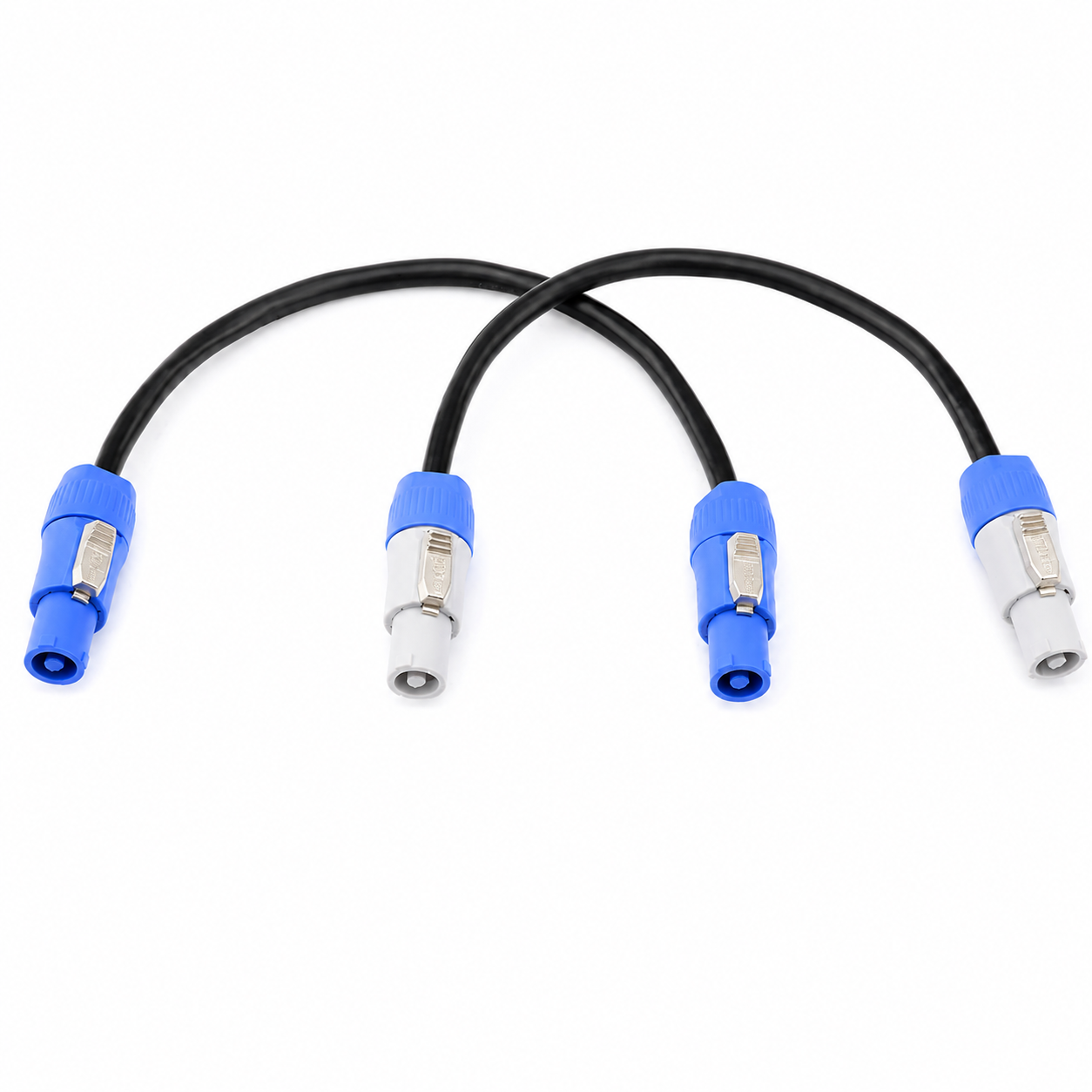

Power cable1 pc

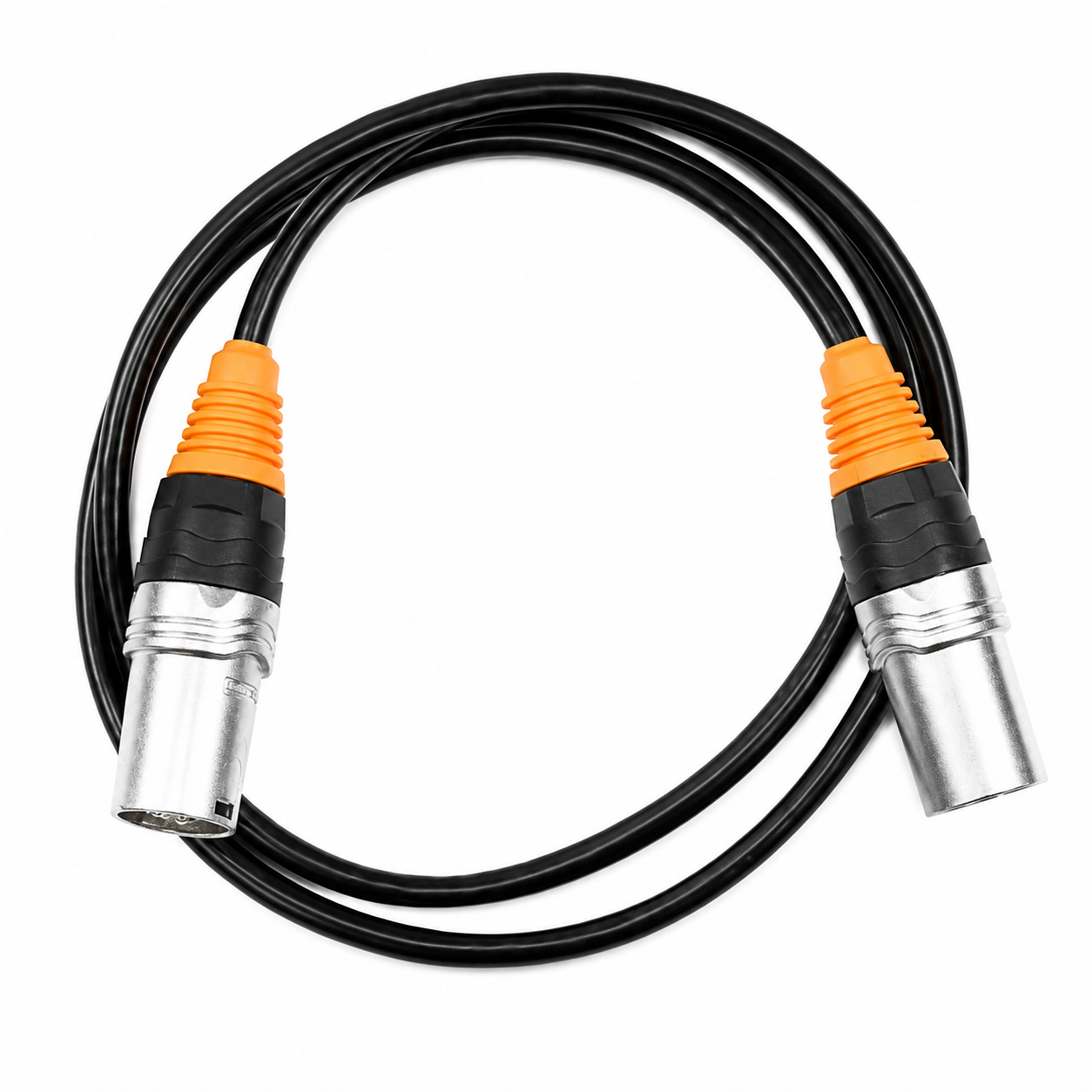

IncludedLED network signal cable1 pc

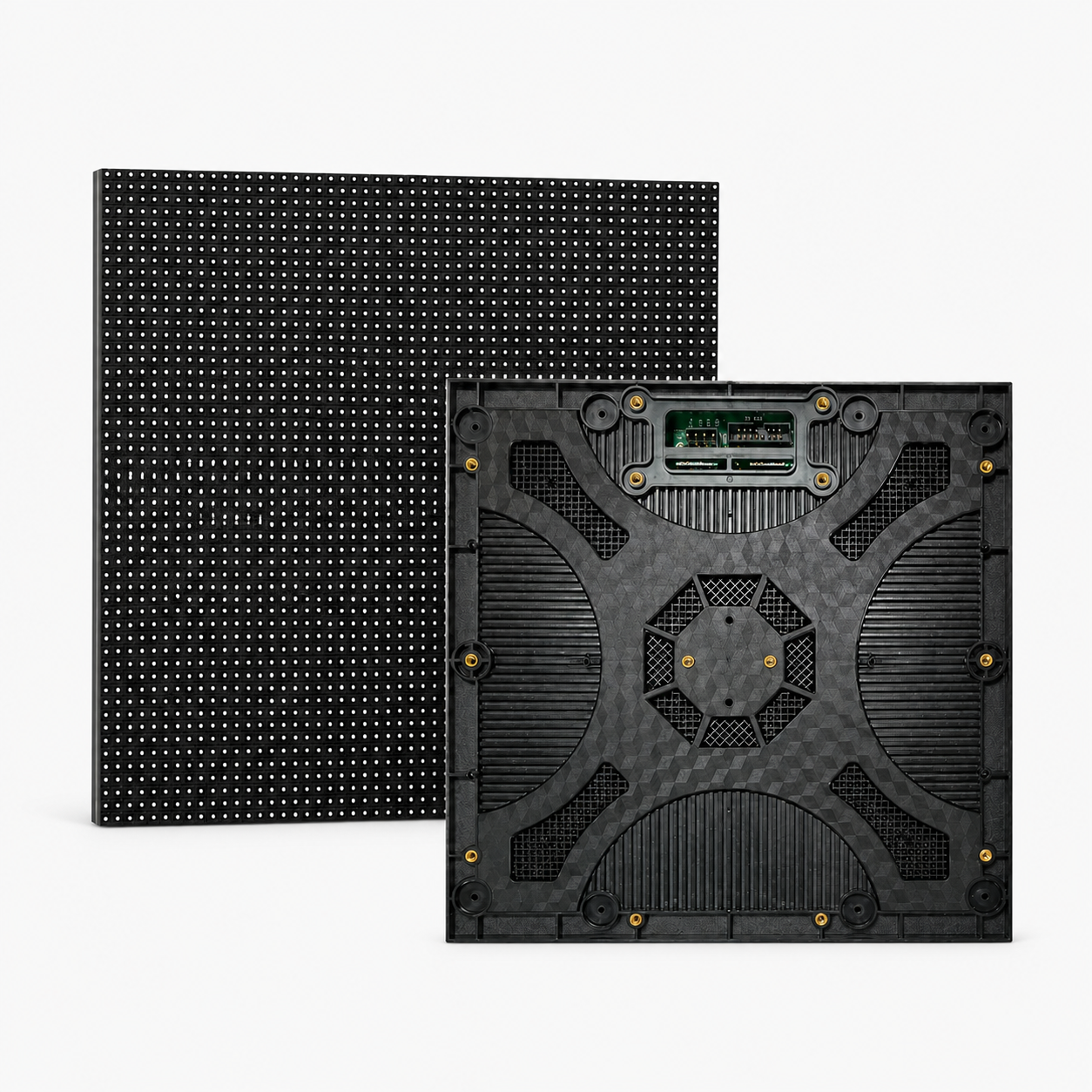

IncludedLED module1 pc

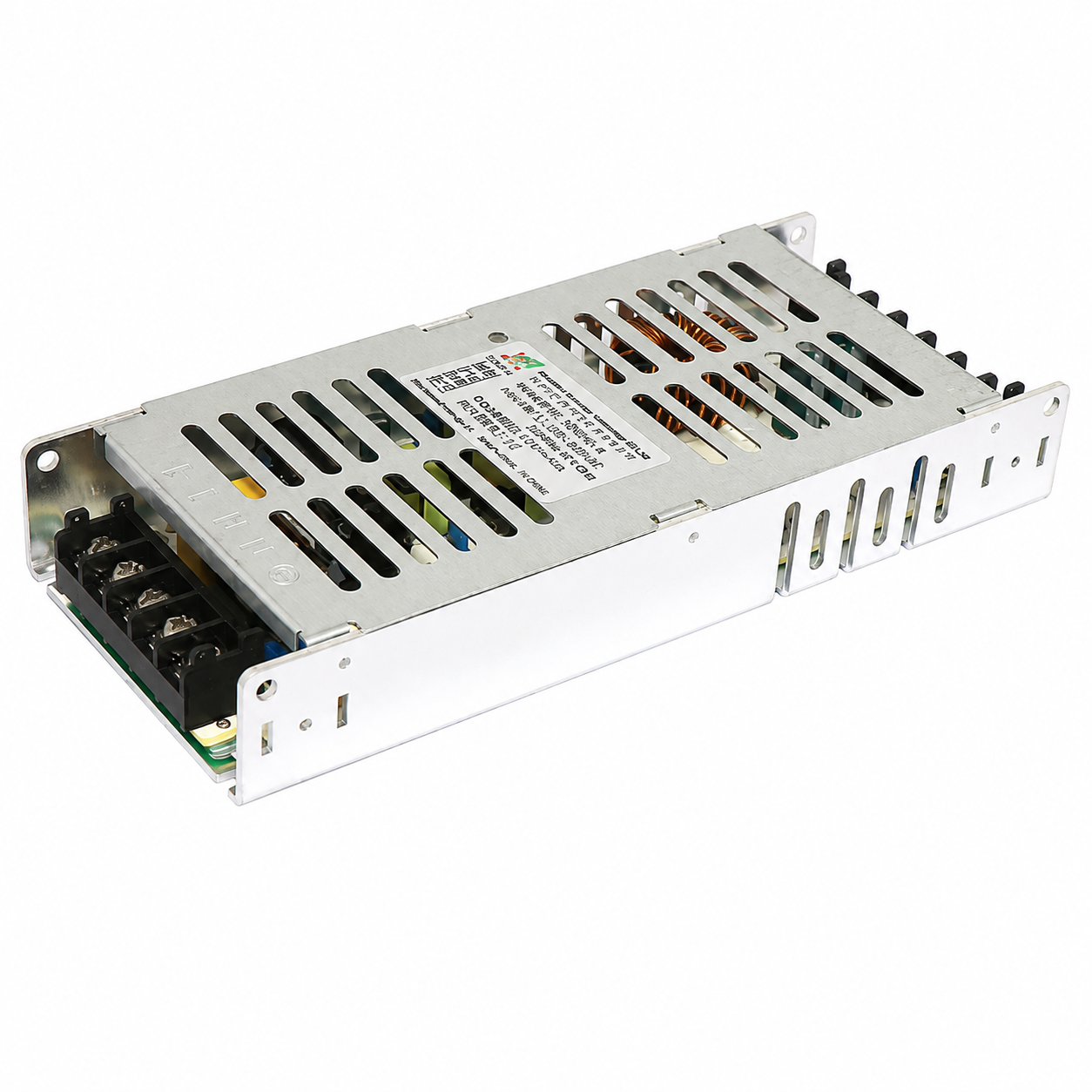

OptionalPower supply1 pc

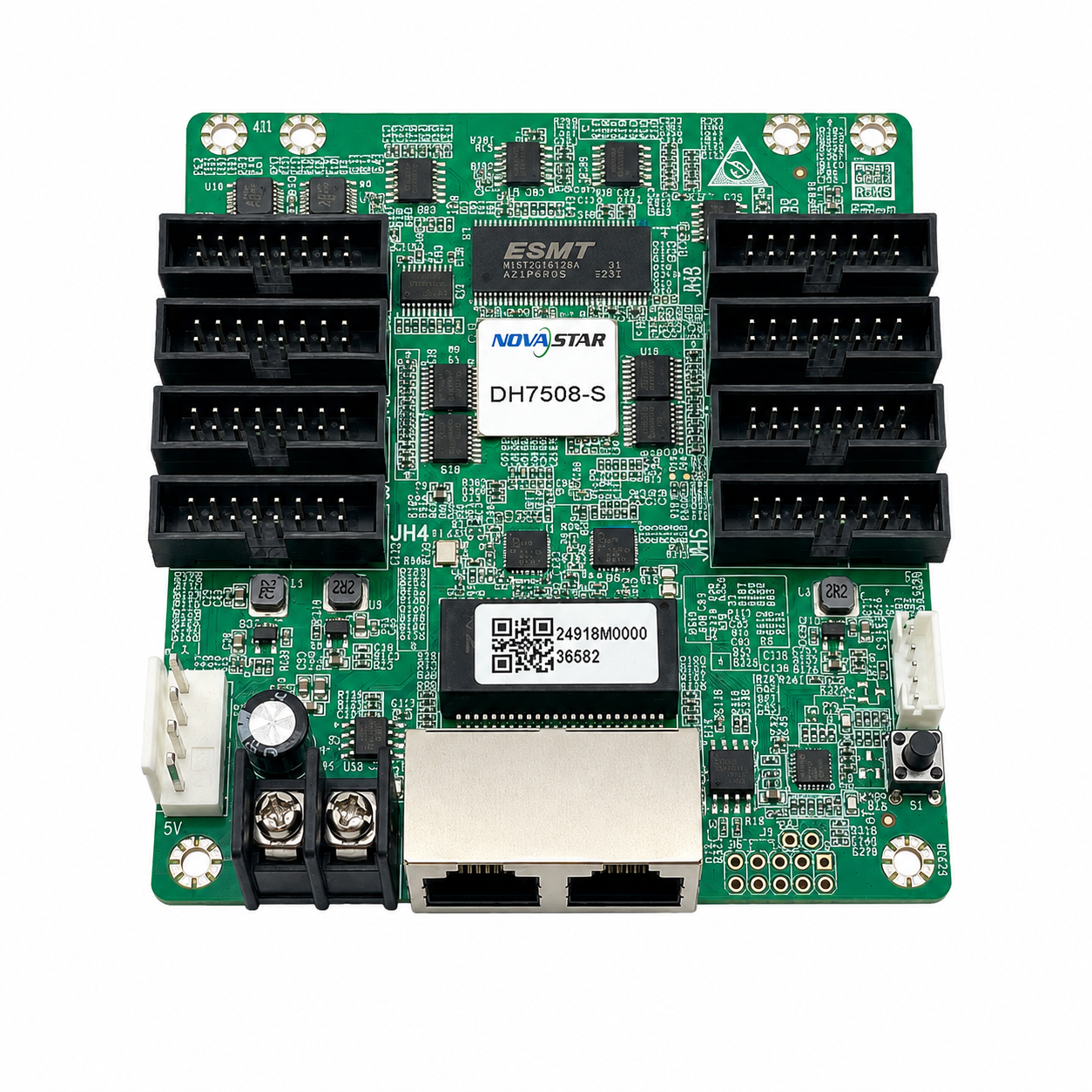

OptionalReceiving card1 pc
OptionalPERMANENT ORDER SUPPORT
Order loading files
Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.
YXC-P3.91-S500
QR · PRIVATE
Order-specific loading and configuration files are available only through the QR code supplied with your order.
▦ QR · PRIVATEAsk about order support →
