Verified product model

YXC-P2

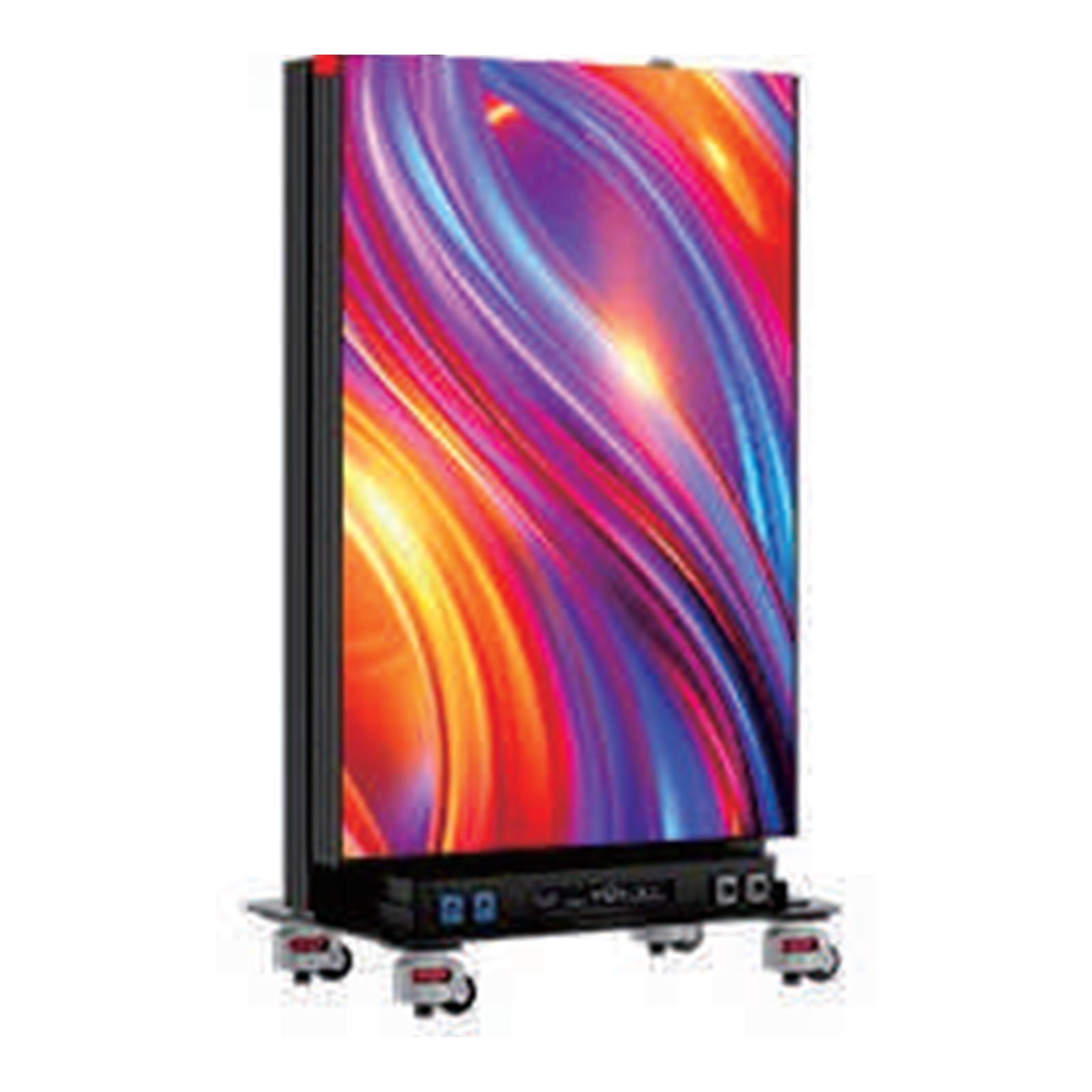

Foldable LED Poster Screen YXC-P2

Name: Foldable LED Poster Screen YXC-P2
Brand: Lucky Star
SKU: YXC-P2

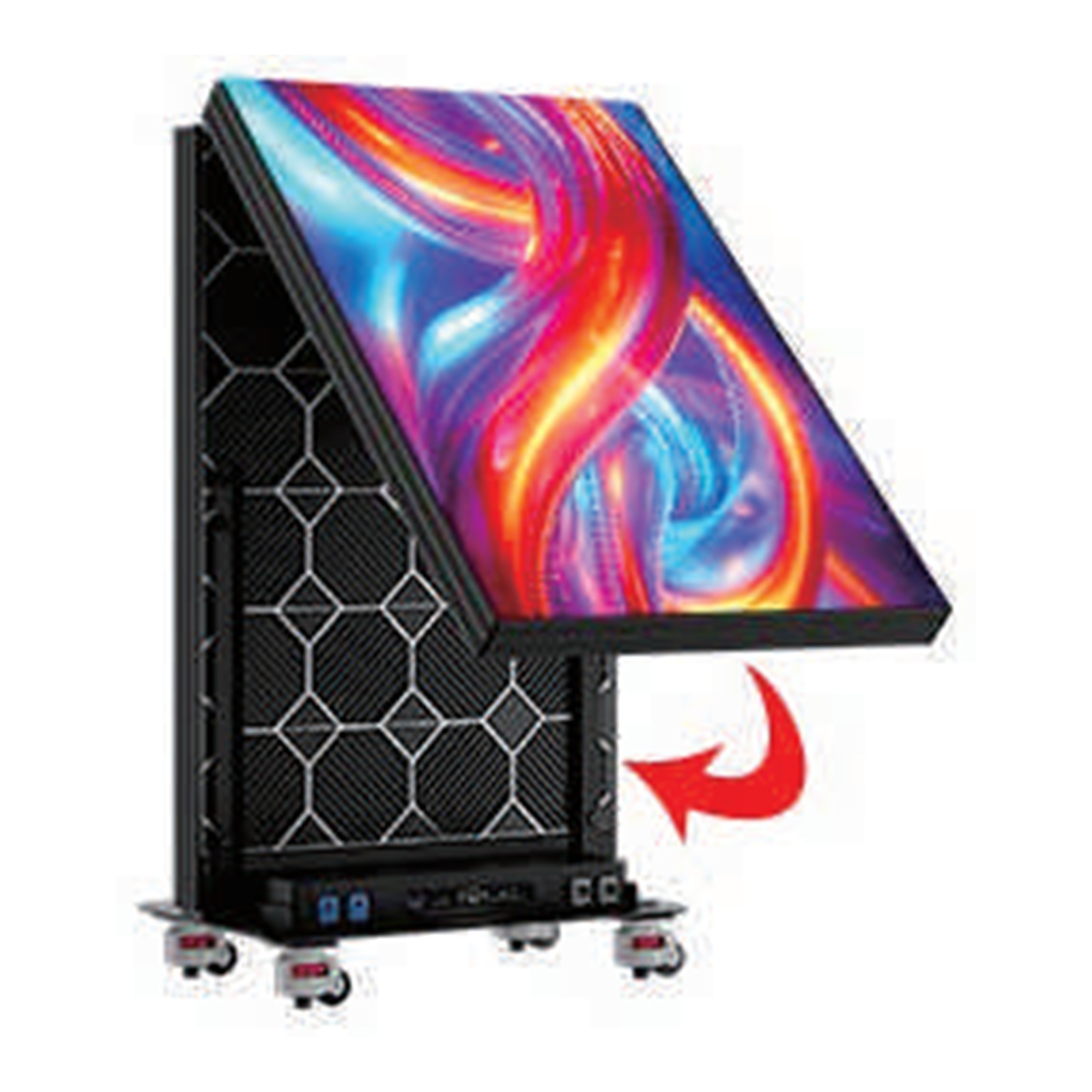

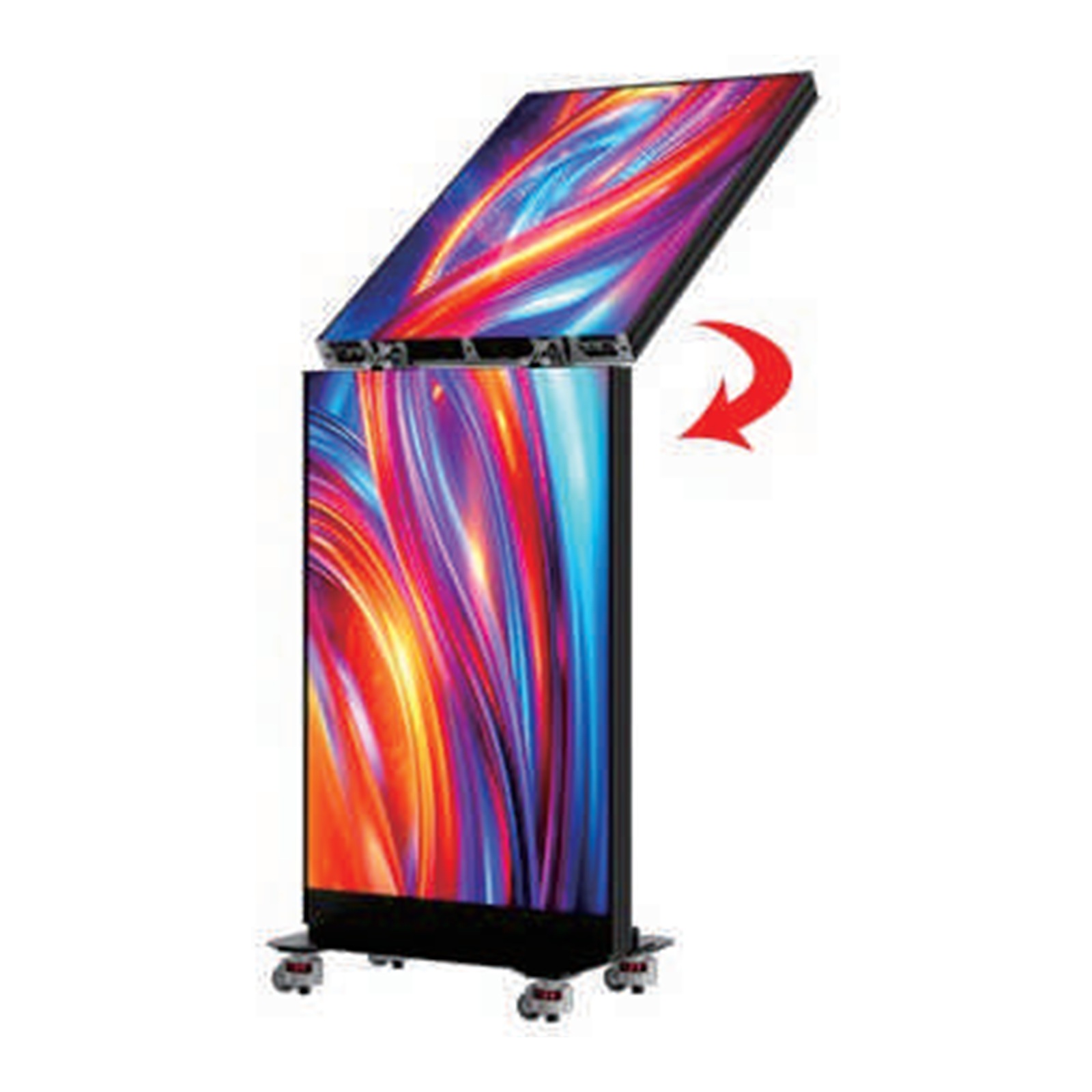

The Foldable LED Poster Screen YXC-P2 features a foldable structure for easy transport and installation, supporting intelligent cloud management and seamless multi-screen splicing. It can be used individually as an advertising poster display or combined into a large video wall. Ideal for shopping malls, brand stores, hotels, exhibition halls, advertising agencies, exhibition service providers, and rental companies for window advertisements, promotional displays, exhibition presentations, event information broadcasting, and large video wall displays.

BUILT FOR

Live eventsRental fleetsHouses of worshipRetail storesSports venuesCorporate events

PUBLIC RESOURCES & CONTROL FILES

PDFFoldable_LED_Poster_Product_Specification.pdf↓

PROJECT SUPPORTGet a Quote→ORDER ACCESSOrder loading filesQR →

Watch videos Specifications

PRODUCT IN MOTION

Short product videos

YXC-P2Foldable LED Poster Screen YXC-P2

CURRENT PRODUCTProduct demonstration

Specifications

ModelP1.25P1.53P1.86P2P2.5

Pixel PitchP1.25mm1.53mm1.86mmP2mm2.5mm

LED PackageCOB / GOB / HOB / SMDCOB / GOB / HOB / SMDCOB / GOB / HOB / SMDGOB / HOB / SMDGOB / HOB / SMD

Module Resolution256 × 128 pixels208 × 104 pixels172 × 86 pixels160 × 80 pixels128 × 64 pixels

Module Dimension320 × 160 mm320 × 160 mm320 × 160 mm320 × 160 mm320 × 160 mm

Display Dimension640 × 1920 mm640 × 1920 mm640 × 1920 mm640 × 1920 mm640 × 1920 mm

Module Arrangement2 × 122 × 122 × 122 × 122 × 12

Cabinet Flatness≤ 0.1 mm≤ 0.1 mm≤ 0.1 mm≤ 0.1 mm≤ 0.1 mm

Cabinet Dimensions640 × 480 mm640 × 480 mm640 × 480 mm640 × 480 mm640 × 480 mm

Weight≤ 57.5 kg≤ 57.5 kg≤ 57.5 kg≤ 57.5 kg≤ 57.5 kg

ServiceabilityFront-accessFront-accessFront-accessFront-accessFront-access

Physical Density640,000 dots/m²422,500 dots/m²289,050 dots/m²250,000 dots/m²160,000 dots/m²

Brightness600–800 cd/m² (adjustable)

Viewing Angle140° / 140°

Screen Flatness≥ 98%

Chromaticity Uniformity±0.003

Contrast Ratio5,000:1

IP RatingIP43

Color Depth14–16 bit

Driving Mode1/43S

Refresh Rate≥ 3,840 Hz

Color Temperature2,000K–9,500K (adjustable)

Input VoltageAC 110V–240V, 50/60Hz

Max. Power Consumption≤ 600 W/m²

Ave. Power Consumption160–265 W/m²

MTBF≥ 10,000 hrs

Operating Temperature-10°C to +60°C

Operating Humidity30%–75% RH (no condensation)

CLEAR QUOTATION

What is included

The standard package contents below are included unless your quotation states otherwise. Optional items are clearly marked.

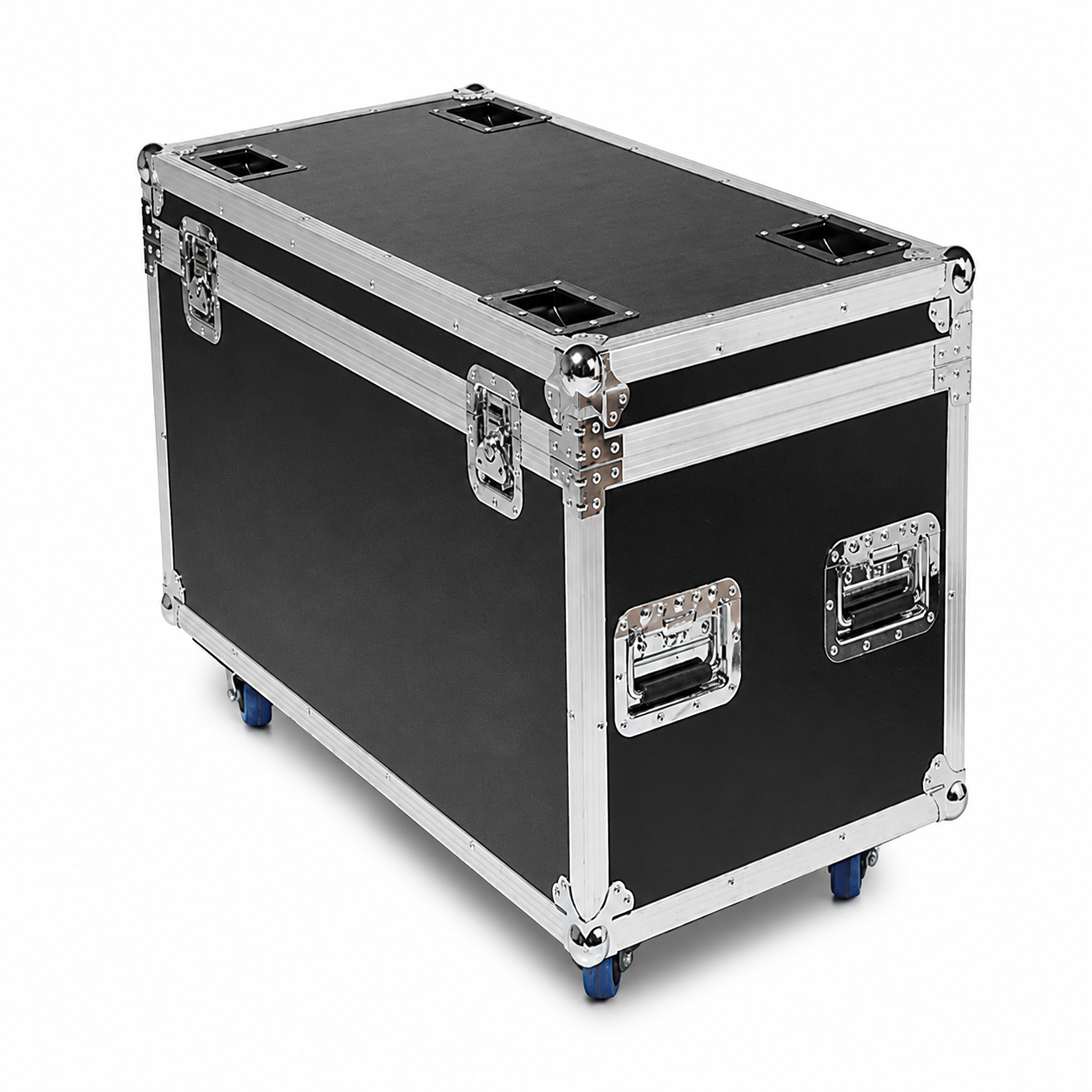

Flight case1 pc

Optional YXC-P2 Flight case

✓

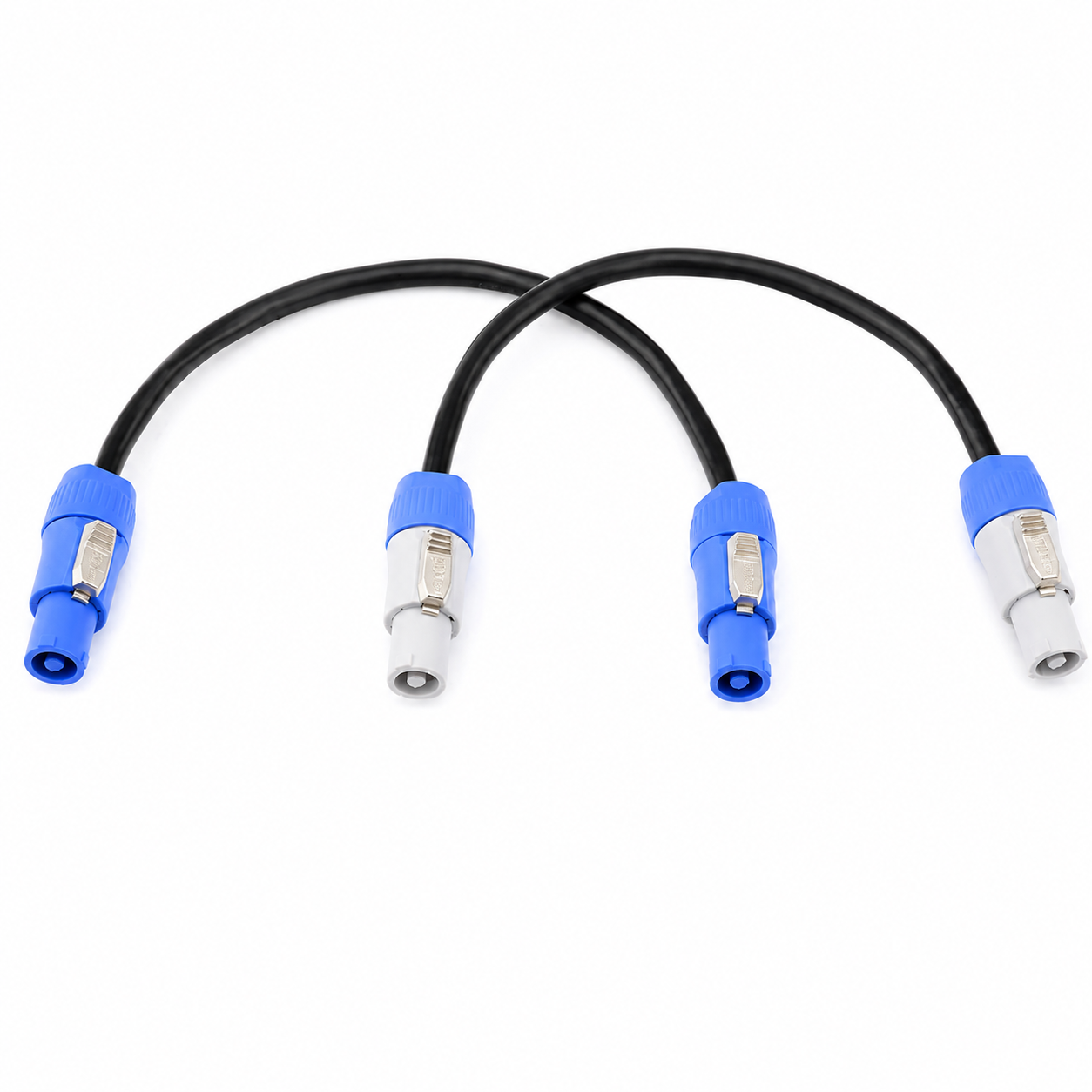

Power cable1 pc

Included YXC-P2 Power cable

✓

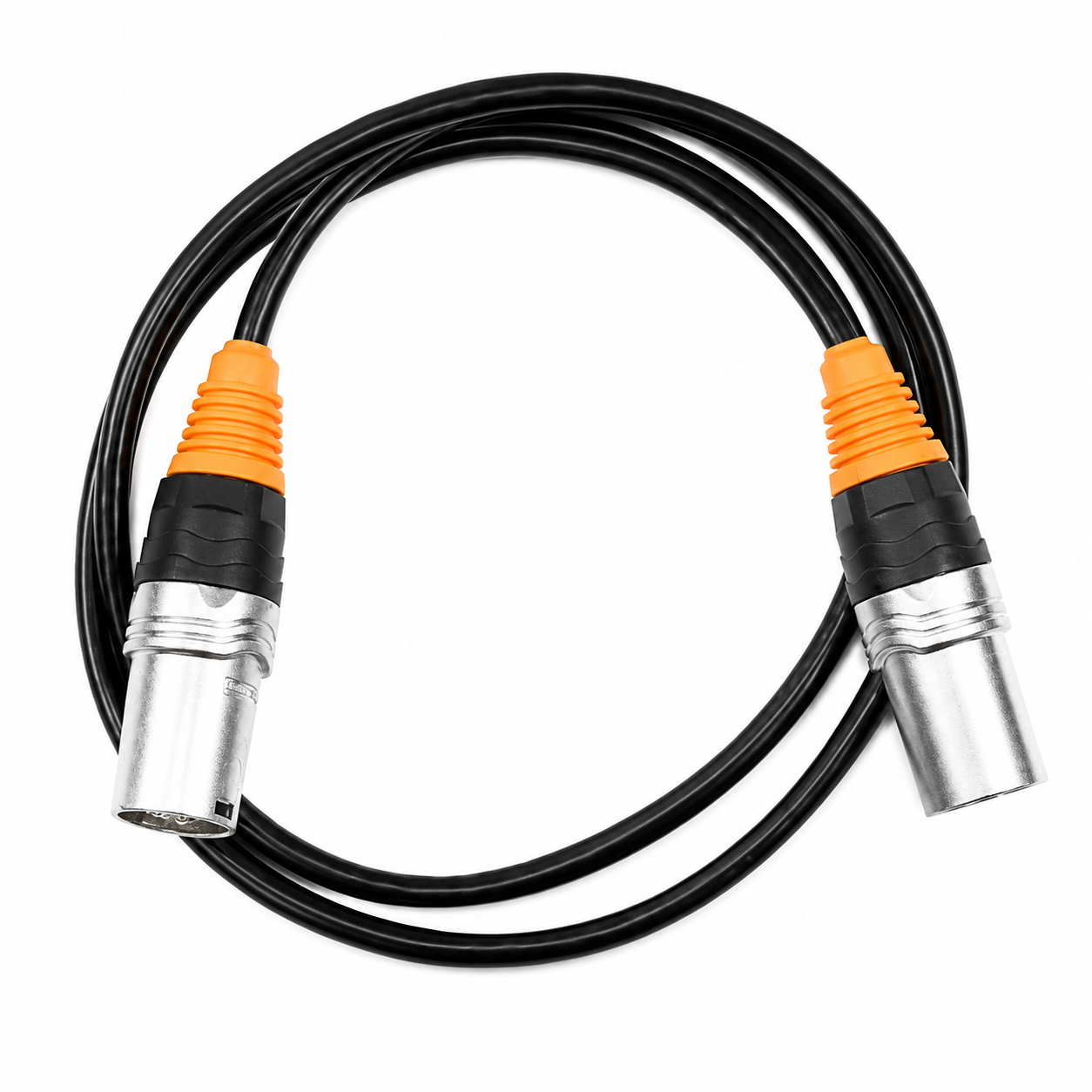

LED network signal cable1 pc

Included YXC-P2 LED network signal cable

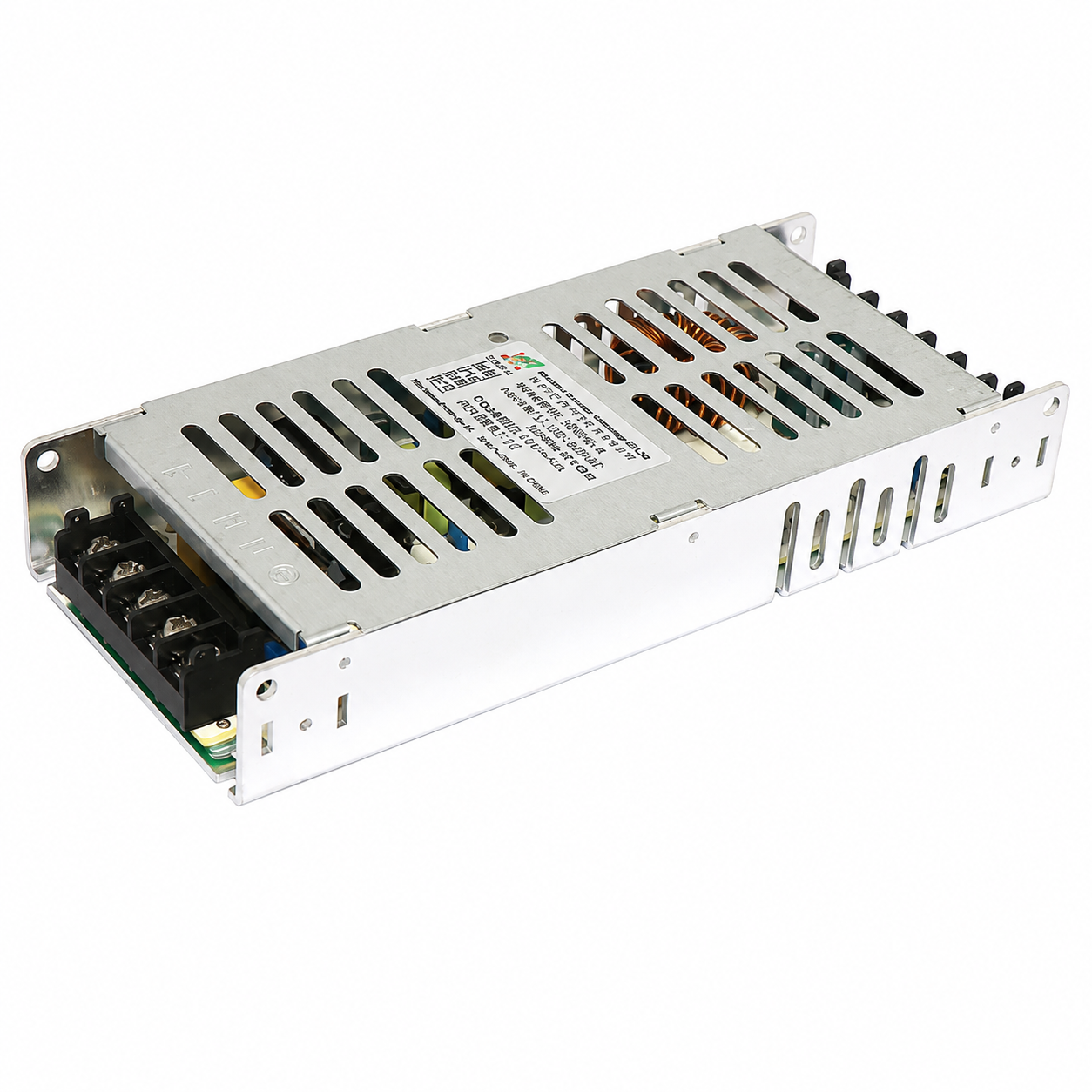

Power supply1 pc

Optional YXC-P2 Power supply

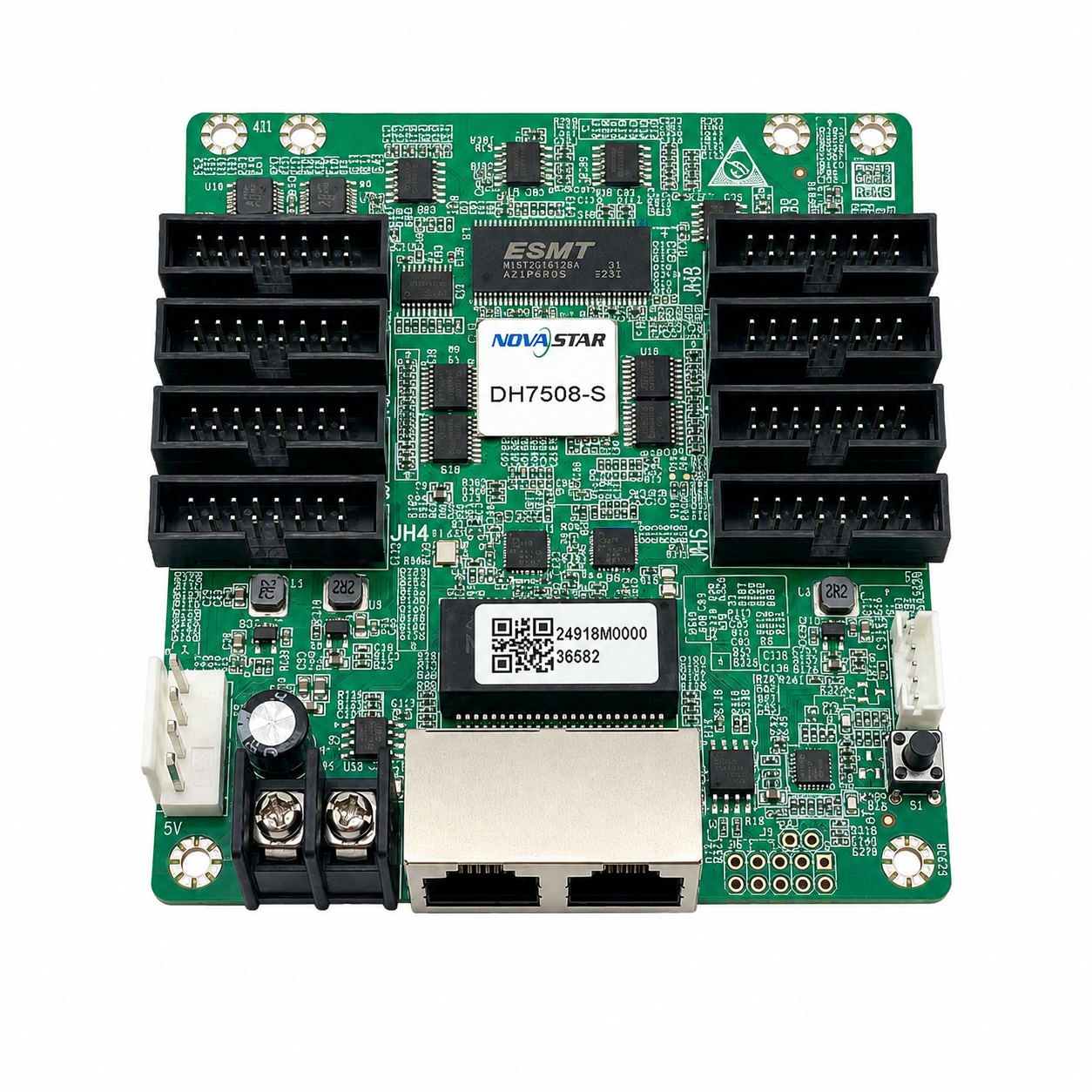

Receiving card1 pc

Optional YXC-P2 Receiving card

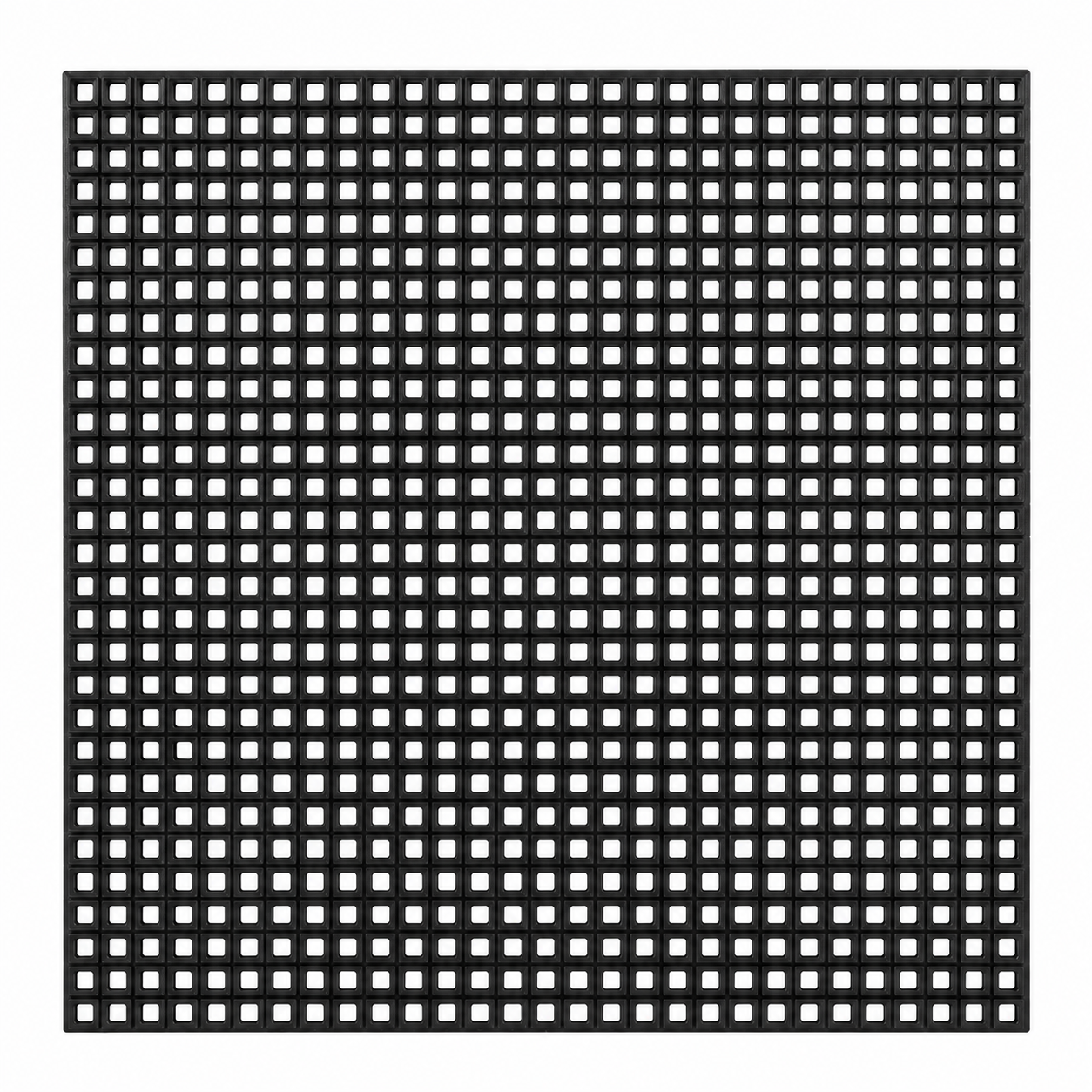

LED module mask1 pc

Optional YXC-P2 LED module mask

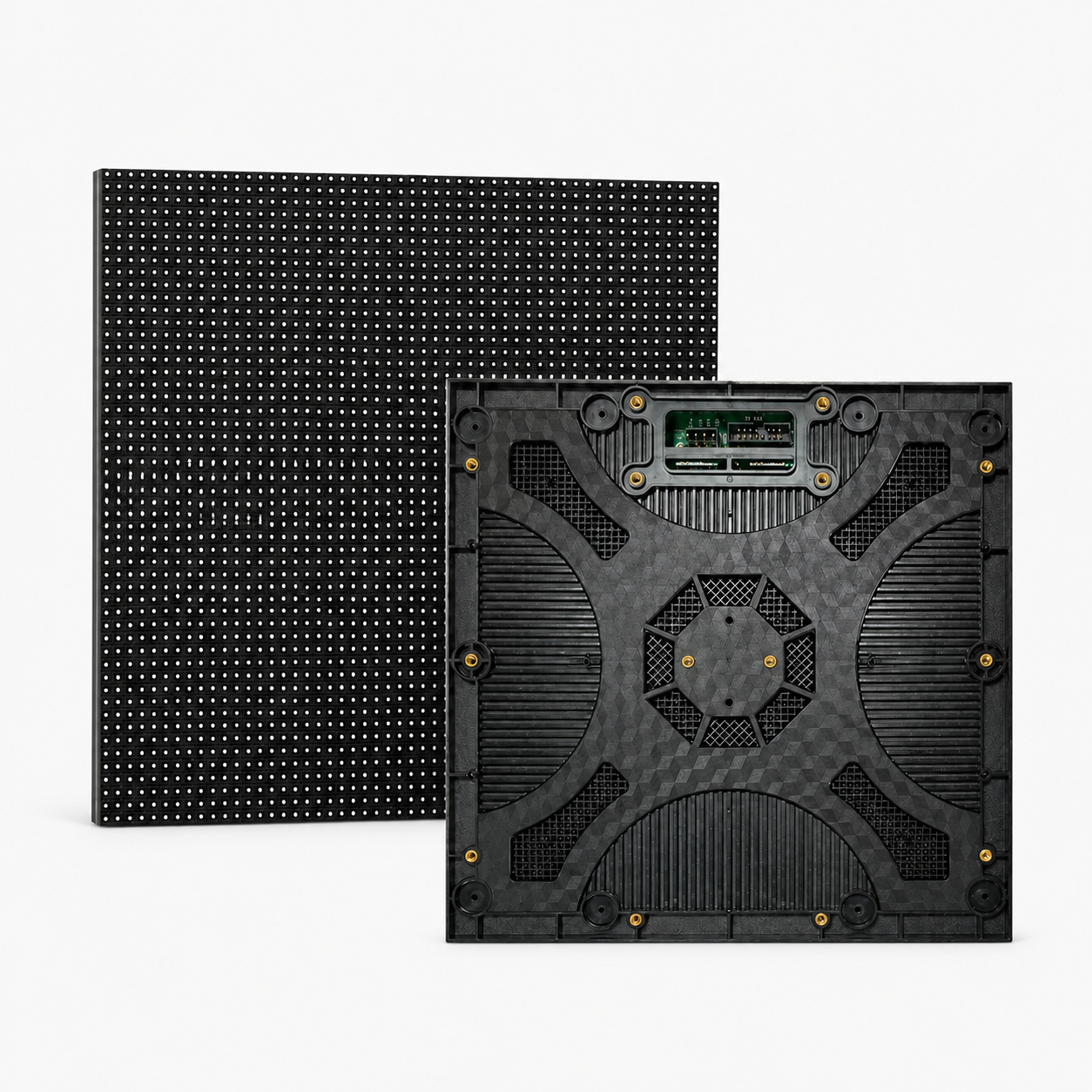

LED module1 pc

Optional YXC-P2 LED module

PERMANENT ORDER SUPPORT

Order loading files

Loading files, receiver-card configurations, DSP presets and wiring files are protected by order. Scan the permanent QR code on the flight case to retrieve the correct files—even years later.

1Scan the QR code on the flight case

YXC-P2

2Open the permanent order page

QR · PRIVATE

3Download the exact files for that batch

Order-specific loading and configuration files are available only through the QR code supplied with your order.
